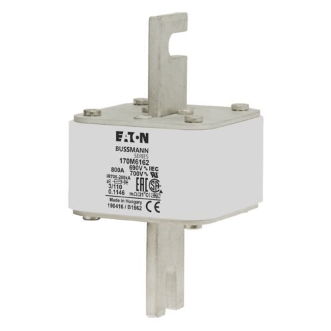

Eaton Bussmann 170M6162 / 5996516018026 High Speed Square Body Fuse, 800A, 690V AC
Regular price
$150.00 USD
Regular price
Sale price
$150.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Eaton Bussmann 170M6162 is a high-performance square body fuse engineered for the protection of power semiconductors, DC common bus systems, and power converters. This Size 3 bolted tag fuse features a high breaking capacity and low I²t let-through, ensuring robust electrical protection in demanding industrial automation environments.
| Product ID (MPN) | 170M6162 |
| EAN | 5996516018026 |
| Amperage Rating | 800 A |
| Voltage Rating | 690 V (IEC), 700 V (UL) |
| Breaking Capacity | 200 kA |
| Utilization Category | aR (Accompanied semiconductor protection) |
| Construction Size | Size 3 |
| Fuse Shape | Square body, slotted center bolted tags |
| Center-to-Center Distance | 108 mm |
| Mounting Dimension | M10 |
| Indicator Type | Top fuse status indicator |
| Watt Losses | 115 W |
| Clearing (I2T) | 465000 at 660 V |
