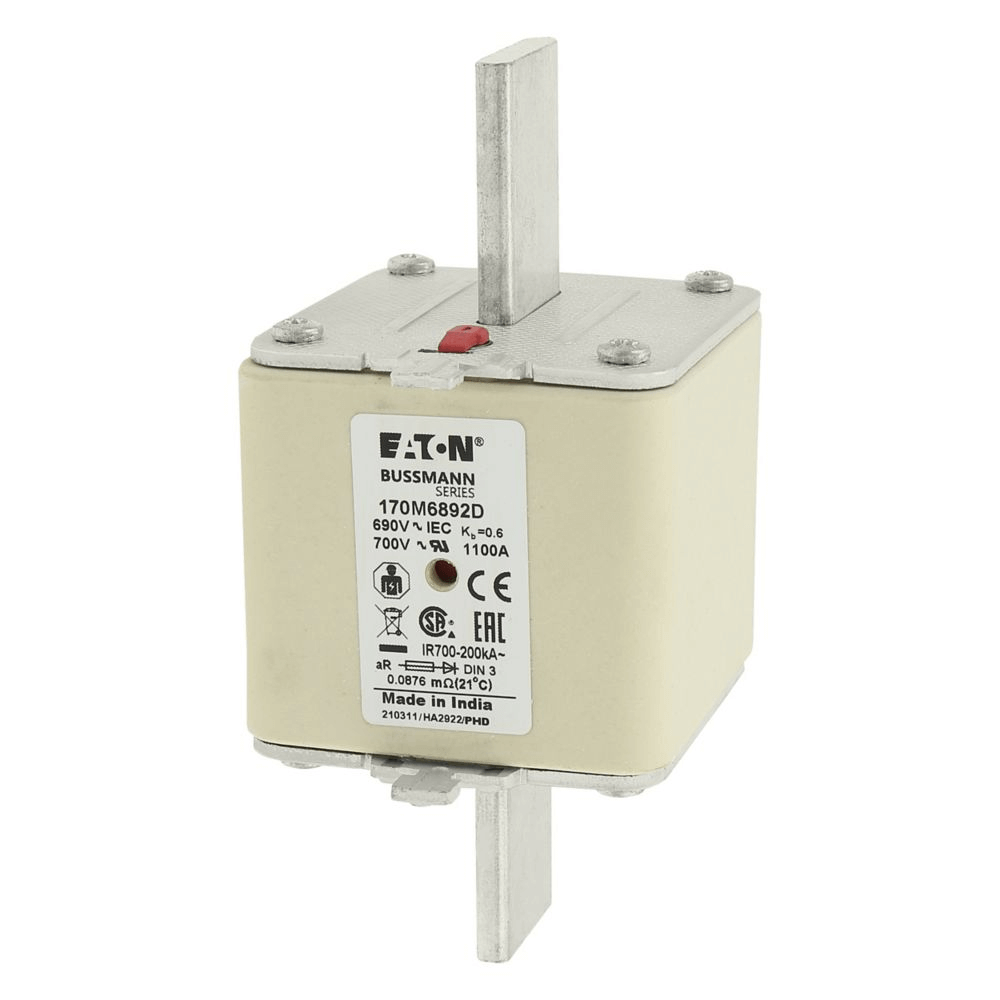

Eaton Bussmann 170M6892D High Speed Fuse, 1100A 690V AC, Size 3 Square Body, DIN 43620 Dual Indicator - Pack of 6
Regular price
$427.00 USD
Regular price
Sale price
$427.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview
The Eaton Bussmann 170M6892D is a high speed square body fuse for semiconductor protection. Rated 1100 A at up to 690 V AC (IEC) / 700 V (UL), it features dual indication and DIN 43‑620 blade ends in a DIN size 3 body. Suitable for DC common bus, DC drives, and power converters/rectifiers. Sold as a pack of 6.
Key Features
- High speed aR fuse for semiconductor protection
- Dual fuse status indicator; square body with knife blade contacts
- DIN 43620 bladed, size 3; DIN 43‑620 blade end x blade end
- Very high interrupt rating: 200 kA
- Compliances: CE, RoHS; Certifications: UL Recognized, IEC rated
Applications
- Semiconductor protection
- DC common bus and DC drives
- Power converters / rectifiers
Specifications
| Brand / Series | Eaton Bussmann series high speed square body fuse |
| Catalog Number (MPN) | 170M6892D |
| Utilization Category | aR (semiconductor protection) |
| Rated Current | 1100 A |
| Rated Voltage | 690 V AC (IEC); 700 V (UL) |
| Breaking Capacity | 200 kA |
| Pre‑arcing I²t | 190,000 A²s |
| Clearing I²t | 1,400,000 A²s at 660 V |
| Power Loss (Watts) | 57 W |
| Body / Termination | Square body, knife blade contacts; DIN 43‑620 blade end x blade end |
| Size / Construction | DIN size 3 (DIN 43620 bladed) |
| Indicators | Dual indicator; combination fuse status indicator |
| Dimensions (L × W × H) | 150 × 71 × 87 mm |
| Weight | 1112 g |
| Standards / Ratings | IEC rated; UL Recognized; IEC 60269; CE Marked; RoHS Compliant |
| Pack Size | 6 pieces |
