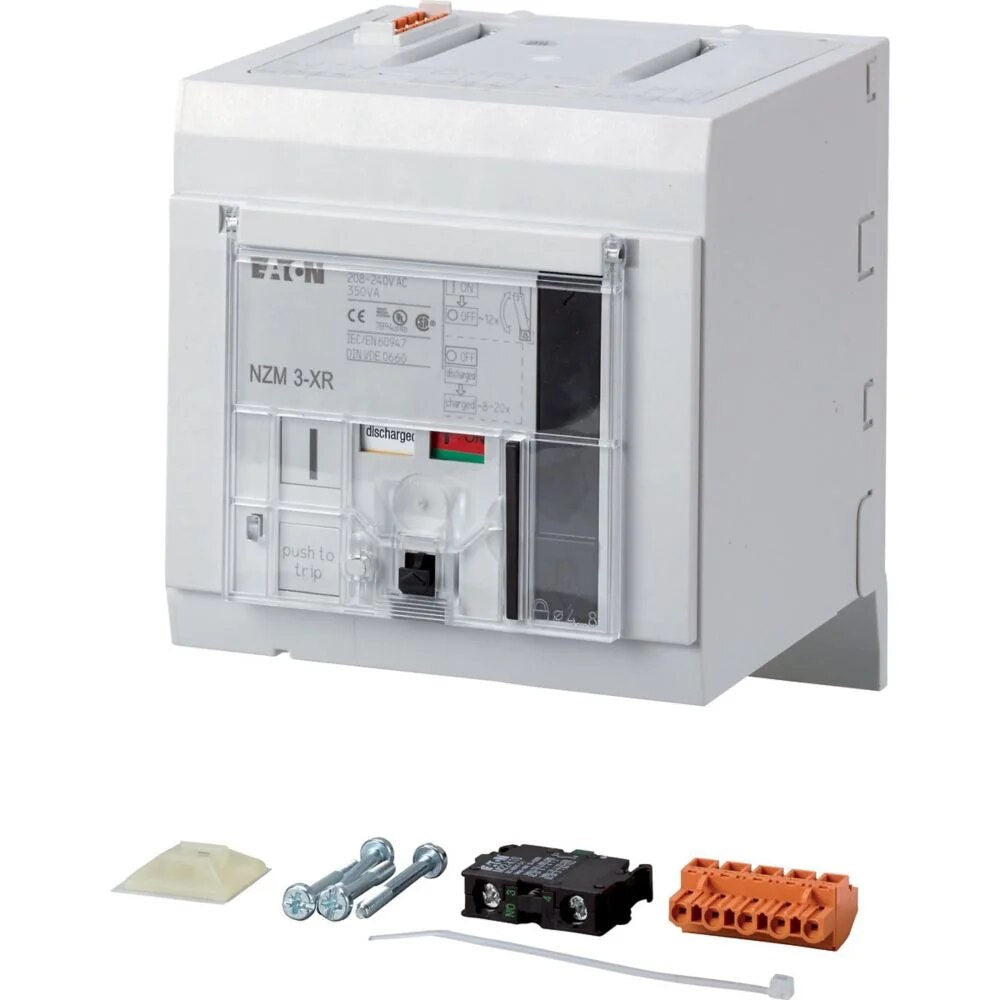

Eaton NZM3-XR208-240AC — NZM3 Frame Remote Operator (Accessory), 208–240 VAC Remote Operator for NZM Series (Frame J–K), Front/Remote Actuation

The Eaton NZM3-XR208-240AC is a remote operator accessory engineered for Eaton NZM series molded case circuit breakers (NZM3, frame J–K). Designed for remote actuation of the breaker from a 208–240 VAC control supply, this compact operator enables local front and remote trip/close functionality when integrated with compatible NZM3 breakers and accessory interfaces.

Key specifications

• Manufacturer: Eaton
• Series / Compatibility: NZM Series — NZM3 (Frame J–K) compatible remote operator accessory
• Catalog number / Part no.: NZM3-XR208-240AC
• Product type: Molded case circuit breaker accessory — Remote operator
• Control supply voltage: 208–240 V AC
• Mounting / interface: Designed to mount and interface with Eaton NZM3 frame breakers (verify model compatibility and mounting orientation per Eaton accessory instructions)
• Dimensions (W x H x D): 1.378 in x 1.378 in x 1.378 in (approx.)
• Weight: 6.956 lb
• Typical function: Remote trip/close (remote operator) enabling breaker operation from a remote control circuit or integrated control cabinet
• Intended use: Retrofit or new installations where remote electrical actuation of NZM3 breakers is required; use with appropriate control wiring, auxiliary contacts and shunt trip/close accessories as specified by Eaton

Features & benefits

• Enables remote actuation of Eaton NZM3 breakers using a 208–240 VAC control supply.
• Compact form factor for minimal panel footprint.
• Designed for direct compatibility with NZM3 (Frame J–K) accessory interfaces—supports integration with motor drives, auxiliary contacts and control schemes.
• Facilitates centralized/distributed control and automation of protective devices.

Installation & safety notes

• Confirm mechanical and electrical compatibility with the target NZM3 breaker (frame J–K) and applicable accessory slots before installation.
• Follow Eaton accessory installation instructions and wiring diagrams for correct terminal connections, control supply wiring and recommended protective devices.
• Ensure compliance with local electrical codes and safe isolation practices prior to installation or maintenance.

Documentation & support

• For full installation instructions, wiring diagrams and compatibility matrix, consult Eaton NZM series accessory documentation or Eaton technical support.
