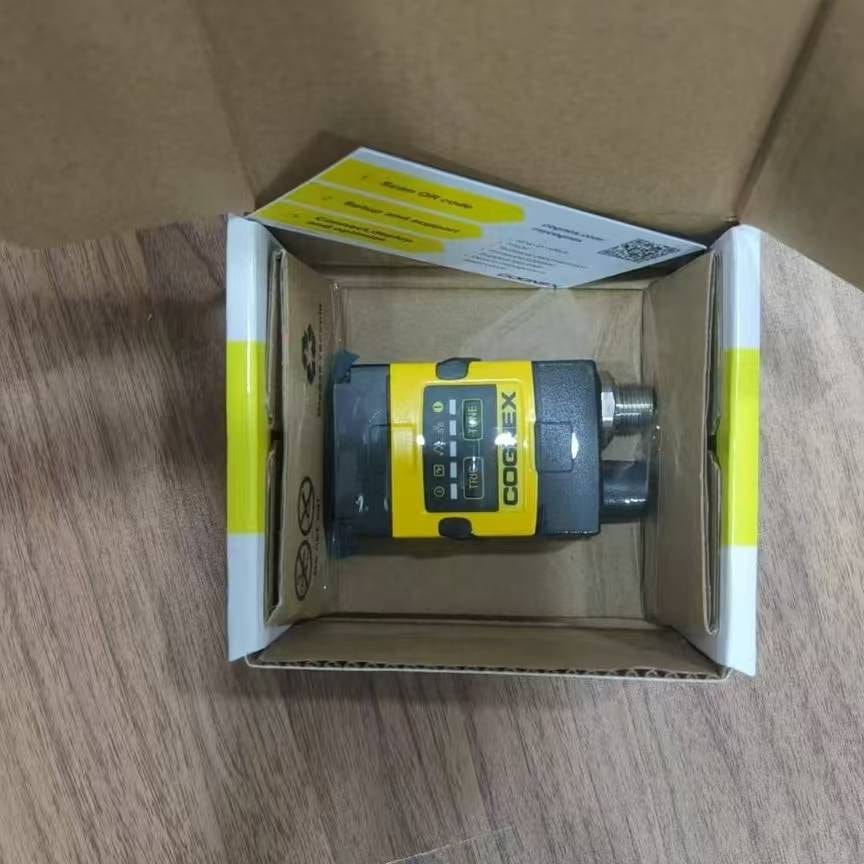

Cognex DMR-262X-1120-F DataMan 260 Series 1D/2D Fixed-Mount Barcode Reader/Scanner, 1.2 MP 45 fps
Regular price
$700.00 USD
Regular price
Sale price
$700.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Cognex DMR-262X-1120-F is a compact, fixed-mount barcode reader from the DataMan 260 series, engineered for high-speed decoding of challenging 1D and 2D codes. Equipped with a 1.2 MP global-shutter CMOS sensor, a 6.2 mm f/5 liquid lens, and fully-polarized red LED illumination, it delivers reliable performance at up to 45 fps in industrial environments.
- 1280 × 960 px (1/3" CMOS) global-shutter sensor
- 6.2 mm f/5 liquid lens with S-mount
- Fully-polarized high-power red LED illumination; dual green aimers
- 1 trigger input, 1 isolated opto-coupled input, 4 isolated opto-coupled outputs
- RS-232 and Ethernet communication via M12 connectors
- IP65 aluminium housing; 0 … +40 °C operating range
| Product ID | DMR-262X-1120-F |
| Extended Product Type | 1D / 2D fixed-mount barcode reader / scanner |
| Brand | Cognex |
| Series / Family | DataMan 260 |
| Sensor Resolution | 1280 × 960 px (1.2 MP) |
| Refresh Rate | 45 fps |
| Lens | 6.2 mm f/5 liquid lens (S-mount) |
| Illumination | Fully-polarized red LED |
| Supply Voltage | 24 V DC |
| Sensing Distance | 50 … 200 mm |
| Digital Inputs | 1 × 12–28 V DC trigger, 1 × 8–24 V DC opto-coupled |
| Digital Outputs | 4 × 28 V DC 50 mA sink/source opto-coupled |
| Communication | RS-232, Ethernet |
| Connectors | 12-pin M12 male (Ethernet), 8-pin M12 female (Power) |
| Protection Rating | IP65 |
| Material | Aluminium |
| Dimensions (H × W × D) | 22 mm × 42.5 mm × 76.1 mm |
| Operating Temperature | 0 … +40 °C |
| Storage Temperature | −10 … +60 °C |
| Compliance | CE, UL, cUL, C-Tick, RoHS, IEC60068-2-27/-6, EN60950, EN55022/24, ICES003, J55022 |
