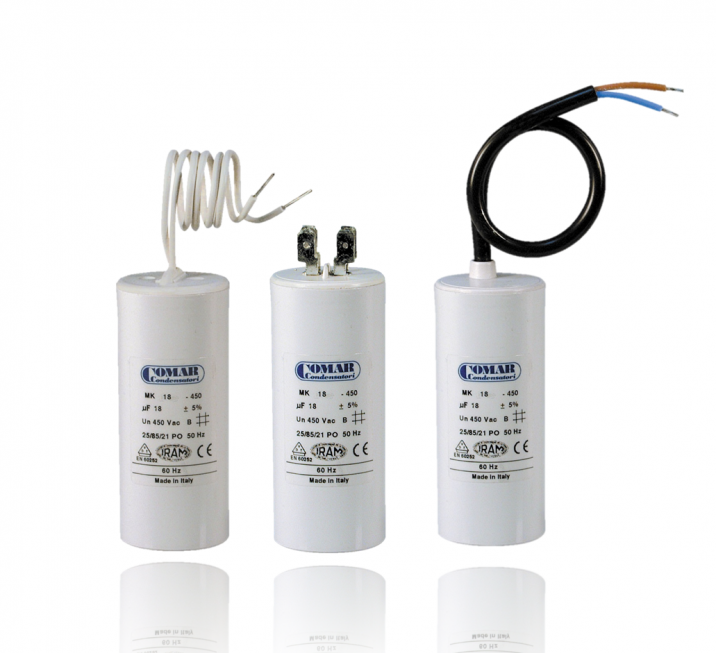

COMAR MKA 450-40 MKA 450 Series Motor Run Capacitor, 40µF, 450VAC
Regular price
$60.00 USD
Regular price
Sale price
$60.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The COMAR MKA 450-40 is a high-capacity motor run capacitor engineered for heavy-duty industrial applications requiring reliable phase-shifting and torque maintenance. Utilizing self-healing metallized polypropylene (MKP) dielectric technology, this 40µF component is ideal for large single-phase motors in compressors, industrial pumps, and ventilation systems, providing exceptional electrical life and low dissipation factors.
| Product ID (MPN) | MKA 450-40 |
| Capacitance | 40 µF |
| Rated Voltage | 450 VAC |
| Rated Frequency | 50 / 60 Hz |
| Capacitance Tolerance | ± 5% |
| Operating Class | 400 V – Class B (10000 h) / 450 V – Class C (3000 h) |
| Dielectric Material | Self-healing Metallized Polypropylene (MKP) |
| Dimensions (D x H) | 45 x 94 mm |
| Housing Type | Self-extinguishing (V2) Plastic case |
| Safety Class | S0 |
| Standard Compliance | EN 60252-1; VDE 0560-8 |
