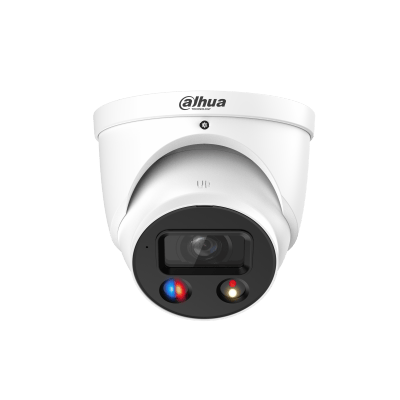

Dahua DH-IPC-HDW3849H-AS-PV Network Camera, 8MP, 2.8/3.6 mm
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Dahua DH-IPC-HDW3849H-AS-PV is an 8MP Smart Dual Illumination Active Deterrence fixed-focal eyeball WizSense network camera for the 3849-PV-S5 series. The official S5 specification lists two fixed-focal lens options, 2.8 mm and 3.6 mm, with different fields of view, close-focus distances, and DORI distances for procurement and technical comparison.
| Model | DH-IPC-HDW3849H-AS-PV |
| Series | 3849-PV-S5 |
| Image Sensor | 1/2.7" CMOS |
| Max. Resolution | 3840 × 2160 |
| Lens Type | Fixed-focal, M12 mount |
| Focal Length | 2.8 mm; 3.6 mm |
| Field of View | 2.8 mm: H 106°, V 55°, D 125°; 3.6 mm: H 85°, V 45°, D 102° |
| Close Focus Distance | 2.8 mm: 1.5 m; 3.6 mm: 2.2 m |
| DORI Distance | 2.8 mm: Detect 66.0 m, Observe 26.4 m, Recognize 13.2 m, Identify 6.6 m; 3.6 mm: Detect 78.0 m, Observe 22.2 m, Recognize 15.6 m, Identify 7.8 m |
| Max. Aperture | F1.0 |
| Illumination Distance | Up to 30 m IR; up to 30 m warm light |
| WDR | 120 dB |
| Storage | Micro SD card up to 512 GB; FTP; SFTP; NAS |
| Power Supply | 12 VDC; PoE |
| Protection | IP67 |
Typical applications include perimeter monitoring and outdoor surveillance scenarios using intrusion, tripwire, stay detection, loitering detection, SMD 4.0, and sound-and-light active deterrence functions.
Apexon Supply provides B2B sourcing, replacement sourcing, procurement review, and technical alignment support for this Dahua network camera. Buyers should confirm the required 2.8 mm or 3.6 mm lens option against the intended field of view and installation requirements.
Request a B2B quote for Dahua DH-IPC-HDW3849H-AS-PV by submitting the required quantity and specifying either the 2.8 mm or 3.6 mm lens option.
