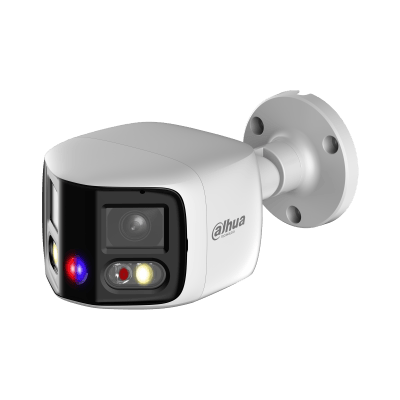

Dahua DH-IPC-PFW3849S-A180-AS-PV Bullet Network Camera, 8 MP, 180°
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Dahua DH-IPC-PFW3849S-A180-AS-PV is a 2x4MP TiOC Duo Splicing fixed-focal bullet WizSense network camera that outputs a 180° wide-angle splicing image. It supports a maximum 8 MP resolution of 4096 × 1860 at up to 20 fps.
| Model | DH-IPC-PFW3849S-A180-AS-PV |
| Image Sensor | Dual 1/2.7" CMOS |
| Maximum Resolution | 4096 × 1860 |
| Main Stream | 4096 × 1860 at 1–20 fps |
| Focal Length | 2.8 mm |
| Field of View | Horizontal: 180°; Vertical: 86° |
| Illumination Distance | Up to 25 m IR; up to 20 m warm light |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG |
| SMD | SMD 4.0 |
| Audio | Built-in dual microphone and built-in speaker |
| Storage | MicroSD card support up to 512 GB |
| Power Supply | 12 VDC (±30%); PoE (802.3af) |
| Protection | IP67 |
The manufacturer notes that the camera's wide-voltage design is widely applied to outdoor environments with unstable voltage.
The manufacturer identifies DH-IPC-PFW3849S-A180-AS-PV as an EOL model. Apexon Supply provides B2B replacement sourcing and technical alignment support for procurement teams seeking this network camera.
Request a B2B quote for Dahua DH-IPC-PFW3849S-A180-AS-PV by submitting the model number, required quantity and application requirements for procurement review.
