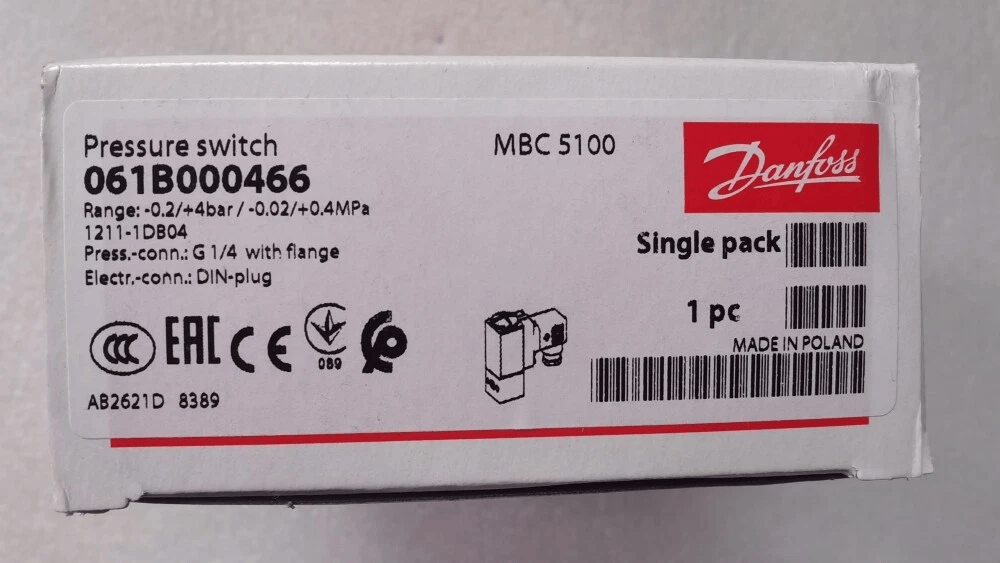

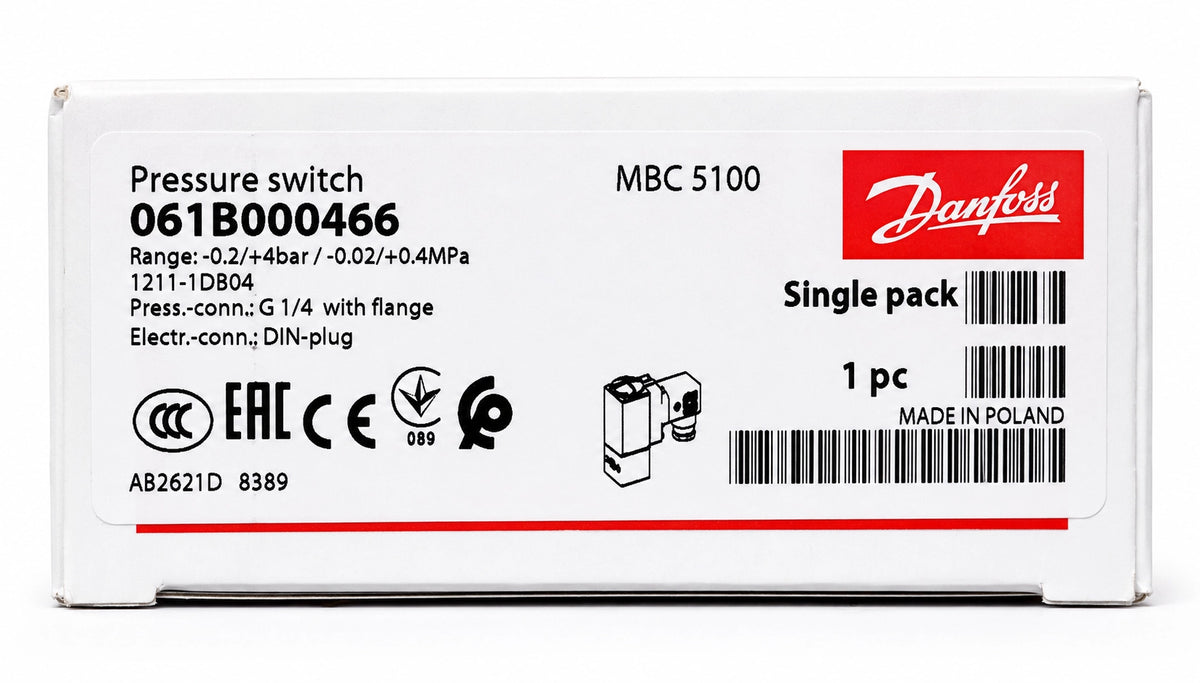

Danfoss 061B000466 MBC 5100 Pressure Switch, -0.20–4.00 bar, LP Bellows
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Danfoss 061B000466 is an MBC 5100 pressure switch with an LP bellows design and a -0.20–4.00 bar setting range. The exact MBC 5000 / MBC 5100 type is 1211-1DB04, with 15 bar permissible operating pressure and 30 bar minimum burst pressure.
| MBC 5100 ship approved code no. | 061B000466 |
| Type MBC 5000 / MBC 5100 | 1211-1DB04 |
| Low/High pressure (LP/HP) | LP bellows |
| Setting range Pe [bar] | -0.20–4.00 bar |
| Diff. at min. range Pe [bar] | 0.30 bar |
| Diff. at max. range Pe [bar] | 0.45 bar |
| Permissible operating pressure Pe [bar] | 15 bar |
| Min. burst pressure Pe [bar] | 30 bar |
MBC pressure switches are intended for alarm indication, shut down, control and diagnostics in industrial and marine applications including motors, gears, thrusters, pumps, filters and compressors.
Apexon Supply provides B2B sourcing and replacement support for Danfoss 061B000466, supporting procurement review, technical alignment and industrial maintenance requirements.
Submit Danfoss code number 061B000466, required quantity and application requirements for RFQ support. Most qualified RFQs receive a response or quote within 12 hours.
