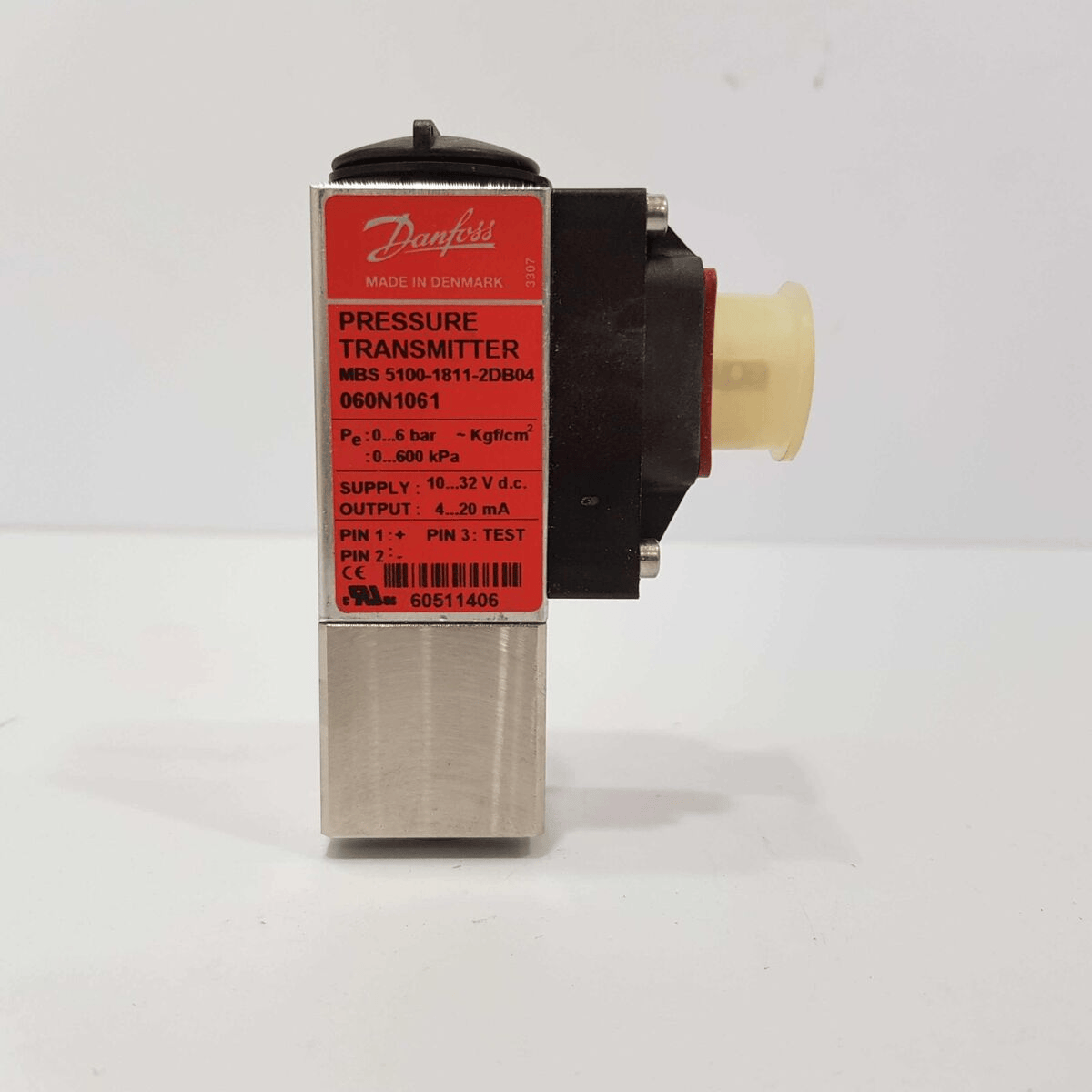

Danfoss 060N1061 Pressure Transmitter, 0–6 bar Gauge, 4–20 mA
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Danfoss 060N1061 is an MBS 5100 pressure transmitter with a 0–6 bar gauge (relative) measuring range and 4–20 mA current output. This configuration uses a G 1/4 female pressure connection with flange and an EN 175301-803-A M20 angular electrical connection.
| Code Number | 060N1061 |
| Specification Key | MBS 5100-1811-H3DB04-4 |
| Pressure Range | 0–6 bar |
| Pressure Reference | Gauge (relative) |
| Output Signal | 4–20 mA |
| Supply Voltage | 9–32 V DC |
| Pressure Connection | G 1/4 female with flange, ISO 228-1 |
| Electrical Connection | Angular connector, EN 175301-803-A, M20 |
| Enclosure Rating | IP65 |
| Accuracy | ±0.1% FS typical; ±0.3% FS maximum |
The MBS 5100 pressure transmitter is designed for marine applications and severe maritime environments requiring reliable pressure measurement.
Apexon Supply provides B2B sourcing and replacement support for Danfoss 060N1061, including procurement review and technical alignment for industrial maintenance and replacement requirements.
Submit Danfoss code number 060N1061, required quantity, and application requirements for RFQ support. Most qualified RFQs receive a response or quote within 12 hours.
