DONG HAI KW3-0Z-B117013L21-2-F KW3 Series Micro Switch, SPDT, 16A 250VAC, 6.3x0.8mm Quick Connect, Pack of 2
Regular price
$57.00 USD
Regular price
Sale price
$57.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

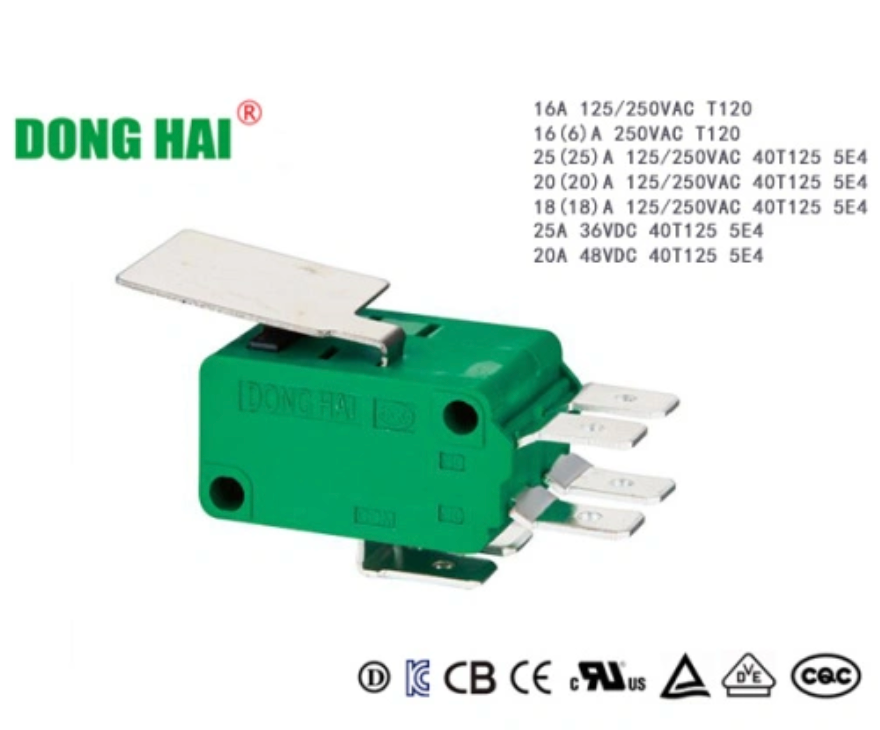

The DONG HAI KW3-0Z-B117013L21-2-F is a high-capacity multifunctional micro switch engineered specifically for power tools and heavy-duty industrial equipment. This SPDT switch features large-distance 6.3 x 0.8mm flat quick-connect terminals and a long lever actuator for precise mechanical triggering in high-vibration environments.
| Product ID (MPN) | KW3-0Z-B117013L21-2-F |
| Rating (UL/cUL) | 16A 125/250VAC T120 |
| Rating (TUV/CE) | 16(6)A 250VAC 5E4 T85 / T120 |
| Circuit Code | SPDT |
| Contact Resistance | ≤50mΩ |
| Terminal Type | 6.3x0.8mm 250 Quick Connect Terminal |
| Actuator Type | Long Flat Lever / Push-Button |
| Operating Force | 4.5N Max |
| HS Code | 853650 |
| Certifications | UL, cUL, TUV, CE, CB, CQC, SGS |
