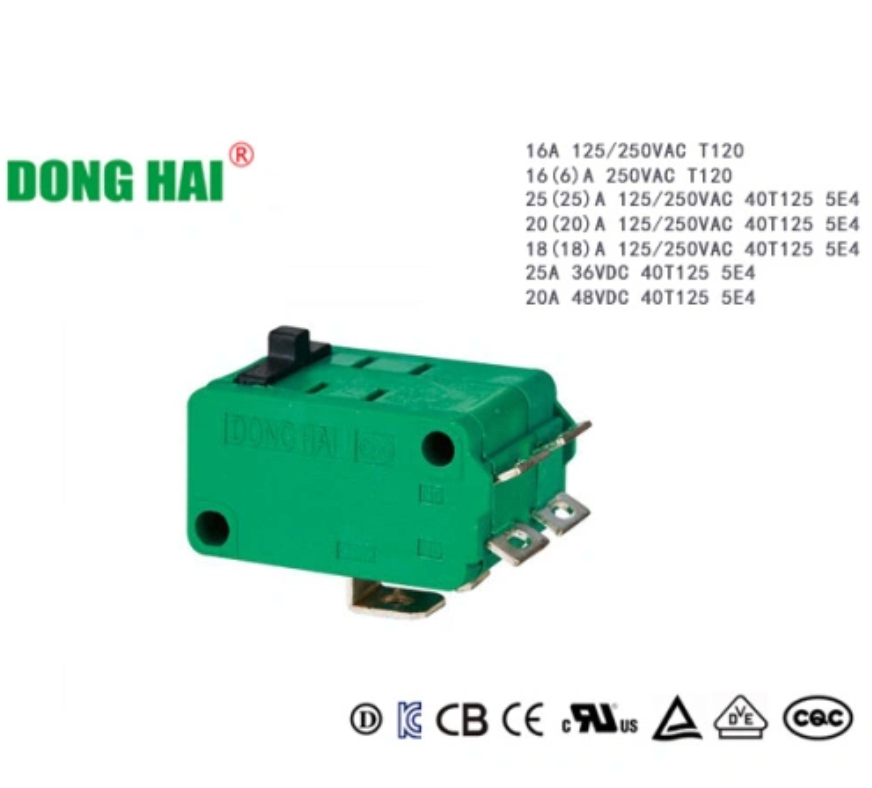

DONG HAI KW3-0Z-B1A7013L-2-SH KW3 Series Micro Switch, SPDT, 16A 250VAC, Square Bend Terminal, Pack of 2
Regular price
$57.00 USD
Regular price
Sale price
$57.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The DONG HAI KW3-0Z-B1A7013L-2-SH is a high-performance multifunctional micro switch designed for reliable precision switching in industrial and consumer applications. Featuring a robust SPDT contact configuration and specialized square bend soldering terminals, this KW3 series switch ensures secure integration and long-term electrical stability under demanding thermal conditions.
| Product ID (MPN) | KW3-0Z-B1A7013L-2-SH |
| Rating (UL/cUL) | 16A 125/250VAC T120 |
| Rating (TUV/CE) | 16(6)A 250VAC 5E4 T85 / T120 |
| Circuit Code | SPDT (Single Pole Double Throw) |
| Contact Resistance | ≤50mΩ |
| Terminal Type | 6.5mm Soldering Terminal (Square head and bend) |
| Operating Force | 4.5N Max |
| Actuator Type | 3.1mm Push-Button |
| Operating Temperature | 0°C to 120°C |
| Certifications | UL, cUL, TUV, CE, CB, CQC, SGS |
