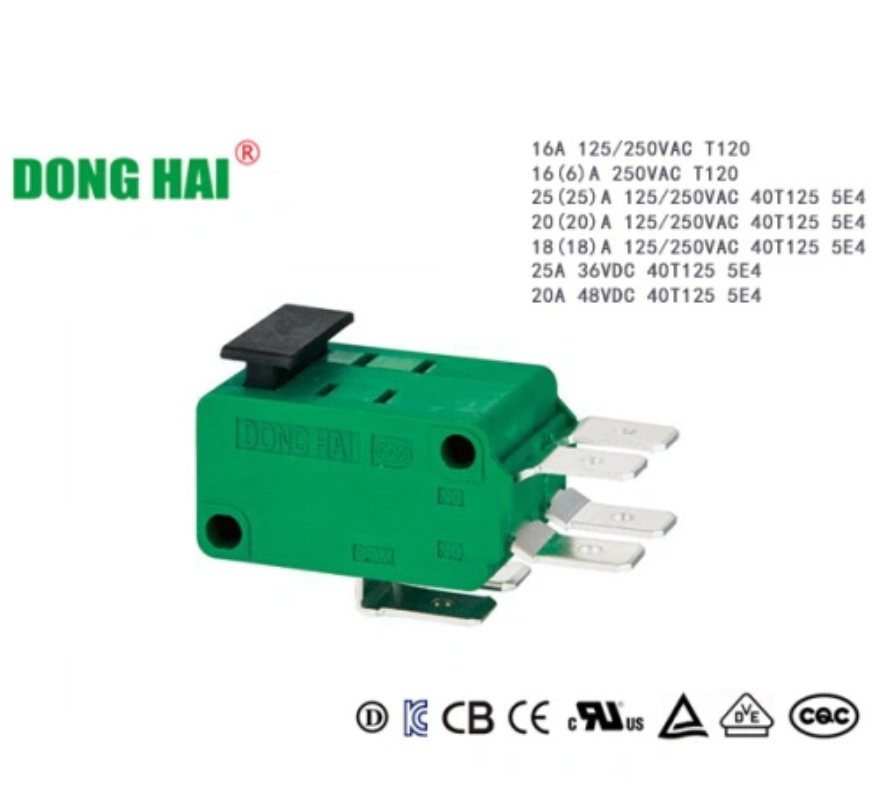

DONGHAI KW3-0Z-B119013L-2-F KW3 Series Green Micro Switch, SPDT, 16A 250VAC, Pack of 2
Regular price
$57.00 USD
Regular price
Sale price
$57.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The DONGHAI KW3-0Z-B119013L-2-F is a multifunctional green micro switch optimized for power tools and industrial control systems. This SPDT switch features a high-capacity 16A rating, low contact resistance of ≤50mohm, and 6.3x0.8mm quick-connect terminals, providing reliable performance in high-temperature environments up to 120°C.
| Product ID (MPN) | KW3-0Z-B119013L-2-F |
| Current Rating | 16A 125/250VAC |
| Circuit Code | SPDT (Single Pole Double Throw) |
| Contact Resistance | ≤50mΩ |
| Terminal Type | 6.3 x 0.8mm (250 Series Quick Connect) |
| Operating Force | 4.5N Max |
| Temperature Rating | T120 (Up to 120°C) |
| Certifications | UL, cUL, VDE, CE, CB, TUV, CQC |
| Housing Color | Green |
