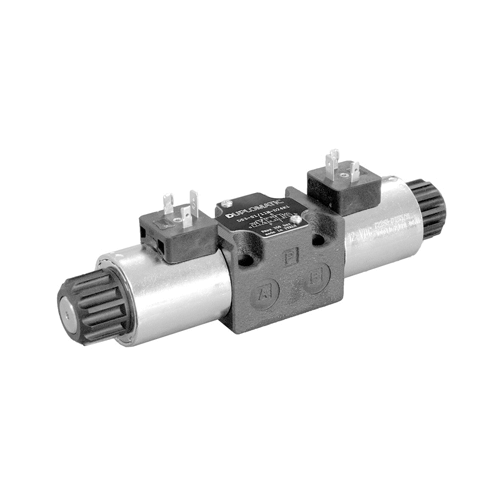

Duplomatic DS3-S1/11N-D24K1 Solenoid Operated Directional Control Valve, ISO 4401-03, 24V DC
Regular price
$200.00 USD
Regular price
Sale price
$200.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview
The Duplomatic DS3-S1/11N-D24K1 is a solenoid operated directional control valve designed for subplate mounting according to ISO 4401-03 standards. This high-performance valve is suitable for applications requiring precise flow control and is available with DC solenoids. The valve body is made from high strength iron castings and features flow paths optimized for minimal pressure drop.
Key Features
- Solenoid actuated, direct operated
- Available in 3 or 4-port design
- Wide range of spool types
- Compatible with DC or AC solenoids
- High-pressure rating up to 350 bar
- Maximum flow rate of 100 l/min
- Salt spray resistance up to 600 hours with zinc-nickel coating
- UL certified coils for 24V DC applications
Specifications
| Mounting Interface | ISO 4401-03 |
| Maximum Operating Pressure | 350 bar (P, A, B ports), 210 bar (T port) |
| Maximum Flow Rate | 100 l/min |
| Fluid Temperature Range | -20 to +80°C |
| Coil Voltage | 24V DC |
| Protection Class | IP65 |
