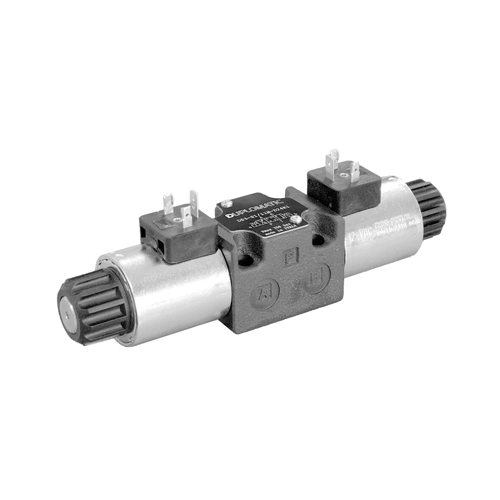

Duplomatic DS3-TA/11N-D24K1 Solenoid Operated Directional Control Valve, ISO 4401-03, 24V DC
Regular price
$280.00 USD
Regular price
Sale price
$280.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview
The Duplomatic DS3-TA/11N-D24K1 is a solenoid operated directional control valve for subplate mounting, compliant with ISO 4401-03 standards. It provides high precision flow control, featuring a robust design and DC solenoids to ensure minimal pressure drops in hydraulic systems.
Key Features
- Solenoid actuated, direct operated
- 3 or 4-port design options
- Diverse spool type offerings
- Operable with DC or AC solenoids
- High-pressure rating up to 350 bar
- Maximum flow rate of 100 l/min
- 600-hour salt spray resistant zinc-nickel coating
- UL certified coils for 24V DC systems
Specifications
| Mounting Interface | ISO 4401-03 |
| Maximum Operating Pressure | 350 bar (P, A, B ports), 210 bar (T port) |
| Maximum Flow Rate | 100 l/min |
| Fluid Temperature Range | -20 to +80°C |
| Coil Voltage | 24V DC |
| Protection Class | IP65 |
