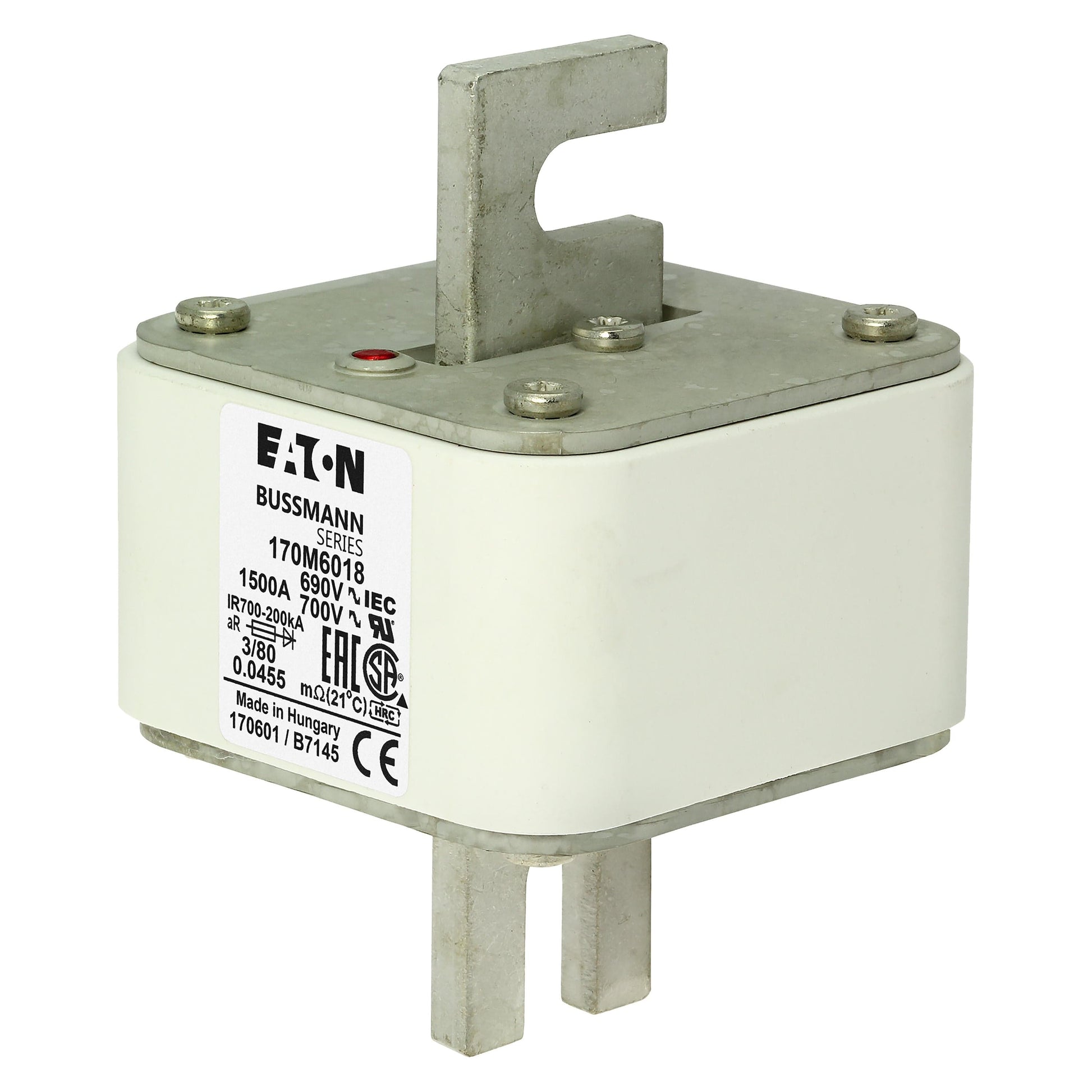

Eaton Bussmann 170M6018 / 5996516017333 High Speed Square Body Fuse, 1500A, 690V AC
Regular price
$160.00 USD
Regular price
Sale price
$160.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Eaton Bussmann 170M6018 is a high-performance square body high-speed fuse engineered for the protection of power semiconductors, DC common bus systems, and motor drives. Featuring a DIN 43653 size 3 body with slotted center bolted tags, this aR-class fuse provides superior short-circuit protection with a high breaking capacity of 200 kA at 690V AC.
| Product ID (MPN) | 170M6018 |
| EAN | 5996516017333 |
| UPC | 051712262620 |
| Amperage Rating | 1500 A |
| Voltage Rating | 690 V (IEC), 700 V (UL) AC |
| Interrupt Rating | 200 kAIC |
| Utilization Category | aR (Accompanied semiconductor protection) |
| Pre-arc (I2T) | 460,000 |
| Clearing (I2T) | 3,100,000 at 660 V |
| Watt Losses | 160 W |
| Fuse Size / Shape | Size 3, DIN 43653 Square body |
| Mounting Type | Slotted center bolted tags (M10) |
| Center-to-Center Distance | 78 mm |
| Status Indicator | Top fuse status indicator (/80) |
| Applications | Semiconductor, DC common bus, DC drives, power converters/rectifiers |
| Certifications | UL Recognized, IEC Rated, CE Marked, RoHS Compliant |
