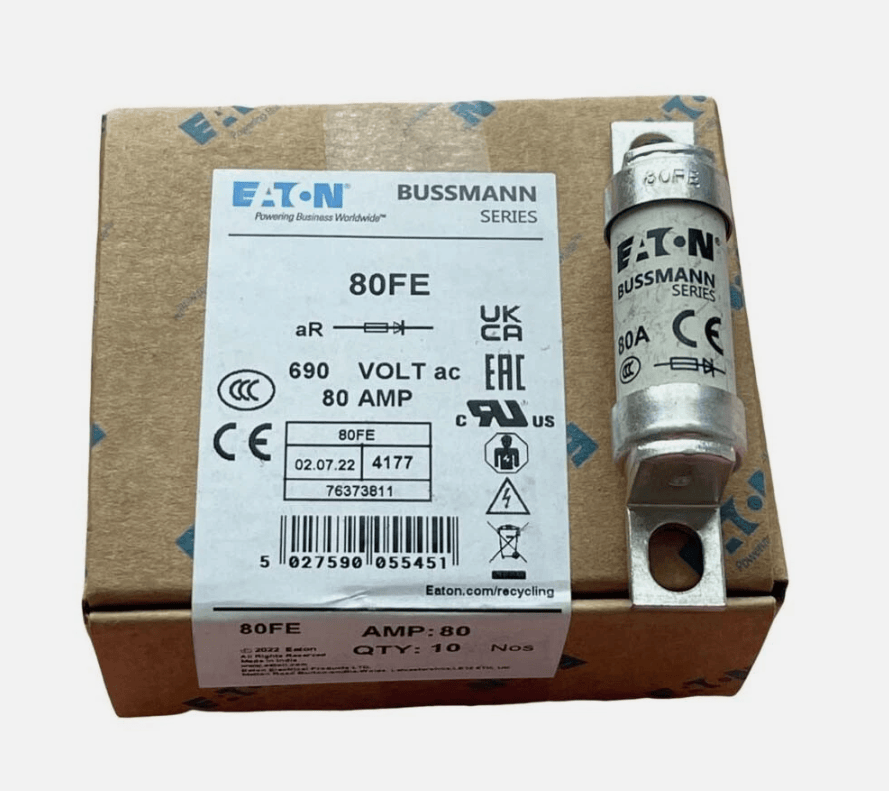

Eaton Bussmann 80FE / 5027590490467 British Standard High Speed Fuse, 80A, 690VAC/500VDC
Regular price
$20.00 USD
Regular price
Sale price
$20.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Eaton Bussmann 80FE is a high-performance British Standard high-speed fuse engineered for the protection of DC common bus, DC drives, power converters, and rectifiers. Designed with class aR utilization for semiconductor protection, this offset bolted tag fuse offers superior breaking capacity and reliability in demanding industrial power electronics applications.
| Product ID (MPN) | 80FE |
| EAN | 5027590490467 |
| Amperage Rating | 80 A |
| Rated Voltage AC | 690 V |
| Rated Voltage DC | 500 V |
| Breaking Capacity | 200 kA |
| Utilization Category | aR (Accompanying semiconductor protection) |
| Watt Losses | 20 W |
| Fuse Shape | Offset bolted tags |
| Center-to-Center Distance | 61.8 mm |
| Mounting Dimension | M6 |
| Clearing (I2T) | 900 at 415 V, 1500 at 660 V |
