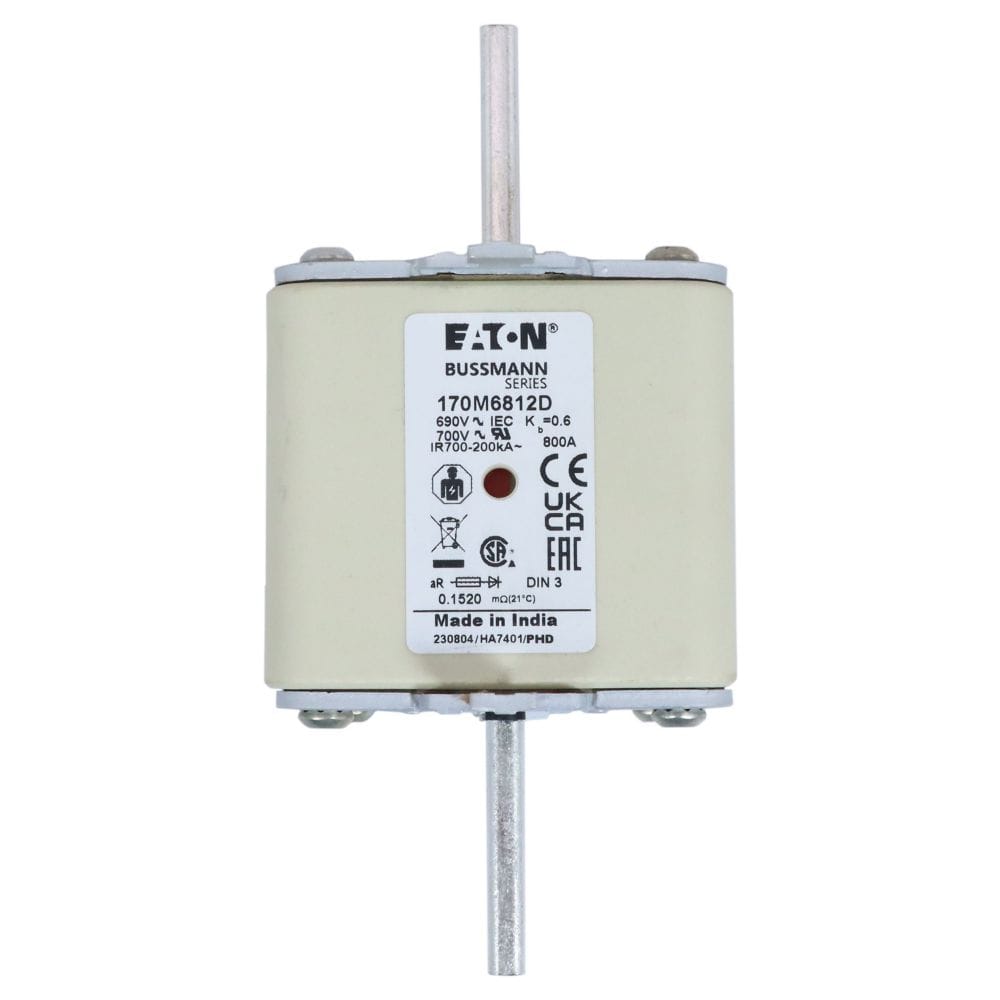

Eaton Bussmann Series 170M6812D High-Speed Square Body Fuse, 800A 690V aR, 200 kAIC, Type 170M, DIN 43-620 Blade End, Combination Indicator
Regular price
$80.00 USD
Regular price
Sale price
$80.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Eaton Bussmann 170M6812D is a high-performance square body fuse engineered for the protection of power semiconductors, DC common bus systems, and power converters. Featuring a size 3 construction with DIN 43-620 blade ends, it provides reliable high-speed clearing and a dual combination status indicator for critical industrial circuit safety.
| Product ID (MPN) | 170M6812D |
| EAN | 5027590463256 |
| Amperage Rating | 800 A |
| Voltage Rating | 690 V (IEC), 700 V (UL) |
| Breaking Capacity | 200 kA |
| Utilization Category | aR (Accompanied Semiconductor Protection) |
| Clearing (I2T) | 490,000 at 660 V |
| Watt Losses | 48 W |
| Fuse Size / Construction | Size 3, Square Body |
| Connection type | DIN 43-620 Blade End |
| Fuse Indicator | Dual / Combination Status Indicator |
| Certifications | IEC Rated, UL Recognized, CE Marked |
