ebm-papst D2D160-CE02-11 AC Centrifugal Fan, 3-Phase, Forward-Curved Dual-Intake
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

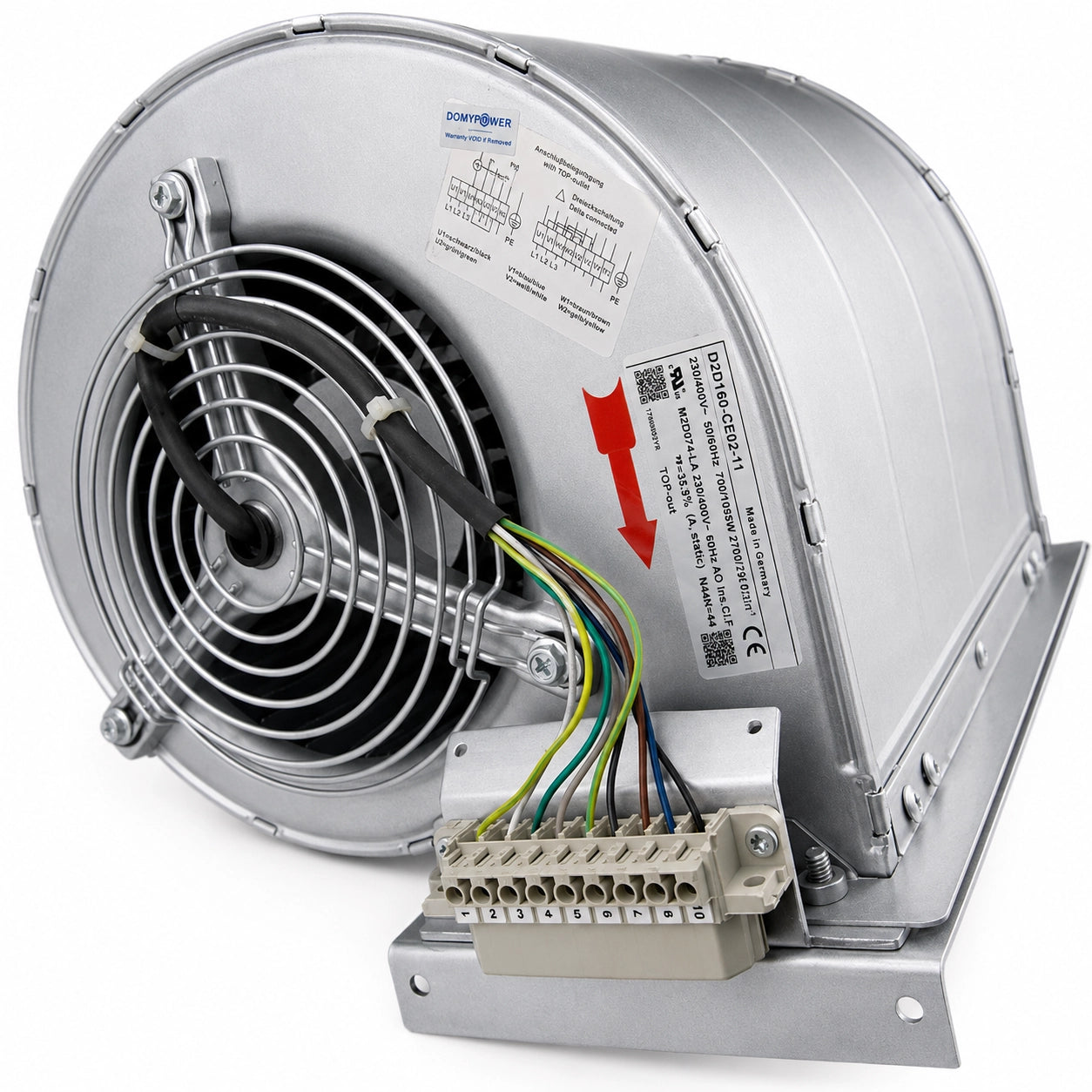

ebm-papst D2D160-CE02-11 is a forward-curved, dual-intake AC centrifugal fan supplied with housing and mounting bracket. The fan is designed for three-phase operation with 230 V Delta or 400 V Star connection at 50/60 Hz. Verified manufacturer data specifies operating speeds up to 2960 min⁻¹, power consumption up to 1055 W, and a motor with thermal overload protection (TOP). d2d160-ce02-11.pdf
| Brand | ebm-papst |
| Model | D2D160-CE02-11 |
| Motor | M2D074-LA |
| Product Category | AC Centrifugal Fan |
| Impeller Type | Forward-curved, dual-intake |
| Phase | 3-Phase AC |
| Nominal Voltage | 230 V Δ / 400 V Y |
| Frequency | 50/60 Hz |
| Speed | 2700 rpm (50 Hz), 2960 rpm (60 Hz) |
| Power Consumption | 700 W (50 Hz), 1055 W (60 Hz) |
| Minimum Back Pressure | 460 Pa (50 Hz), 560 Pa (60 Hz) |
| Fan Size | 160 mm |
| Motor Protection | Thermal Overload Protector (TOP) |
| Ingress Protection | IP00 |
| Insulation Class | Class F |
| Bearing Type | Ball Bearing |
| Installation Notes | Any mounting position. Rotation direction can be changed by reversing two phases. |
This centrifugal fan is typically used in industrial ventilation systems, HVAC equipment, air handling units, process cooling, and OEM machinery requiring high-pressure airflow.
Apexon Supply provides B2B sourcing and replacement support for the ebm-papst D2D160-CE02-11. Verify voltage, wiring configuration, airflow requirements, mounting dimensions, and application conditions before replacement.
Provide the model number, required quantity, and application details to request a B2B quotation. Most qualified RFQs receive a response or quote within 12 hours.
