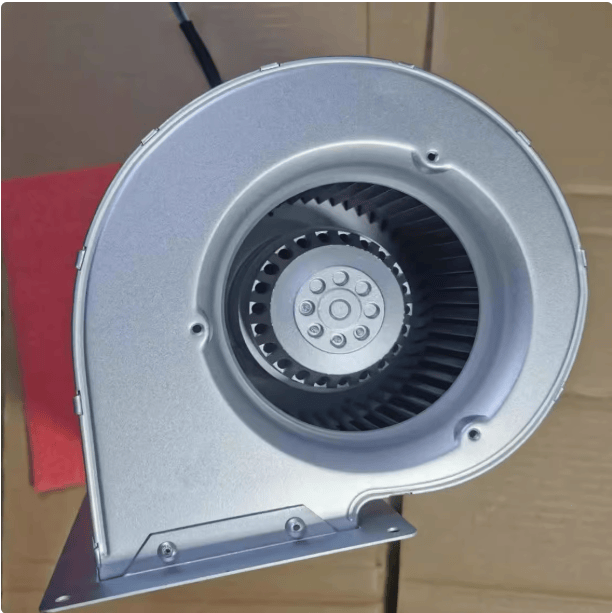

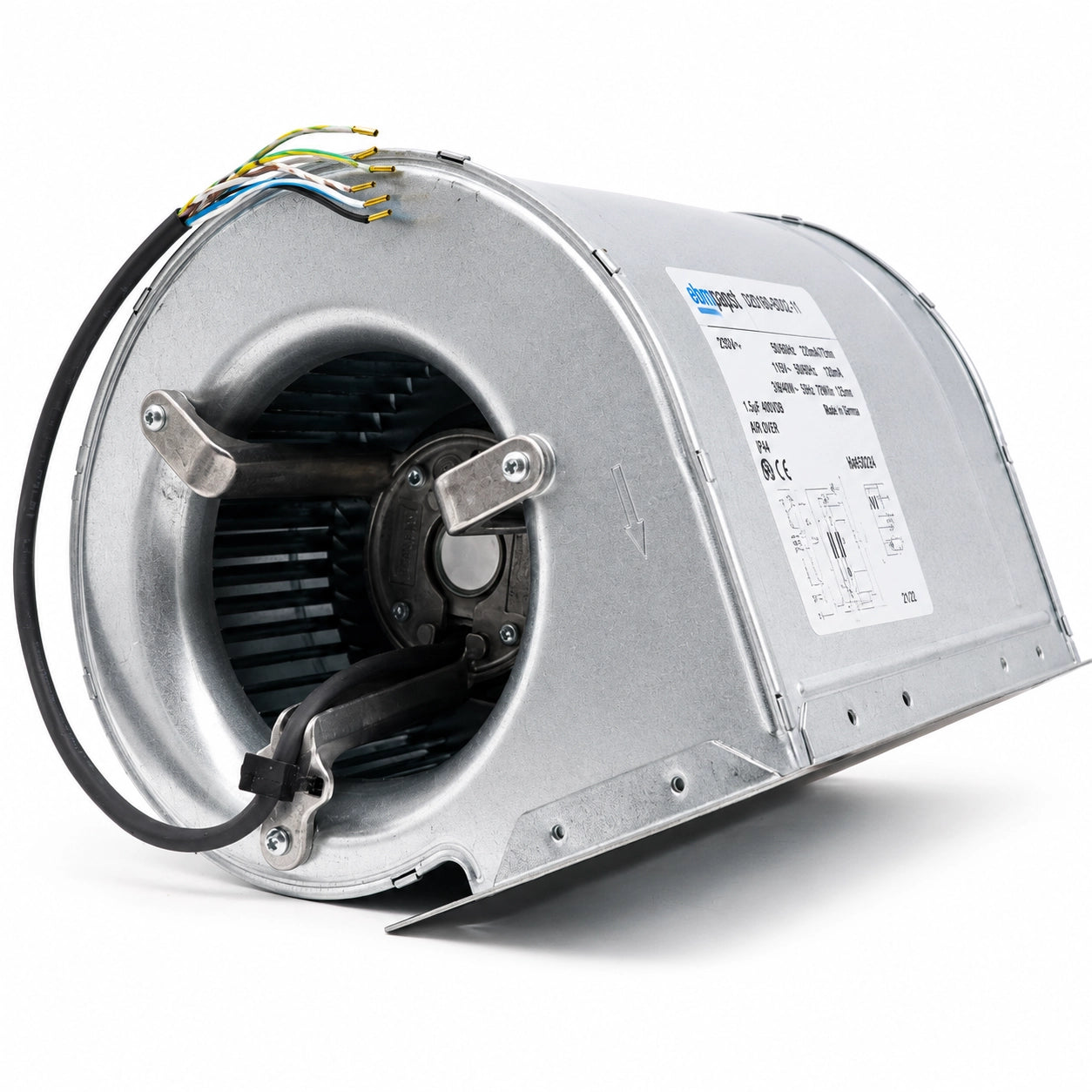

ebm-papst D2E146-AP47-B8 Centrifugal Blower, 230 V AC, 2050/2550 rpm
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
ebm-papst D2E146-AP47-B8 is a single-phase centrifugal blower designed as a built-in device for conveying air. Verified nominal data includes 230 V AC operation at 50/60 Hz, 300/330 W power consumption, and rotational speeds of 2050/2550 min⁻¹.
| Brand | ebm-papst |
| Model | D2E146-AP47-B8 |
| Motor | M2E068-EC |
| Product Category | Centrifugal Blower |
| Phase | Single-phase |
| Nominal Voltage | 230 V AC |
| Frequency | 50/60 Hz |
| Power Consumption | 300/330 W |
| Current Draw | 1.31/1.45 A |
| Rotational Speed | 2050/2550 min⁻¹ |
| Capacitor | 8 µF, 400 VDB |
| Minimum Back Pressure | 200/400 Pa |
| Size | 146 mm |
| Ingress Protection | IP44, installation- and position-dependent |
| Insulation Class | Class F |
| Electrical Connection | Plug connection; capacitor mounted |
| Installation Notes | Any installation position; connect the thermal overload protector and protective earth according to the operating instructions. |
This centrifugal blower is intended for integration into equipment that requires controlled air conveyance, forced-air cooling, ventilation, or thermal management.
Apexon Supply provides B2B sourcing and replacement support for ebm-papst D2E146-AP47-B8. Buyers should verify voltage, frequency, current, back-pressure requirements, connection layout, mounting dimensions, and operating conditions before replacement.
Send the MPN, required quantity, and application requirements for B2B RFQ support and technical alignment.
