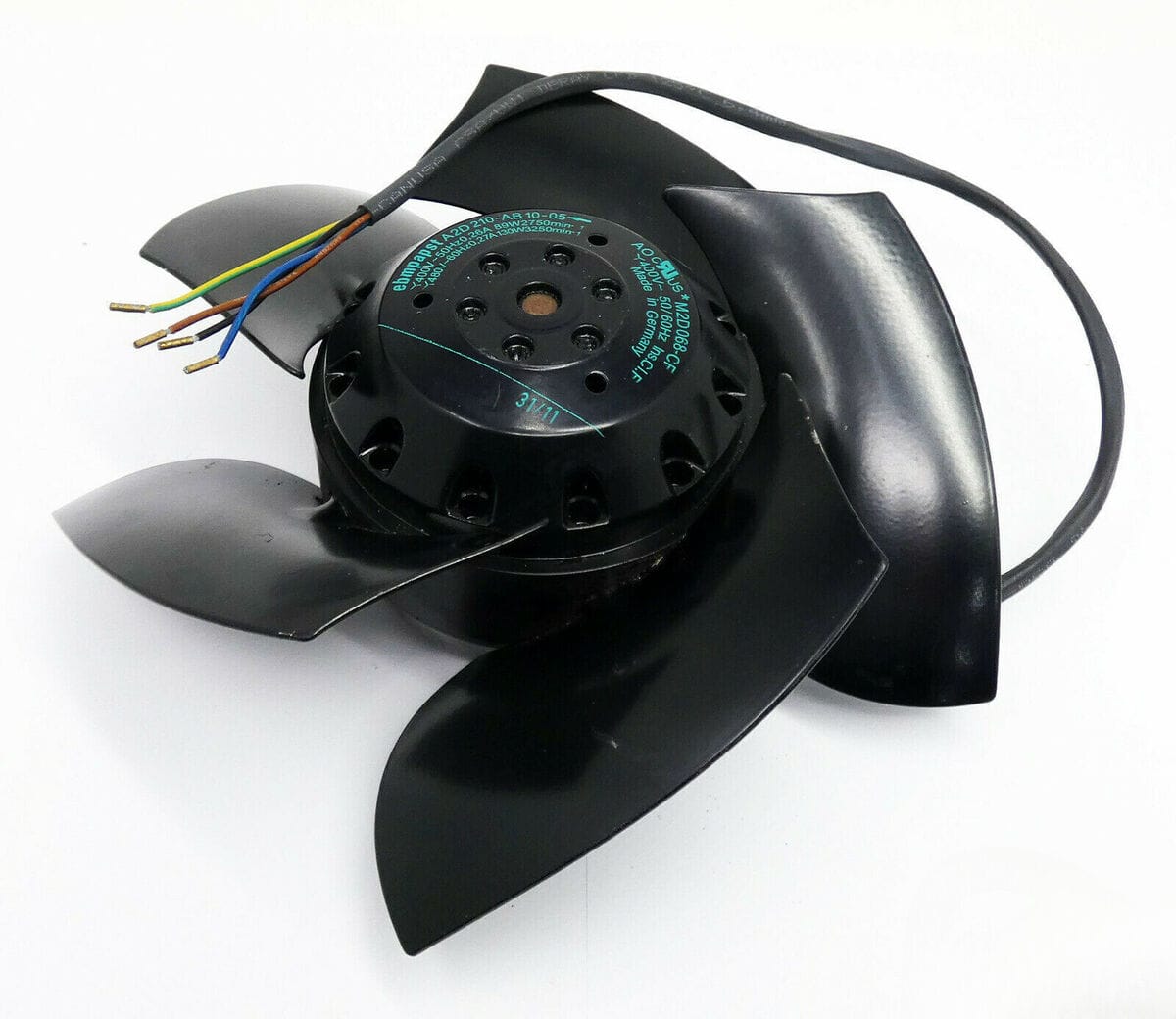

ebm-papst M2D068-CF02-07 AC Motor, 380 V AC, 2600 rpm
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
ebm-papst M2D068-CF02-07 is an AC motor with a 380 V star connection, 50 Hz operating frequency, 90 W power input, and 2600 min⁻¹ rated speed. The motor provides 57 W output power and 21 Ncm rated torque for integration into compatible industrial equipment.
| Brand | ebm-papst |
| Type | M2D068-CF02-07 |
| Motor | M2D068-CF |
| Nominal Voltage | 380 V AC |
| Connection | Y star connection |
| Frequency | 50 Hz |
| Rated Speed | 2600 min⁻¹ |
| Power Input | 90 W |
| Power Output | 57 W |
| Current Draw | 0.17 A |
| Rated Torque | 21 Ncm |
| Medium Start-up Torque | 48.5 Ncm |
| Ingress Protection | IP44, dependent on installation and position |
| Insulation Class | Class B |
| Operation Mode | S1 |
| Motor Bearing | Ball bearing |
| Installation Notes | Clockwise rotation viewed from the rotor. Wiring: L1 black, L2 blue, L3 brown, PE green/yellow. Maximum screw depth: 5 mm. |
This AC motor is suitable for integration into compatible industrial equipment requiring 380 V AC operation, a star connection, and a rated speed of 2600 min⁻¹.
Apexon Supply provides B2B sourcing and replacement support for ebm-papst M2D068-CF02-07. Buyers should verify voltage, connection configuration, shaft dimensions, rotation direction, mounting position, and equipment requirements before replacement.
Send the MPN, required quantity, and application details to request a B2B quote and technical alignment support.
