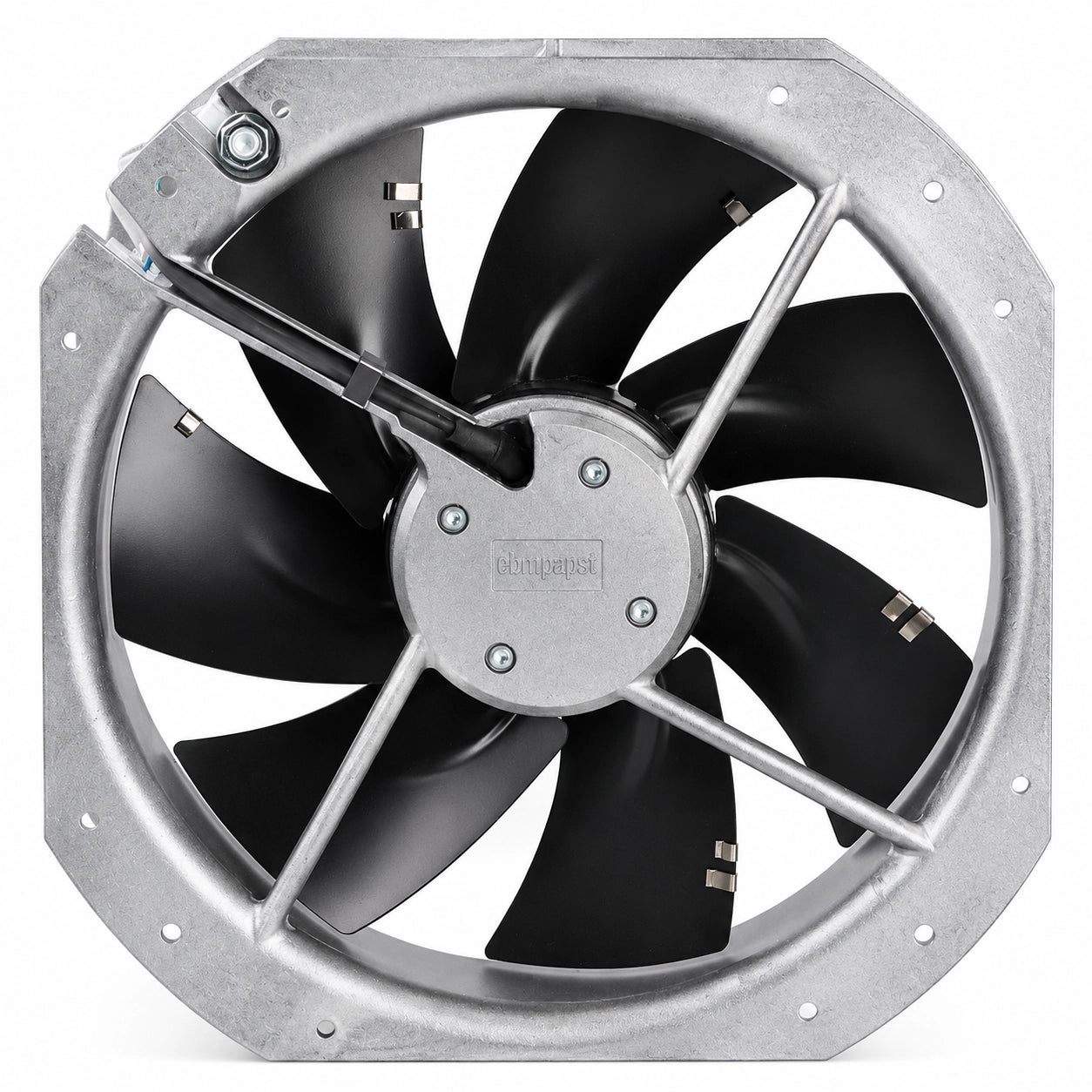

ebm-papst W2E250-HL06-01 AC Axial Fan, 230 V AC, 250 mm
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
ebm-papst W2E250-HL06-01 is a 250 mm single-phase AC axial fan designed as a built-in device for conveying air. It operates at 230 V AC and uses the M2E068-CF motor, with verified performance data for 50 Hz and 60 Hz operation.
| Brand | ebm-papst |
| Model | W2E250-HL06-01 |
| Product Category | AC axial fan |
| Motor | M2E068-CF |
| Phase | Single-phase |
| Nominal Voltage | 230 V AC |
| Frequency | 50/60 Hz |
| Speed | 2550 rpm at 50 Hz; 2700 rpm at 60 Hz |
| Power Consumption | 127 W at 50 Hz; 180 W or 195 W at 60 Hz according to approval configuration |
| Current Draw | 0.56 A at 50 Hz; 0.79 A or 0.83 A at 60 Hz according to approval configuration |
| Size | 250 mm |
| Degree of Protection | IP44, installation- and position-dependent |
| Electrical Connection | Terminal strip with connected capacitor |
| Installation Position | Any |
| Operating Restriction | Operation permitted only outside the European Economic Area |
Typical applications include built-in air-conveying, equipment ventilation, and cooling arrangements in customer machinery or assemblies operated within the specified electrical and environmental limits.
Apexon Supply provides B2B sourcing and replacement support for the ebm-papst W2E250-HL06-01. Procurement teams should verify the voltage, frequency, performance rating, dimensions, mounting arrangement, and operating-region restriction against the original equipment requirements.
Send the MPN, required quantity, and application details to request a B2B quote and technical alignment review.
