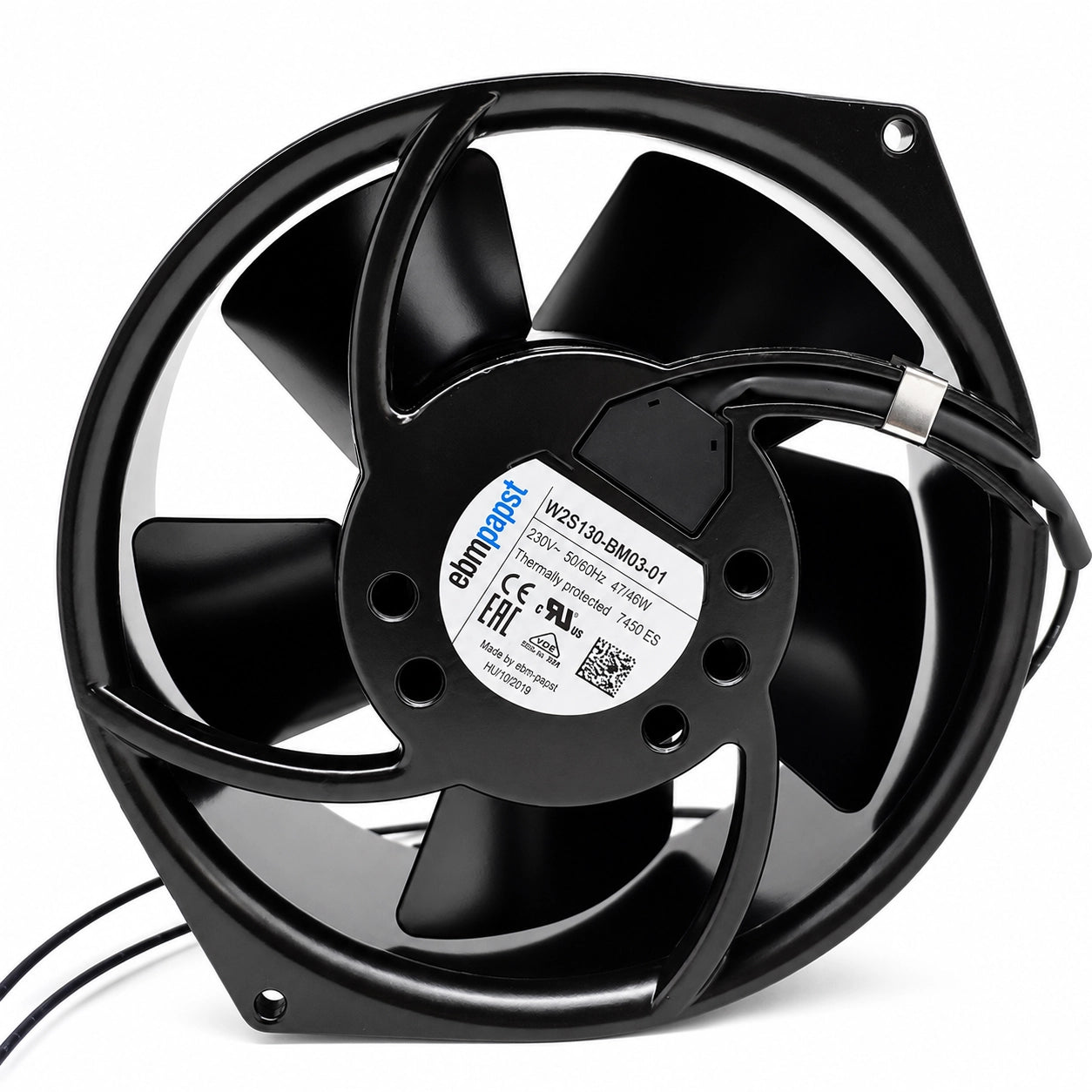

ebm-papst W2S130-BM03-01 AC Axial Fan, 230 V AC, 130 mm
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
ebm-papst W2S130-BM03-01 is a 130 mm single-phase AC axial fan designed as a built-in device for conveying air. It operates at 230 V AC with verified speeds of 2700 rpm at 50 Hz and 3050 rpm at 60 Hz.
| Brand | ebm-papst |
| Model | W2S130-BM03-01 |
| Motor | M2S052-CA |
| Phase | Single-phase |
| Nominal Voltage | 230 V AC |
| Frequency | 50/60 Hz |
| Speed | 2700 rpm at 50 Hz; 3050 rpm at 60 Hz |
| Power Consumption | 47 W at 50 Hz; 46 W at 60 Hz |
| Current Draw | 0.31 A at 50 Hz; 0.27 A at 60 Hz |
| Size | 130 mm |
| Degree of Protection | IP20 |
| Motor Protection | Thermal switch, automatic reset, internally connected |
| Connection | AWG20 cable with two crimped splices |
| Installation Position | Any |
Typical applications include built-in ventilation and air-conveying functions in industrial equipment, electrical assemblies, machinery, and temperature-controlled indoor systems.
Apexon Supply provides B2B sourcing and replacement support for the ebm-papst W2S130-BM03-01. Buyers should verify the voltage, frequency, speed, dimensions, mounting arrangement, airflow direction, and electrical connection against the original equipment requirements.
Send the MPN, required quantity, and application details to request a B2B quote and technical alignment review.
