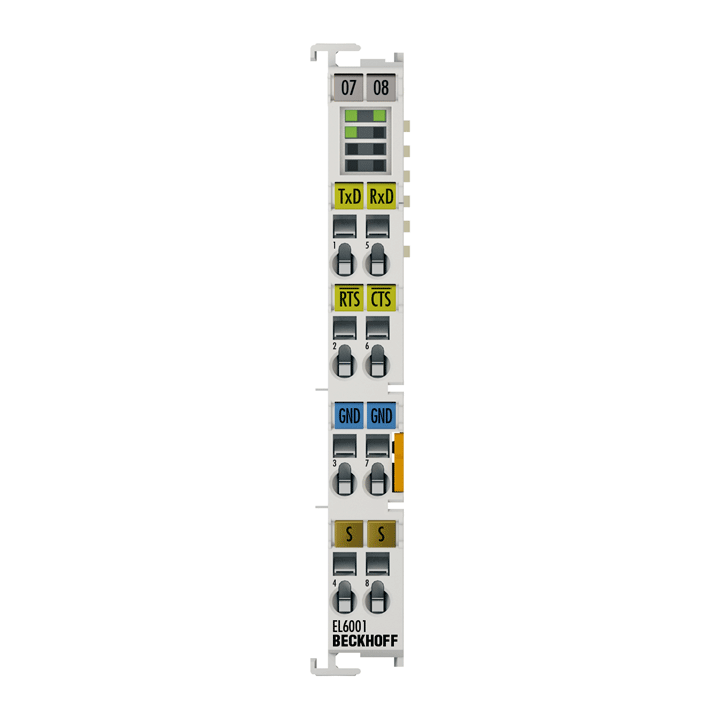

Beckhoff EL6001 EtherCAT Terminal Serial Interface, RS232, 2400–115200 Baud, 1 Channel, 12×100×68 mm

Overview

The Beckhoff EL6001 is a 1‑channel RS232 serial communication EtherCAT Terminal (CCITT V.28/DIN 66259‑1 compliant). It operates independently of the higher‑level bus in full‑duplex mode up to 115.2 kbaud and provides 500 V galvanic isolation between the E‑bus and signal lines. Used with the TwinCAT Virtual Serial COM Driver, it can appear as a standard Windows COM interface.

Key Features

• RS232 serial interface, full‑duplex (TxD/RxD)
• Data rates 2400…115,200 baud (default 9600, 8 data bits, no parity, 1 stop bit)
• Bit distortion < 3%; max cable length 15 m
• Receive/transmit buffers: 864 bytes RX, 128 bytes TX
• 500 V isolation (E‑bus/signal); powered via E‑bus
• Compact 12 mm DIN‑rail IP20 housing with status LEDs

Applications

• Connecting RS232 devices (sensors, HMIs, modems) to EtherCAT systems
• PC communication via TwinCAT Virtual Serial COM Driver

Specifications
