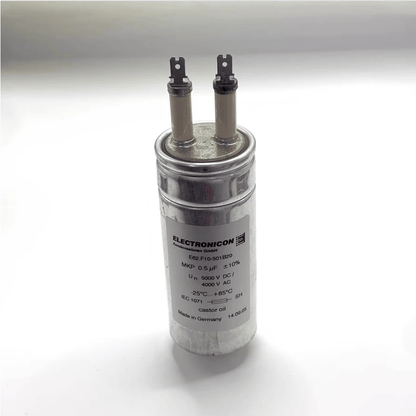

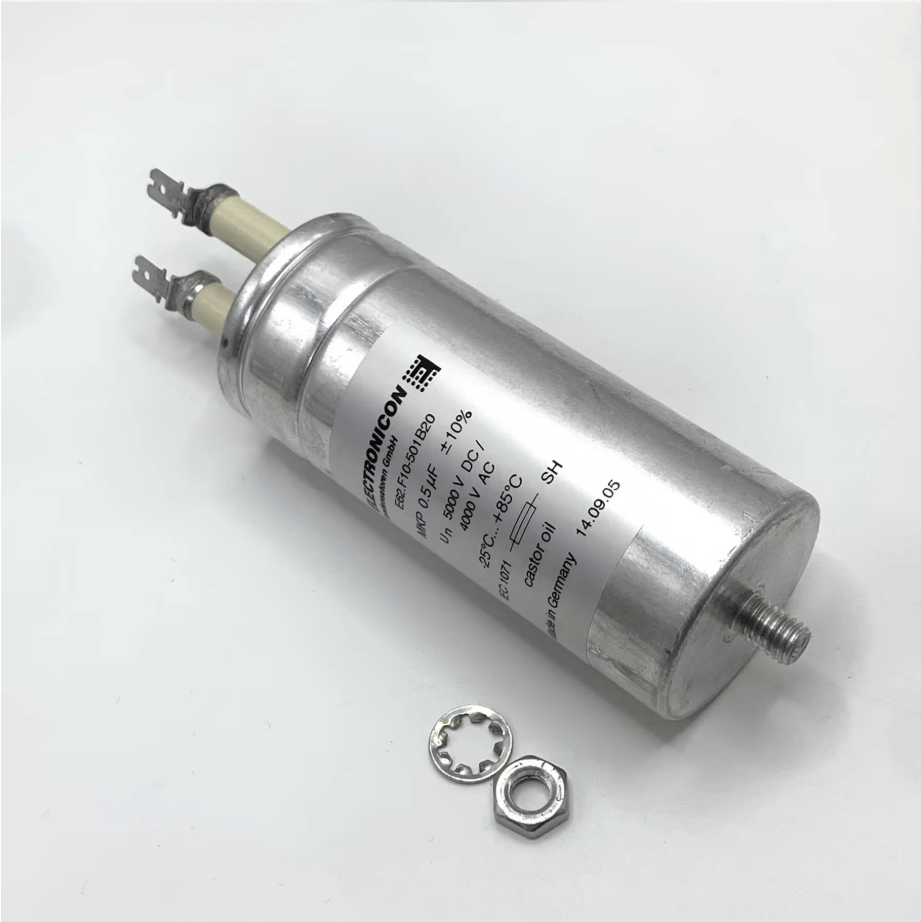

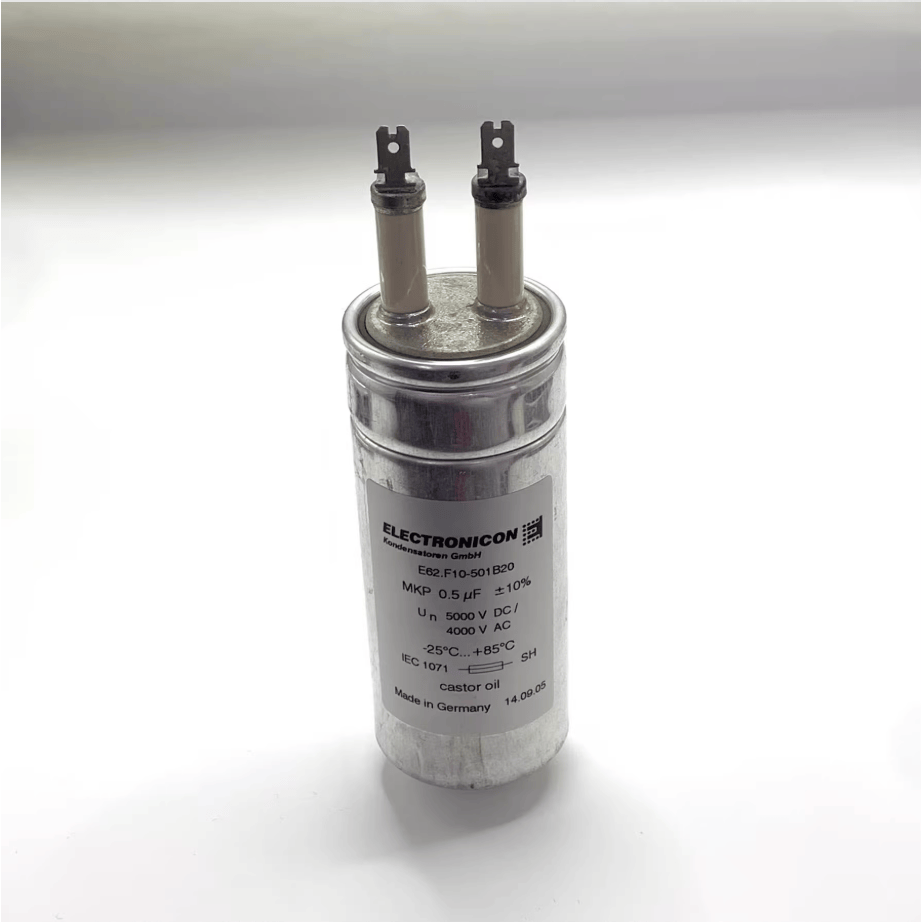

ELECTRONICON E62.F10-501B20200.003-020060 E62 TAB Fast On Terminals AC Capacitor, 0.5 µF, 5000V AC
Regular price
$50.00 USD
Regular price
Sale price
$50.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Overview
The ELECTRONICON E62 TAB is a heavy-duty AC film capacitor designed for universal and demanding AC applications. Part of the E62 series, it features a hermetically sealed aluminum can filled with environmentally friendly plant oil and is equipped with a break-action mechanism (BAM) for safe overload protection. This model is optimized for high operating voltages up to 5000V AC.
Key Features
- Heavy-duty AC capacitor for universal use in power electronics.
- Hermetically sealed aluminum can with plant oil filling (non-PCB).
- Integrated break-action mechanism (BAM) for safe overload disconnection.
- Fast-on tab terminals (6.3 x 0.8 mm) for general applications.
- Self-healing MKP dielectric for reliability and overvoltage protection.
- Designed for non-sinusoidal voltages and pulsed currents.
- Compliant with IEC 61071, UL810, and CSA22.2 No.190 standards.
| Product ID / Ordering Code | E62.F10-501B20200.003-020060 |
| Capacitance (CN) | 0.5 µF |
| Rated Voltage (UN) | 5000V AC |
| Rated RMS Voltage (Urms) | 3500V |
| Surge Voltage (US) | 7500V |
| DC Test Voltage (UTC) | 8750V |
| Equivalent Series Resistance (DCRS) | 10.4 mΩ |
| Thermal Resistance (Rth) | 9.4 K/W |
| Max. RMS Current (Imax) | 16 A |
| Surge Current (Î) | 1.5 kA |
| Short-Circuit Current (IS) | 4.5 kA |
| Equivalent Series Inductance (Le) | 140 nH |
| Dimensions (D1 × L1) | 45 × 105 mm |
| Design / Terminal Type | B2 (Fast-on Tab, 6.3 × 0.8 mm) |
| Weight | 0.18 kg |
| Capacitance Tolerance | ±10% (optional ±5%) |
| Dissipation Factor (tanδ0) | 2 × 10-4 |
| Operating Temperature (Θmin ... Θmax) | -40 ... +85°C |
| Hotspot Temperature (ΘHOTSPOT) | ≤ 85°C |
| Storage Temperature | -40 ... +85°C |
| Statistical Lifetime | > 200,000 h |
| Failure Rate (FIT) | 100 FIT (Ref: 100,000h, ΘHOTSPOT ≤70°C) |
| Mounting Position | Terminals pointing upwards (vertical) |
| Internal Protection | Break-action mechanism (BAM) |
| Standards | IEC 61071, UL810, CSA22.2 No.190 (optional IEC 61881) |
