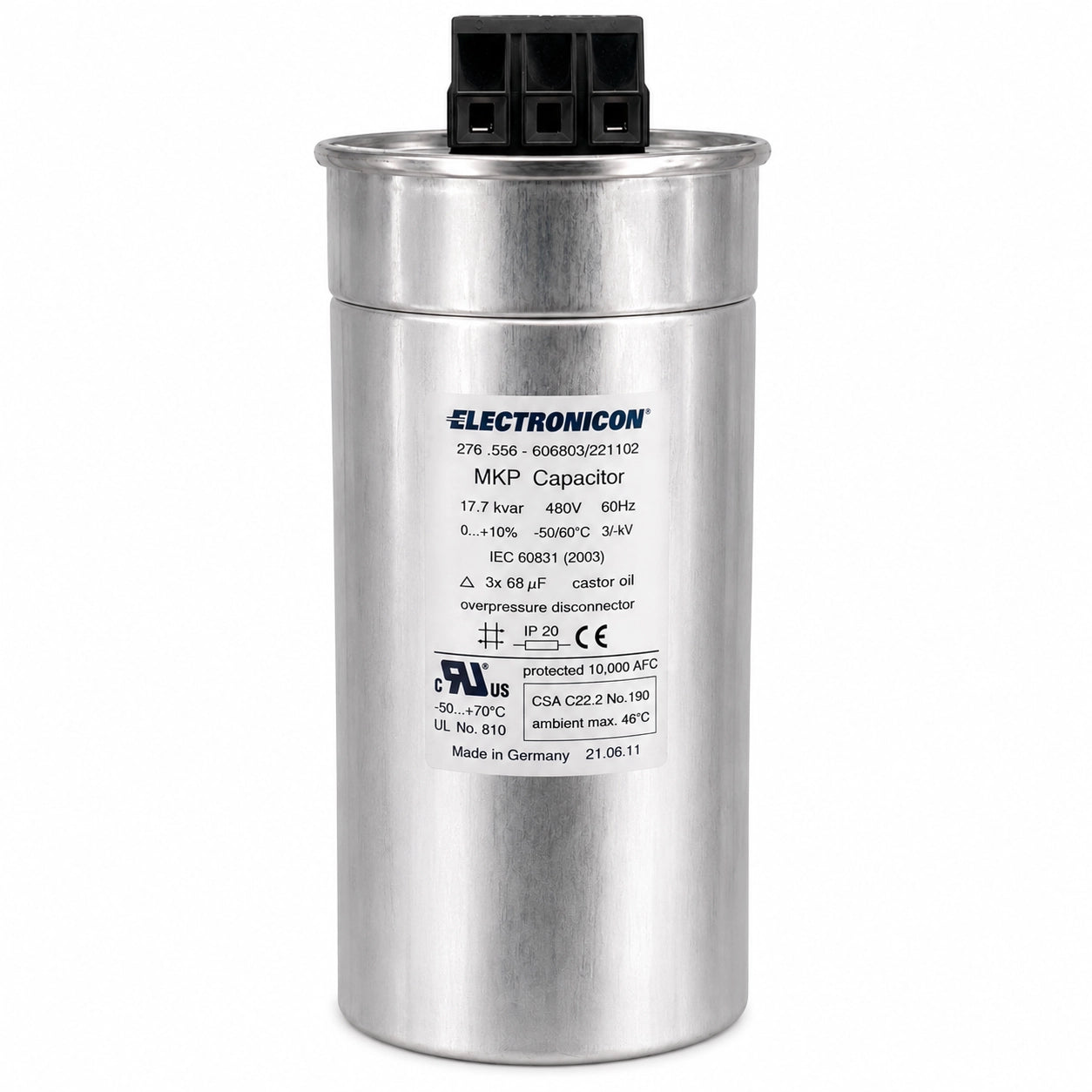

ELECTRONICON 276.556-606803/221102 MKP Capacitor, 17.7 kvar, 480V
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

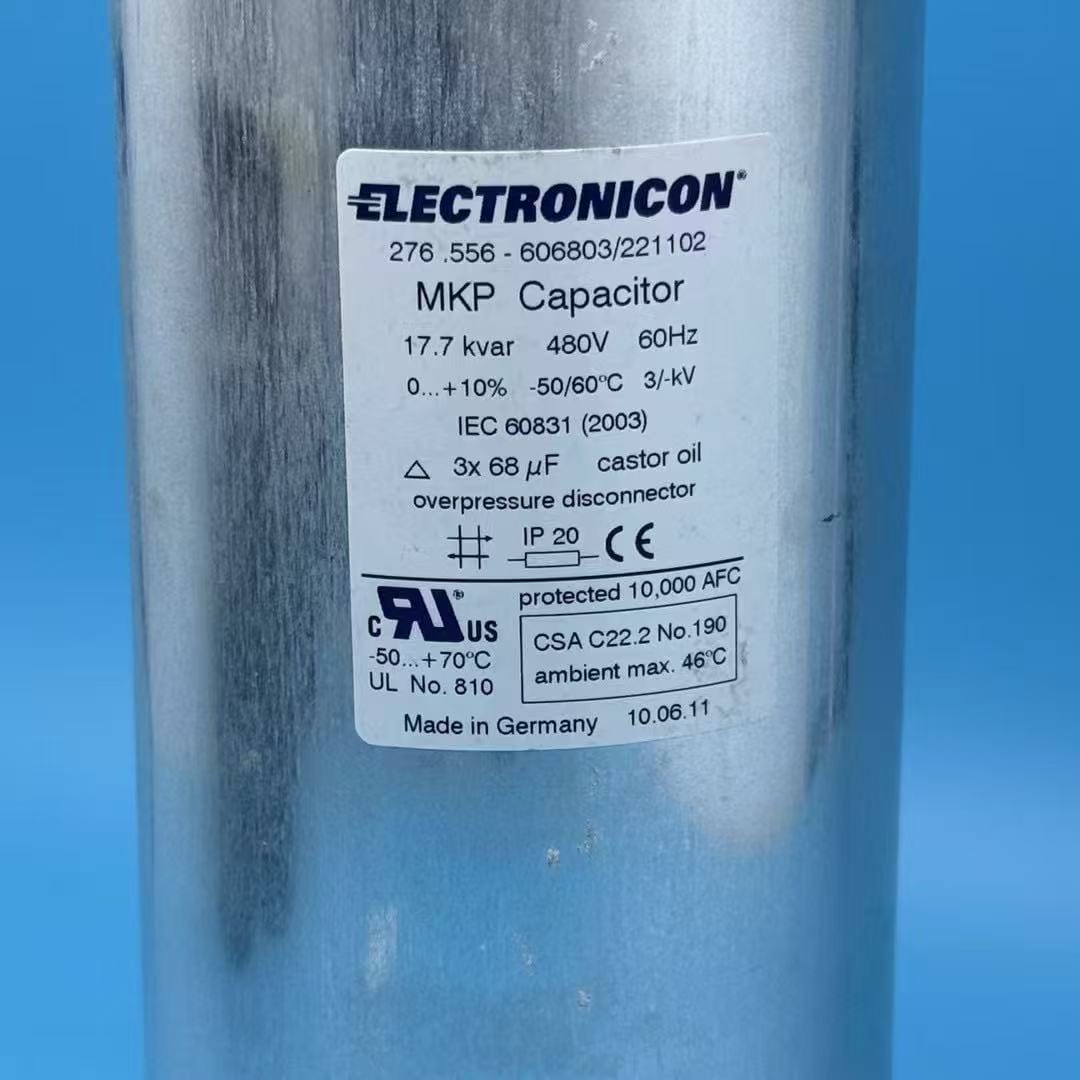

ELECTRONICON 276.556-606803/221102 is an MKP capacitor identified from the product label with 17.7 kvar reactive power, 480V rating, 60Hz frequency, and 3x68uF capacitance. It is used in industrial power and energy applications where verified capacitor specifications support procurement review, replacement sourcing, and technical comparison.
| Brand | ELECTRONICON |
| MPN | 276.556-606803/221102 |
| Capacitor Type | MKP Capacitor |
| Reactive Power | 17.7 kvar |
| Voltage | 480V |
| Frequency | 60Hz |
| Capacitance | 3x68uF |
| Tolerance | 0 to +10% |
| Connection | Delta |
| Temperature Range | -50°C to +60°C |
| UL Temperature Range | -50°C to +70°C |
| Standard | IEC 60831 (2003) |
| Protection / Filling | Castor oil protected |
| Disconnector | Overpressure disconnector |
| IP Rating | IP20 |
| Markings | CE, cRUus, UL No. 810, CSA C22.2 No. 190 |
| AFC Rating | 10,000 AFC |
Typical applications include industrial capacitor replacement, power factor correction, power electronics service, filtering, compensation, and maintenance of electrical power systems where the original equipment requirements match the verified label data.
Apexon Supply provides B2B sourcing and replacement support for ELECTRONICON 276.556-606803/221102, helping procurement teams compare verified specifications and confirm technical alignment before purchase.
Send the MPN, required quantity, and application requirements to request a B2B quote for sourcing support.
