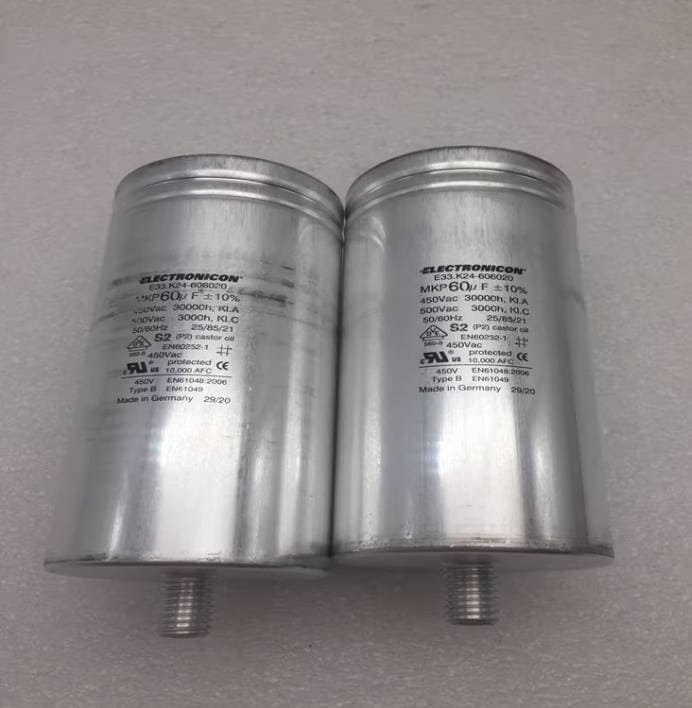

ELECTRONICON E33.K24-606020 E33 Series AC Capacitor, 60µF, 600V AC
Regular price
$125.00 USD
Regular price
Sale price
$125.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The ELECTRONICON E33.K24-606020 is an AC film capacitor from the E33 series, designed for power electronics applications requiring reliable performance in AC circuits. It features a robust construction with self-healing metallized polypropylene dielectric and integrated safety mechanisms for overload protection. Suitable for filtering, damping, and power factor correction applications.
Key Features
- AC film capacitor for power electronics applications.
- Self-healing metallized polypropylene (MKP) dielectric.
- Integrated safety mechanism for overload protection.
- Designed for filtering, damping, and power factor correction.
- Robust construction for reliable operation.
Specifications
| Product ID / Ordering Code | E33.K24-606020 |
| Rated Capacitance (CN) | 60 µF |
| Rated AC Voltage (UN) | 600V AC |
| Operating Temperature Range | -40 ... +85°C (typical) |
| Capacitance Tolerance | ±10% (typical) |
| Dissipation Factor (tanδ) | < 2 × 10-4 (typical) |
| Mounting Position | Vertical (terminals pointing upwards) |
| Standards | IEC 61071, UL810 (typical) |
Note: Detailed specifications such as ESR, surge current, and exact dimensions are not provided in the input. For complete technical data, please consult the official ELECTRONICON datasheet for the E33 series.
