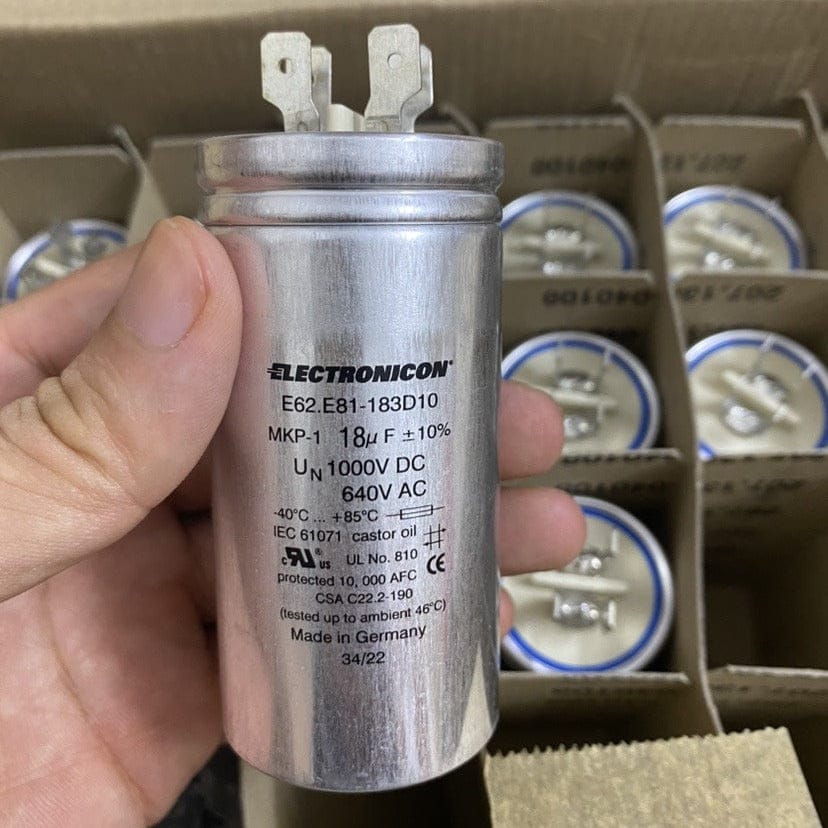

ELECTRONICON E62.E81-183D10 E62 Heavy Duty AC Capacitor, 18µF, 1000V AC

The ELECTRONICON E62.E81-183D10 is a heavy-duty AC capacitor from the universal E62 series, designed for demanding industrial power applications. It features an 18µF capacitance with a high 1000V AC rating, making it suitable for non-sinusoidal voltages, pulsed currents, damping, commutation, and AC filtering. Housed in a hermetically sealed aluminum can with environmentally friendly plant oil filling, it offers excellent self-healing characteristics and integrated overpressure protection (BAM™) for safe, reliable operation.

Key Features

• Heavy-duty AC capacitor for universal industrial applications
• Capacitance of 18 microfarads (µF)
• High voltage rating of 1000 Volts AC
• Designed for non-sinusoidal voltages and pulsed currents
• Suitable for damping, commutation, and AC filtering
• Hermetically sealed aluminum can with plant oil filling
• Integrated overpressure protection (BAM™) for safety
• Excellent self-healing dielectric for reliability

Technical Specifications
