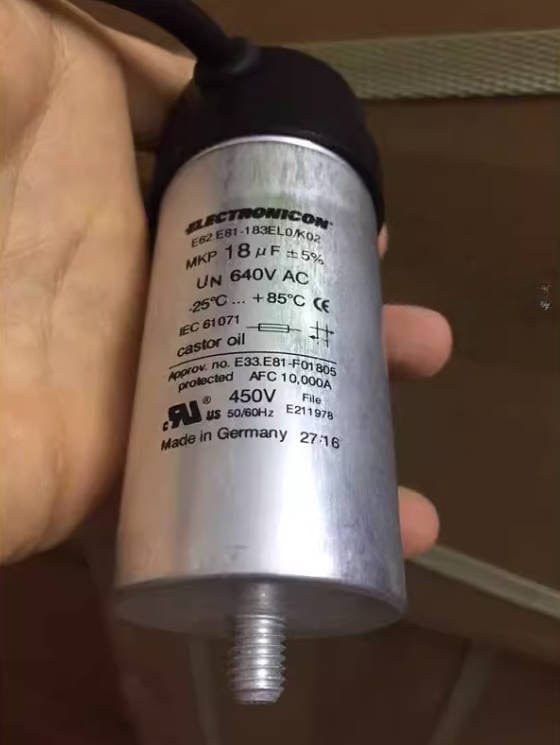

ELECTRONICON E62.E81-183EL0/K02 E62 Series Heavy Duty AC Capacitor, 18µF, 640V AC

$100.00 USD

Sale Sold out

Shipping calculated at checkout.

Pack Size 1 pcs 6 pcs 12 pcs

Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

The ELECTRONICON E62.E81-183EL0/K02 is a heavy-duty AC/DC film capacitor from the universal E62 series, designed for demanding power electronics applications. It features a hermetically sealed aluminum can filled with environmentally friendly plant oil and is optimized for high RMS currents, making it suitable for non-sinusoidal voltages, pulsed currents, damping, commutation, and AC filter circuits. The integrated break-action mechanism (BAM) ensures safe, controlled disconnection in case of overload.

Key Features

Heavy-duty AC capacitor for universal and high-current applications.
Hermetically sealed aluminum can with plant oil filling (standard).
Integrated overpressure protection (Break-Action Mechanism - BAM™).
Optimized for high RMS and surge currents.
Self-healing metallized polypropylene (MKP) dielectric.
Complies with IEC 61071, UL810, and CSA 22.2 No.190 standards.
Compact design with tab terminals.

Specifications

Product ID / Ordering Code	E62.E81-183EL0/K02
Rated Capacitance (C_N)	18 µF
Rated AC Voltage (U_N)	640V AC
RMS Voltage (U_rms)	450V
Surge Voltage (U_S)	1500V
DC Test Voltage (U_TC)	3000V AC
Equivalent Series Resistance (R_S)	4.8 mΩ
Thermal Resistance (R_th)	13.8 K/W
Max. Continuous Current (I_max)	29 A
Max. Surge Current (Î)	0.87 kA
Short Circuit Current (I_S)	2.6 kA
Equivalent Series Inductance (L_e)	80 nH
Dimensions (D₁ × L₁)	40 × 81 mm
Design / Terminal	D1 (dual tab 6.3 × 0.8 mm)
Weight	0.11 kg
Operating Temperature Range	-25 ... +85°C
Hotspot Temperature (Θ_HOTSPOT)	< 85°C
Capacitance Tolerance	±10% (optional ±5%)
Dissipation Factor (tanδ₀)	2 × 10^-4
Mounting Position	Terminals pointing upwards (vertical)
Standards	IEC 61071 (optional IEC 61881)
