ELECTRONICON E62.M14-203C20 MKP Capacitor, 20 µF, 1000 VAC
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

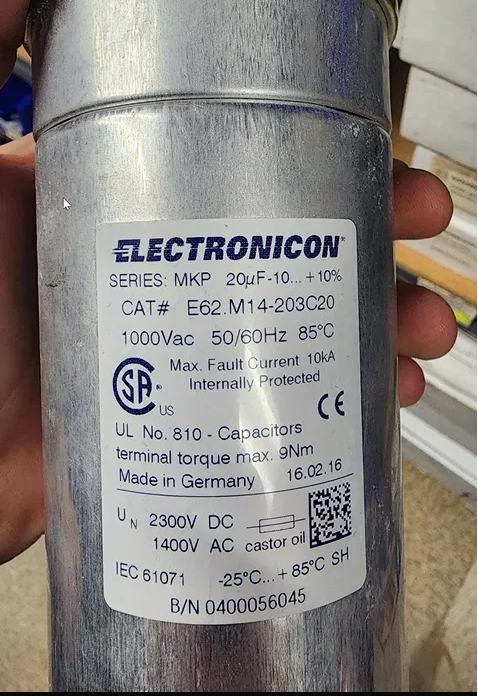

ELECTRONICON E62.M14-203C20 is an MKP capacitor rated at 20 µF with a -10...+10% capacitance tolerance. The product label specifies 1000 VAC at 50/60 Hz, a maximum fault current of 10 kA, and internal protection.
| CAT# | E62.M14-203C20 |
| Series | MKP |
| Capacitance | 20 µF |
| Tolerance | -10...+10% |
| Voltage Rating | 1000 VAC |
| Frequency | 50/60 Hz |
| UN | 2300 V DC / 1400 V AC |
| Maximum Fault Current | 10 kA |
| Protection | Internally protected |
| Terminal Torque | Maximum 9 Nm |
| Temperature Range | -25°C...+85°C |
| Construction Marking | Castor oil, SH |
| Standard | IEC 61071 |
| Country of Origin | Made in Germany |
Apexon Supply provides B2B procurement support, technical identification, and replacement sourcing assistance for ELECTRONICON capacitors. Buyers should compare the capacitance, voltage ratings, frequency, temperature range, protection, and terminal requirements with the installed component.
Submit ELECTRONICON CAT# E62.M14-203C20, the required quantity, and application requirements for RFQ support. Most qualified RFQs receive a response or quote within 12 hours.
