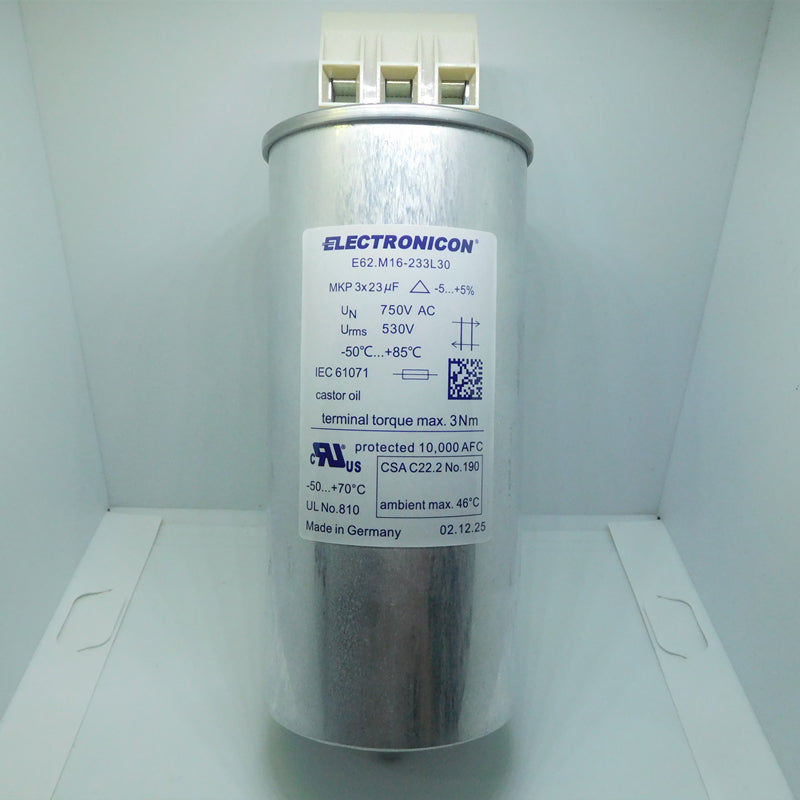

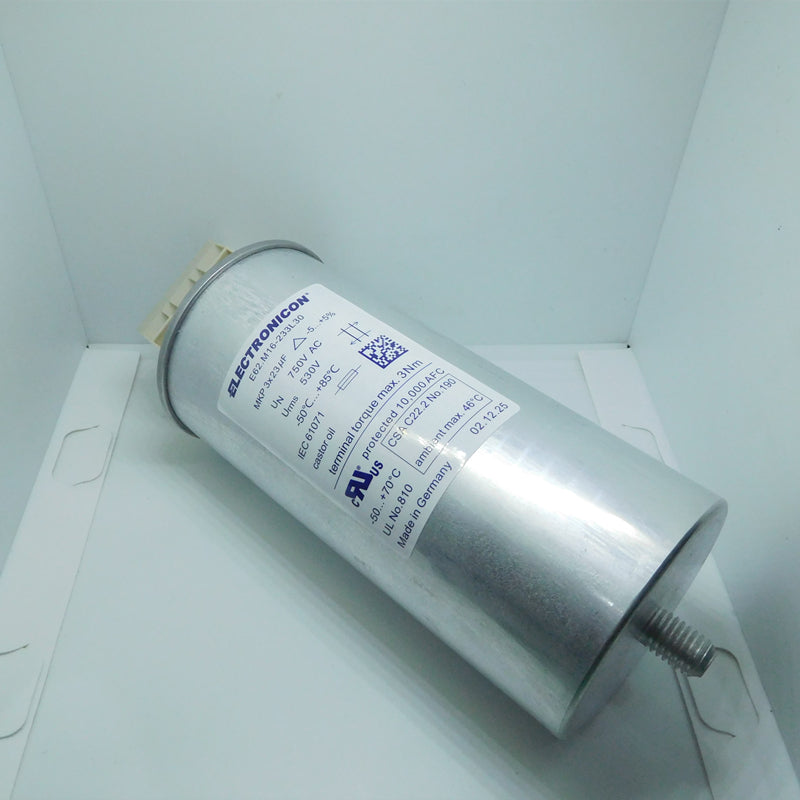

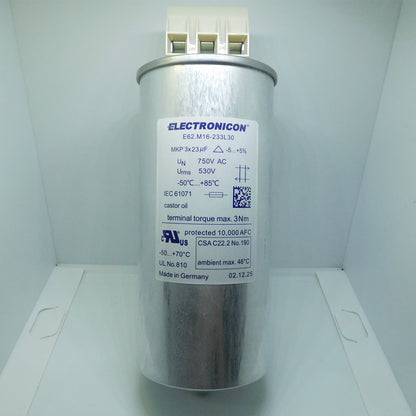

Electronicon E62.M16-233L30 3-Phase MKP AC Capacitor, 3x23µF, 750V AC
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The Electronicon E62.M16-233L30 is a heavy-duty 3-phase MKP AC filter capacitor designed for industrial power electronics, AC filtering, harmonic mitigation, power factor correction, UPS systems, wind power systems, inverters, drives, and electrical control cabinets. This model features 3 × 23 µF capacitance, 750V AC rated voltage, 530V RMS voltage, internal delta connection, low ESR construction, plant oil filling, CAPAGRIP™ screw terminals, and integrated BAM™ overpressure protection.
| Product ID (MPN) | E62.M16-233L30 |
| Brand | Electronicon |
| Series / Type | E62-3ph Heavy Duty Three-Phase AC Filter Capacitor |
| Product Category | 3-Phase MKP AC Filter Capacitor |
| Capacitance | 3 × 23 µF |
| Connection Type | Internal Delta Connection |
| Rated AC Voltage | 750V AC |
| RMS Voltage | 530V |
| Series Resistance | 3 × 1.2 mΩ |
| Self-Inductance | 100 nH |
| Thermal Resistance | 4.7 K/W |
| Maximum Continuous Current | 3 × 56 A |
| Surge Current | 0.86 kA |
| Short-Circuit Current | 2.5 kA |
| Dimensions | 75 × 164 mm |
| Design / Terminal | L3 CAPAGRIP™ Screw Terminal, 2 × 25 mm², M5, TORX T20 |
| Weight | 0.8 kg |
| Operating Temperature | -50°C to +85°C |
| Capacitance Tolerance | ±5% |
| Dissipation Factor | 2 × 10⁻⁴ |
| Standards | IEC 61071, UL810, CSA 22.2 No.190 |
This Electronicon E62-3ph capacitor is commonly used in AC filter circuits, harmonic mitigation systems, power factor correction, UPS equipment, wind power converters, industrial drives, inverters, frequency converters, power electronics cabinets, and high-reliability electrical systems. It is suitable for maintenance, repair, replacement sourcing, and equipment refurbishment projects where exact capacitance, voltage rating, current capacity, terminal configuration, and dimensions are important.
Apexon Supply supports B2B sourcing for Electronicon capacitors and hard-to-find industrial capacitor parts. If you are replacing an existing capacitor, please provide the part number, capacitance, voltage rating, photos of the nameplate, terminal type, dimensions, quantity, and equipment information. Our team can help check availability, technical specifications, and possible replacement options.
For RFQ, bulk purchasing, proforma invoice, bank wire payment, or international delivery support, please contact our sales team.
