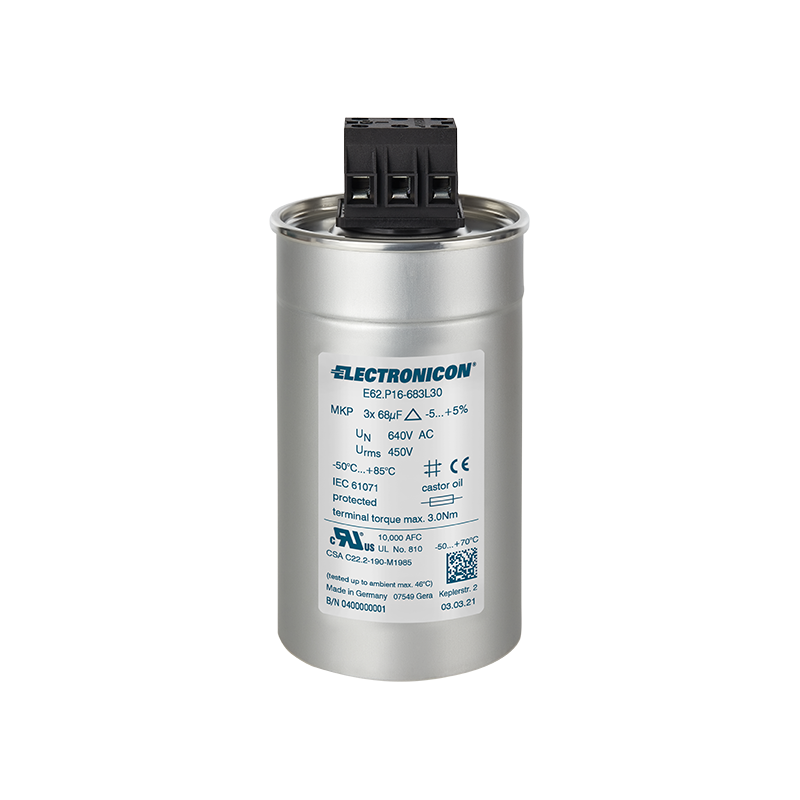

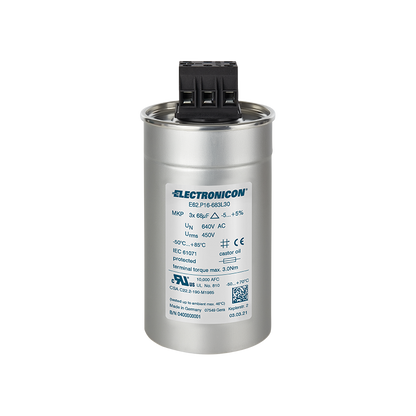

ELECTRONICON E62.P16-683L30 MKP Power Capacitor, 3×68 µF, 640 V AC
Regular price
$220.00 USD
Regular price
Sale price
$220.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
ELECTRONICON E62.P16-683L30 is a three-phase MKP power capacitor developed for demanding AC and inverter applications. It integrates three polypropylene film elements of 68 µF each in delta configuration, delivering reliable reactive power at a rated voltage of 640 V AC. Castor-oil impregnation, wide operating temperature capability, and compliance with IEC 61071 ensure dependable service life in industrial power electronics.
- Three polypropylene film elements (3 × 68 µF) in delta connection
- Rated voltage 640 V AC (450 V RMS)
- Capacitance tolerance −5 % … +5 %
- Wide operating temperature −50 °C … +85 °C
- Castor-oil impregnated, low-loss MKP technology
- Certified to IEC 61071, UL 810, CSA C22.2-190; 10 000 AFC protection
| Product ID | E62.P16-683L30 |
| Capacitance | 3 × 68 µF |
| Capacitance Tolerance | −5 % … +5 % |
| Rated Voltage (UN) | 640 V AC |
| Rated RMS Voltage (Urms) | 450 V AC |
| Operating Temperature Range | −50 °C … +85 °C |
| Dielectric | Polypropylene (MKP) |
| Configuration | Delta (Δ) |
| Impregnation Medium | Castor oil |
| Terminal Torque (max) | 3.0 Nm |
| Standard / Certification | IEC 61071, UL 810, CSA C22.2-190 |
| Protection Rating | 10 000 AFC |
| Country of Origin | Germany |
