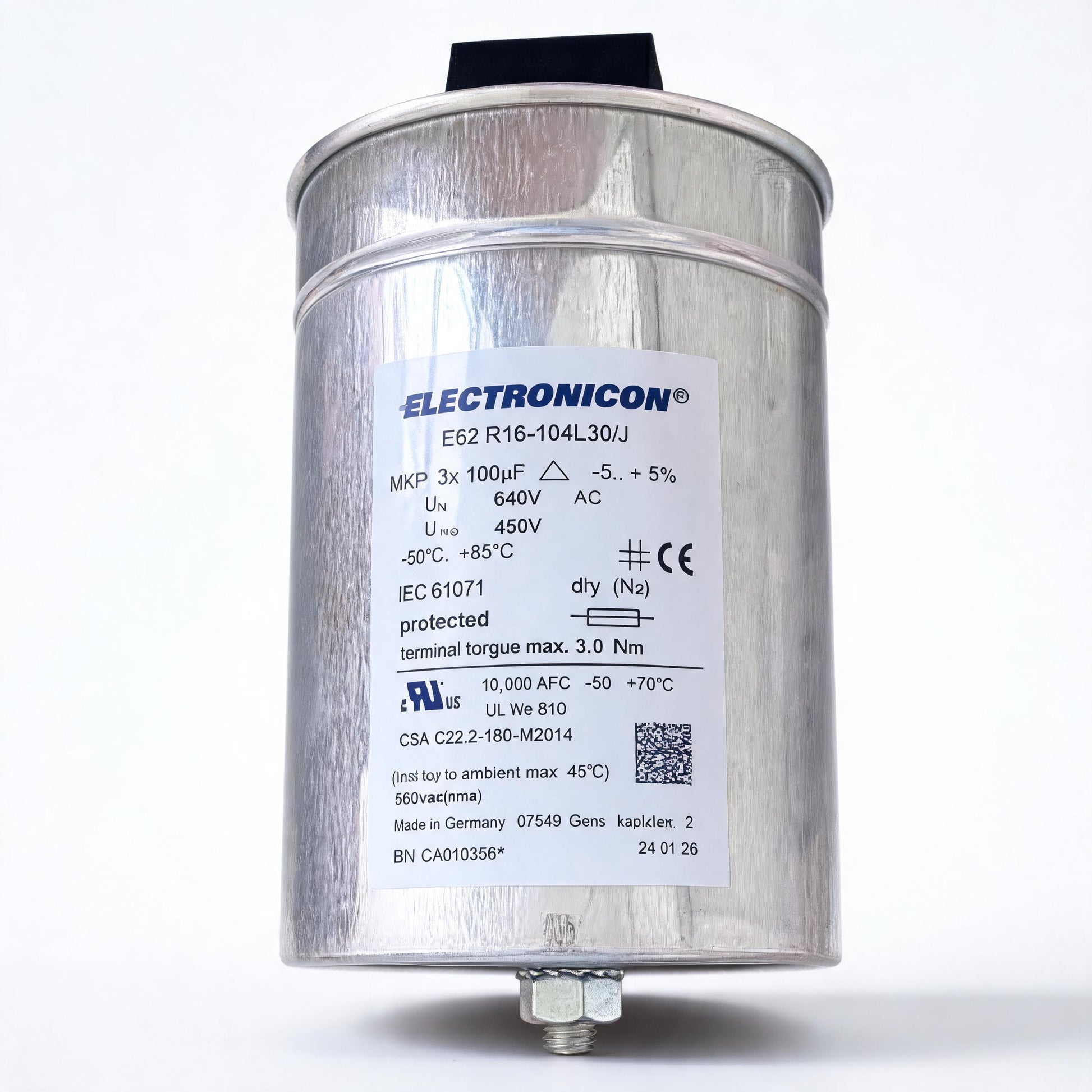

ELECTRONICON E62.R16-104L30/J MKP Power Capacitor, 3×100 µF, 640 V AC
Regular price
$250.00 USD
Regular price
Sale price
$250.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
ELECTRONICON E62.R16-104L30/J is a three-phase MKP power capacitor designed for demanding AC applications such as DC-link and inverter circuits. It features three polypropylene film elements of 100 µF each, connected in delta configuration, delivering a total reactive power solution at a rated voltage of 640 V AC. Castor-oil impregnation, wide temperature endurance, and compliance with IEC 61071 make this unit highly reliable for industrial power electronics.
- Three polypropylene film elements (3 × 100 µF) in delta configuration
- Rated voltage 640 V AC (450 V RMS)
- Wide operating temperature range −50 °C … +85 °C
- Low loss MKP technology with castor-oil impregnation
- Complies with IEC 61071 and UL 810 standards
- Made in Germany for high manufacturing quality
| Product ID | E62.R16-104L30/J |
| Capacitance | 3 × 100 µF |
| Capacitance Tolerance | −5 % … +5 % |
| Rated Voltage (UN) | 640 V AC |
| Rated RMS Voltage (Urms) | 450 V AC |
| Operating Temperature Range | −50 °C … +85 °C |
| Dielectric | Polypropylene (MKP) |
| Impregnation Medium | Castor oil |
| Terminal Torque (max) | 3.0 Nm |
| Standard / Certification | IEC 61071, UL 810, CSA C22.2-190 |
| Protection Rating | 10 000 AFC |
| Country of Origin | Germany |
