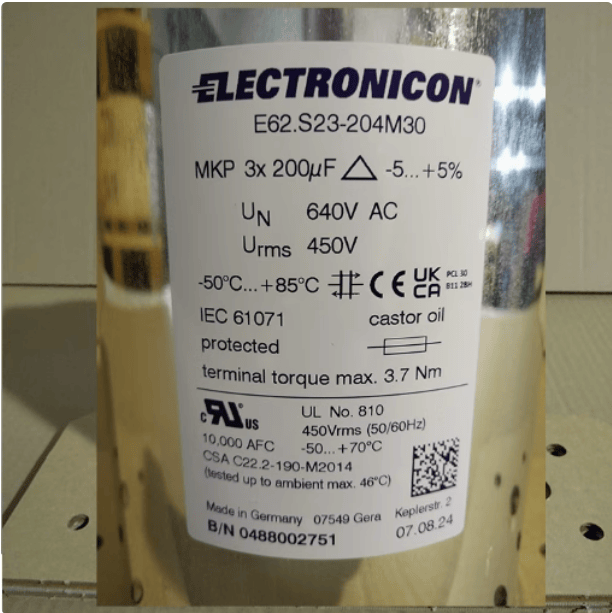

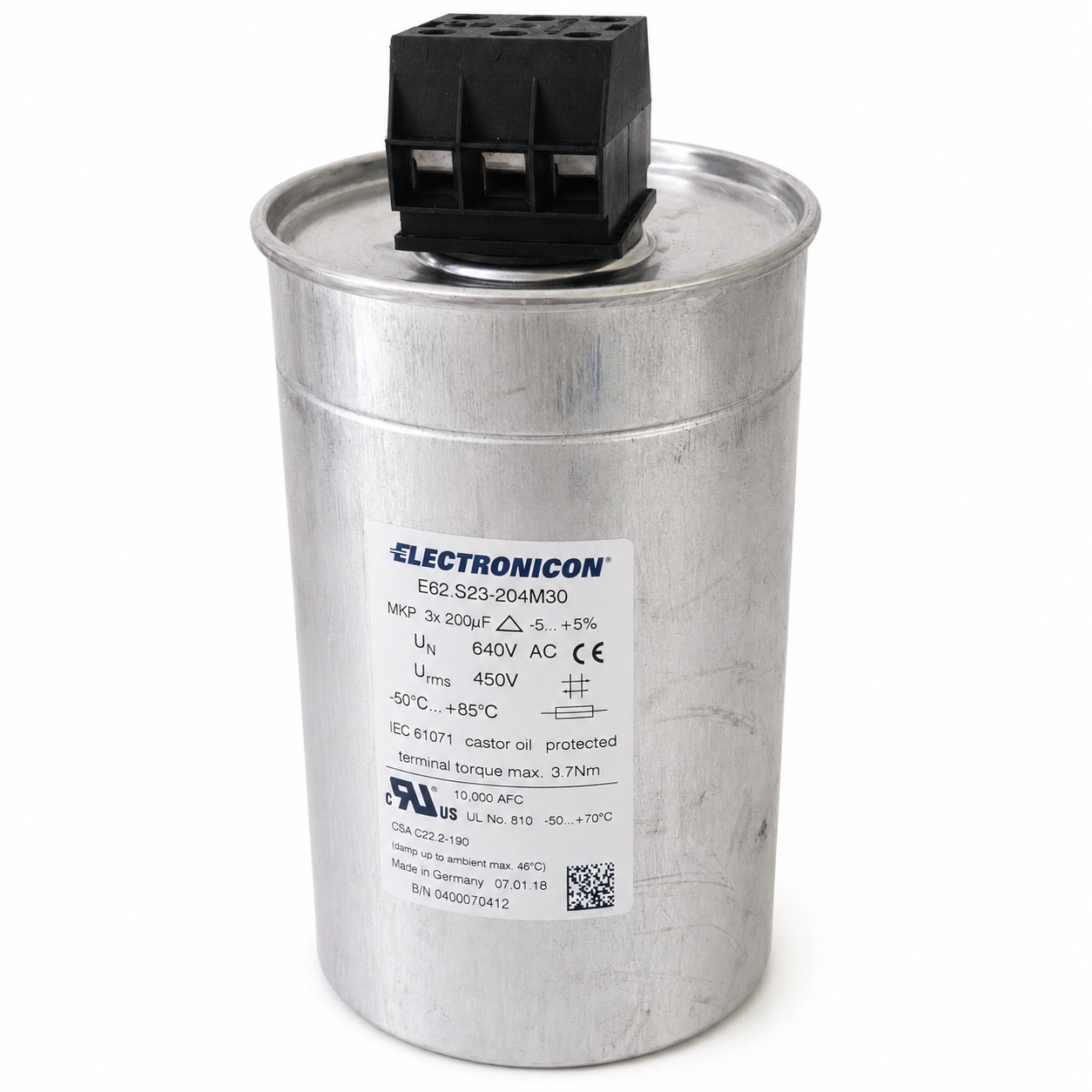

ELECTRONICON E62.S23-204M30 3*200uF 640VAC Capacitor
Regular price
$220.00 USD
Regular price
Sale price
$220.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The ELECTRONICON E62.S24-204M30 is a heavy-duty three-phase AC filter capacitor from the E62-3ph series, engineered for extreme operating conditions. It features three 200µF sections internally connected in a delta configuration, with a high 1200V AC rating. Designed for applications such as harmonic filtering in three-phase mains, wind power, and UPS systems, it offers high RMS and surge current strength, low series resistance, and integrated overpressure protection (BAM™) for safe, reliable operation.
Key Features
- Heavy-duty three-phase AC filter capacitor
- Three independent 200 microfarad (µF) sections
- High voltage rating of 1200 Volts AC
- Internally connected in delta configuration
- Low series resistance and inductance for high-frequency filtering
- Integrated overpressure protection (BAM™) for safety
- Designed for wind power, UPS, and harmonic filtering applications
- Plant oil filling for optimized heat dissipation (dry option available)
Technical Specifications
| Product ID | E62.S24-204M30 |
| Series | E62-3ph |
| Configuration | 3 Sections (Delta) |
| Capacitance per Section | 200 µF |
| Rated Voltage (UN) | 1200 V AC |
| Rated Voltage (Urms) | 850 V |
| Series Resistance (RS) | 0.55 mΩ |
| Thermal Resistance (Rth) | 1.7 K/W |
| Max. Current (Imax) | 3.5 A |
| Surge Current (Î) | 10.5 kA |
| Dimensions (D₁ × L₁) | 136 × 245 mm |
| Terminal Type | M3 (2x50mm², M6, TORX T20) |
| Operating Temperature | -50 ... +85°C |
| Capacitance Tolerance | ±5% |
