ELECTRONICON E62.R16-253L30 MKP Power Capacitor, 3x25uF, 1200V AC
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)

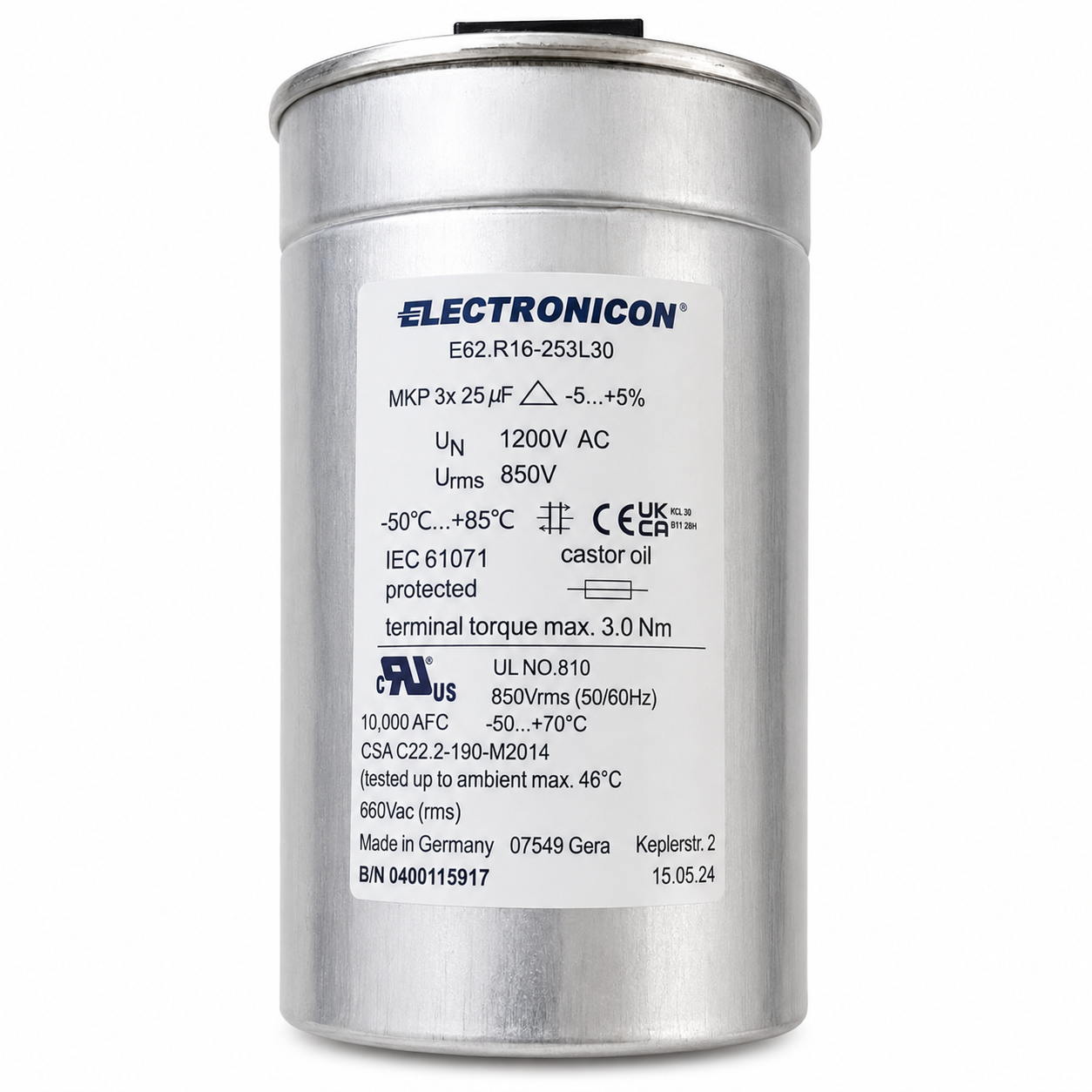

ELECTRONICON E62.R16-253L30 is an MKP power capacitor identified from the product label with 3x25uF capacitance, delta connection, and 1200V AC rated voltage. It is used in industrial power and energy applications where verified capacitor specifications support procurement review, replacement sourcing, and technical comparison.
| Brand | ELECTRONICON |
| MPN | E62.R16-253L30 |
| Capacitor Type | MKP |
| Capacitance | 3x25uF |
| Tolerance | -5% to +5% |
| Connection | Delta |
| Rated Voltage | UN 1200V AC |
| RMS Voltage | Urms 850V |
| UL RMS Voltage | 850Vrms, 50/60Hz |
| CSA RMS Voltage | 660Vac rms |
| Temperature Range | -50°C to +85°C |
| UL Temperature Range | -50°C to +70°C |
| Standard | IEC 61071 |
| Protection / Filling | Castor oil protected |
| Terminal Torque | Max. 3.0Nm |
| Markings | CE, UKCA, cRUus, UL No. 810, CSA C22.2-190-M2014 |
| AFC Rating | 10,000 AFC |
| Secondary ID | B/N 0400115917 |
Typical applications include industrial capacitor replacement, power electronics service, filtering, compensation, and maintenance of electrical power systems where the original equipment requirements match the verified label data.
Apexon Supply provides B2B sourcing and replacement support for ELECTRONICON E62.R16-253L30, helping procurement teams compare verified specifications and confirm technical alignment before purchase.
Send the MPN, required quantity, and application requirements to request a B2B quote for sourcing support.
