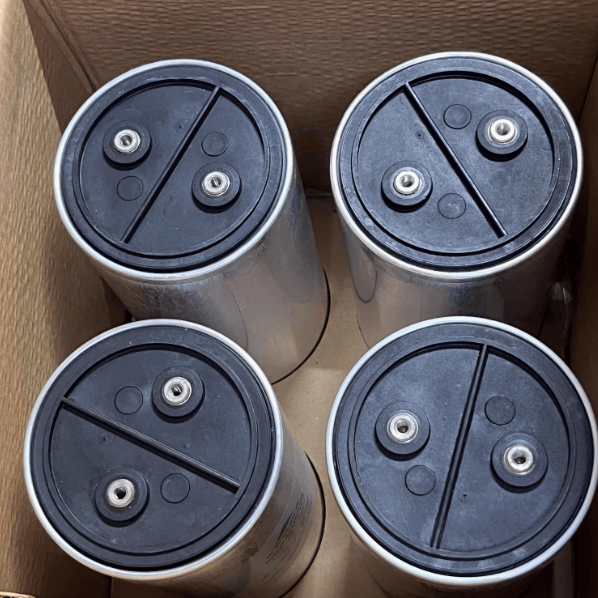

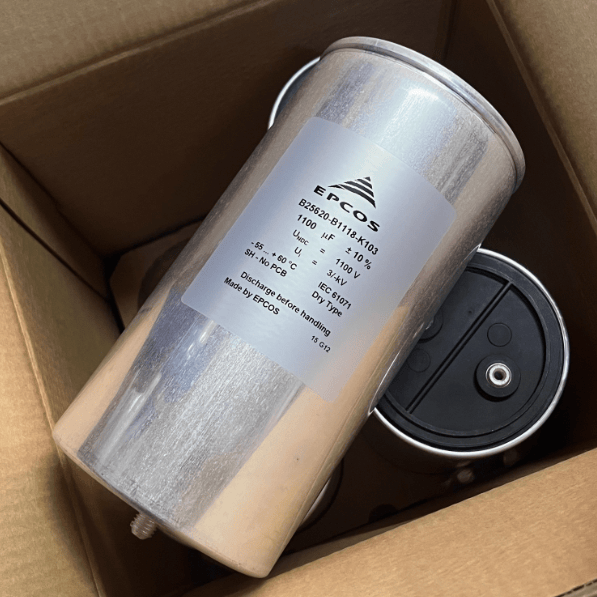

EPCOS B25620-B1118-K103 B25620 Series DC Link Power Film Capacitor, 1100 µF, 1100 V DC
Regular price
$120.00 USD
Regular price
Sale price
$120.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The EPCOS B25620-B1118-K103 is a high-reliability dry-type DC link power film capacitor engineered for demanding industrial power electronics and inverter applications. Featuring self-healing dielectric technology and strict compliance with IEC 61071 metrology standards, this component ensures stable DC voltage filtering and robust energy storage with a nominal capacity of 1100 µF at 1100 V DC. It is constructed entirely without environmentally hazardous PCBs and is rated for a wide operational temperature range.
| Product ID (MPN) | B25620-B1118-K103 |
| Nominal Capacitance | 1100 µF |
| Capacitance Tolerance | ± 10% |
| Rated DC Voltage (UNDC) | 1100 V |
| Insulation Voltage (Ui) | 3 kV |
| Standard Compliance | IEC 61071 |
| Construction Technology | Dry Type, Self-Healing (SH) |
| Dielectric Feature | No PCB |
| Operating Temperature Range | -55°C to +60°C |
