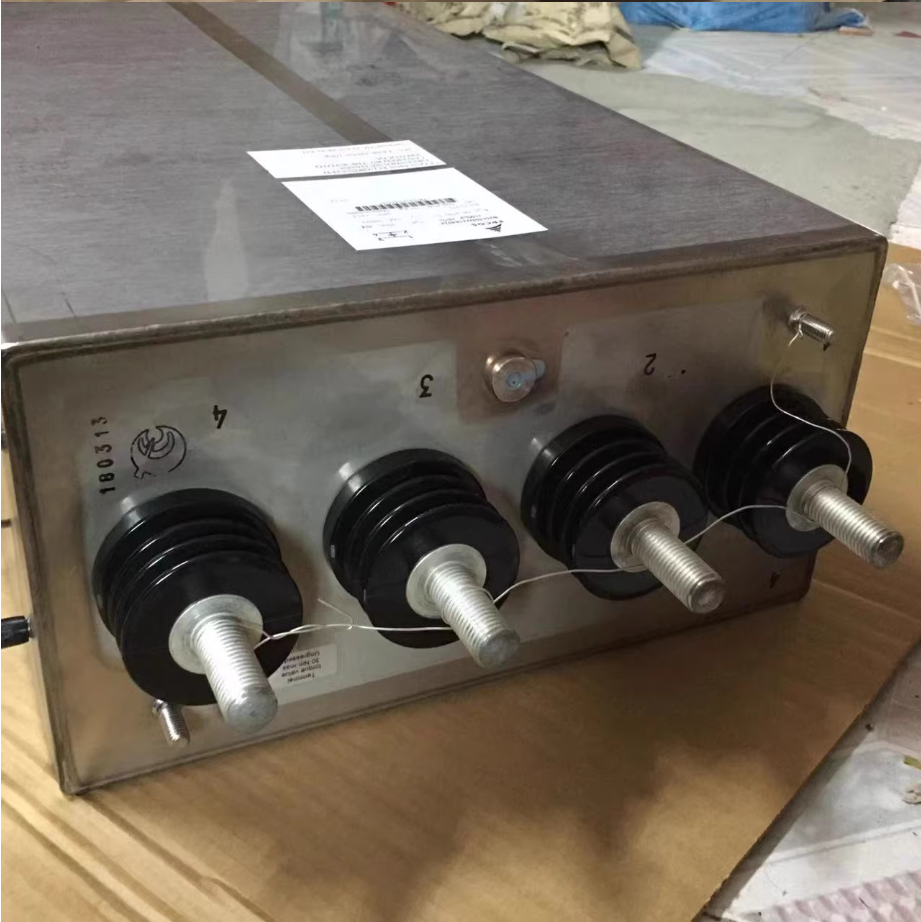

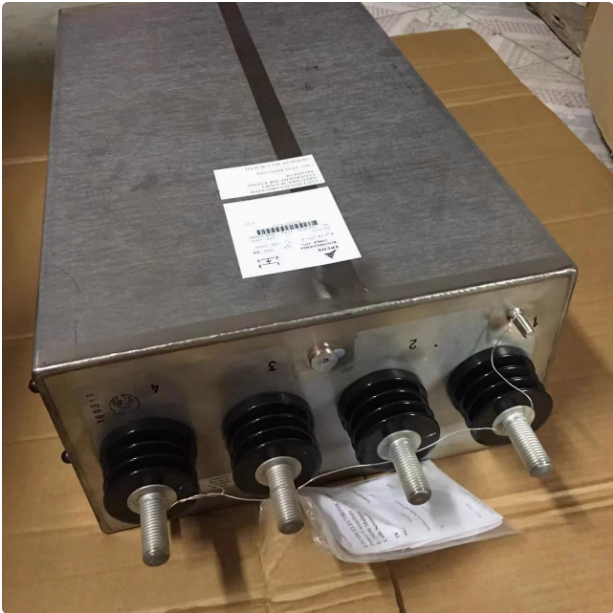

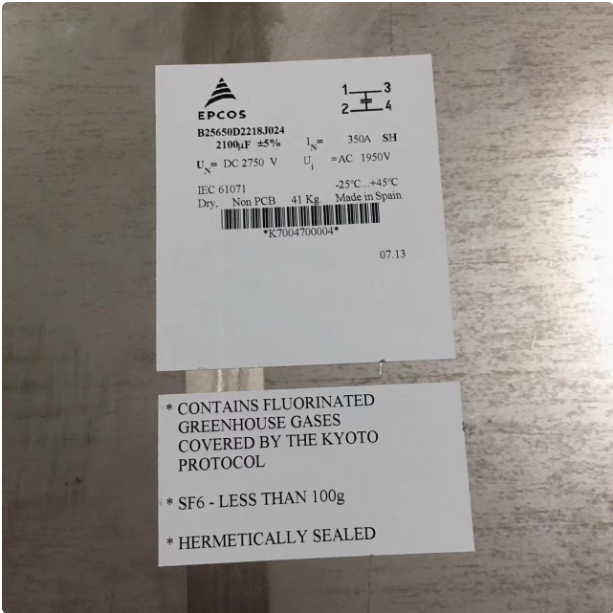

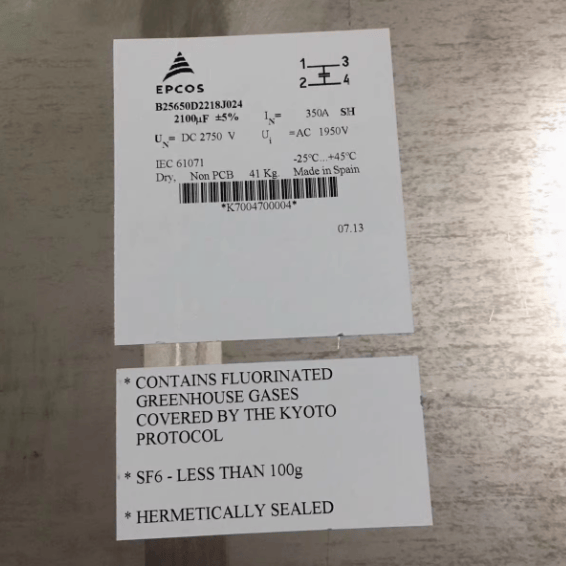

EPCOS B25650D2218J024 / K7004700004 DC Link Power Capacitor, 2100 µF, 2750V DC
Regular price
$2,000.00 USD
Regular price
Sale price
$2,000.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The EPCOS B25650D2218J024 is an industrial-grade, hermetically sealed DC link power capacitor engineered for robust energy storage and filtering in demanding power electronic applications. Rated for 2100 µF capacitance and built to handle up to 2750V DC and 350A nominal current, this component ensures sustained high reliability and thermal stability. Filled with trace amounts of SF6 gas (less than 100g) over a dry, non-PCB dielectric, it strictly adheres to IEC 61071 standards, making it the ideal replacement choice for high-power inverters, traction drives, and advanced grid infrastructure systems.
| Product ID (MPN) | B25650D2218J024 |
| Order Code | K7004700004 |
| Capacitance | 2100 µF ±5% |
| Nominal Voltage (UN) | 2750 V DC |
| Insulation Voltage (Ui) | 1950 V AC |
| Nominal Current (IN) | 350 A |
| Operating Temperature Range | -25°C ... +45°C |
| Dielectric Type | Dry, Non PCB (Contains <100g SF6 Gas) |
| Enclosure Protection | Hermetically Sealed |
| Compliance Standard | IEC 61071 |
| Weight | 41 kg |
| Country of Origin | Spain |
