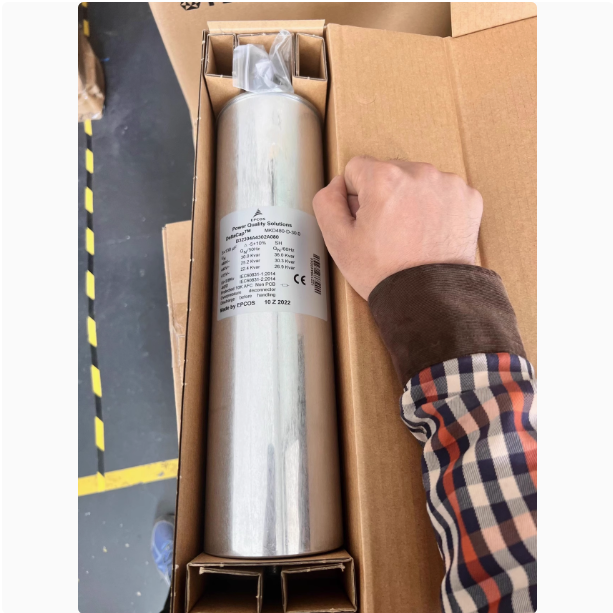

EPCOS TDK B32304A4302A080 DeltaCap MKD PFC Capacitor, 30 kvar, 480 V AC
Regular price
$600.00 USD
Regular price
Sale price
$600.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The EPCOS TDK B32304A4302A080 is a heavy-duty Power Factor Correction (PFC) capacitor from the DeltaCap series (Type MKD480-D-30.0). Designed for rigorous 3-phase industrial AC applications, this component utilizes stacked winding technology with a semi-dry, biodegradable resin impregnation, ensuring environmental compliance (RoHS/Halogen Free). The unit features a robust 3-terminal design with integrated discharge resistors and an extruded aluminum housing. Typical applications include power factor correction in automatic capacitor banks and fixed compensation systems.
| Product ID | B32304A4302A080 |
| Brand | EPCOS (TDK) |
| Series | DeltaCap |
| Type | MKD480-D-30.0 |
| Product Status | Production |
| Rated Voltage | 480 V AC |
| Output Power (50 Hz) | 30.0 kvar |
| Output Power (60 Hz) | 36.0 kvar |
| Rated Capacitance | 138 µF |
| Application | 3-phase AC industrial applications, Power Factor Correction |
| Diameter | 96 mm |
| Height | 350 mm |
| Impregnation | Semi-dry biodegradable resin |
| Winding Technology | Stacked |
| Terminal Properties | 3-terminal design |
| Safety Features | Integrated resistor |
| Environmental Compliance | RoHS, Halogen Free |
