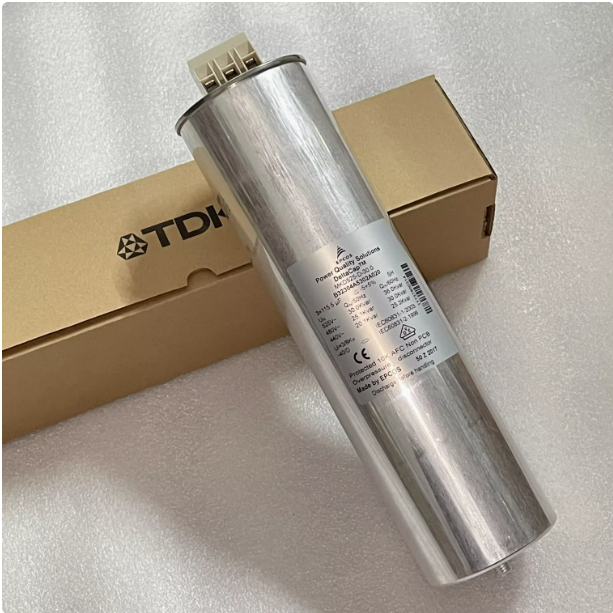

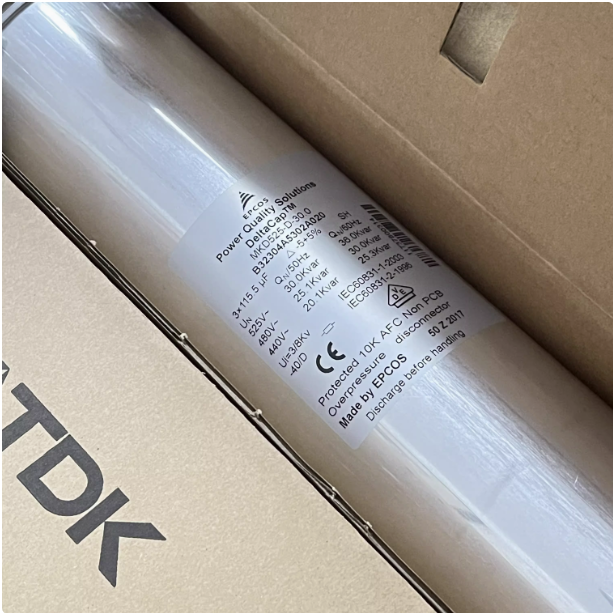

TDK B32304A5302A020 / MKD525-D-30.0 DeltaCap 3-Phase Capacitor, 525VAC, 30kvar
Regular price
$400.00 USD
Regular price
Sale price
$400.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The TDK B32304A5302A020 (Type MKD525-D-30.0) is a premium DeltaCap 3-phase capacitor engineered for Power Factor Correction (PFC) in demanding AC industrial applications. Constructed with a stacked winding configuration and impregnated with semi-dry biodegradable resin, this unit features a robust 3-terminal design and an integrated resistor to ensure optimal performance and operational safety.
| Product ID (MPN) | B32304A5302A020 |
| Order Code | MKD525-D-30.0 |
| Product Series | DeltaCap™ 3-phase |
| Rated Voltage | 525 VAC |
| Output (50Hz) | 30 kvar |
| Output (60Hz) | 36 kvar |
| Capacitance | 115 µF |
| Primary Application | Power Factor Correction / 3-phase AC industrial applications |
| Impregnation | Semi-dry biodegradable resin |
| Winding Type | Stacked |
| Hardware Features | 3-terminal design, integrated resistor |
| Diameter | 96 mm |
| Height | 350 mm |
| Compliance | RoHS, Halogen Free |
