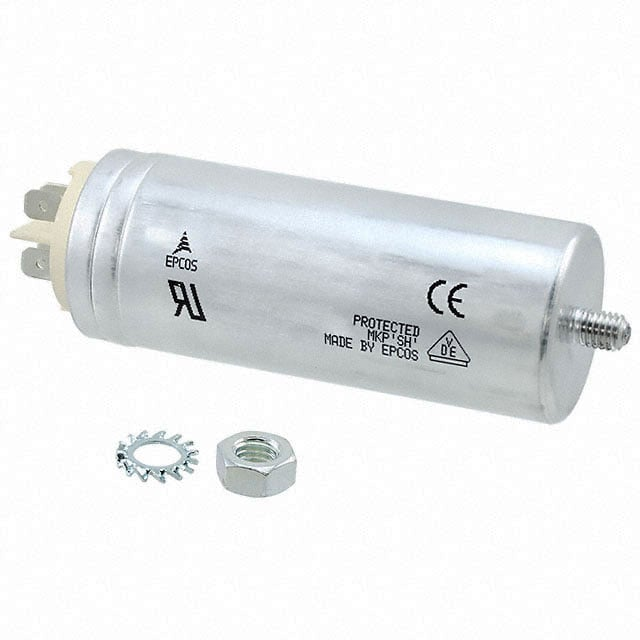

EPCOS B32332I6206J081 Motor Run Capacitor, 20 µF ±5%, 450 V AC
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
EPCOS B32332I6206J081 is a general-purpose motor run capacitor from the B32332 type series, with verified 20 µF ±5% capacitance and a 450 V AC rated voltage. This product page supports procurement review, replacement sourcing, and technical comparison for industrial motor and power applications.
| Brand | EPCOS |
| MPN | B32332I6206J081 |
| Type | B32332 |
| Product Category | Motor Run and Motor Start Capacitor |
| Application | General purpose |
| Capacitance | 20 µF ±5% |
| Rated Voltage | 450 V AC |
| Size | 30 mm diameter x 93 mm length |
| Life Expectancy | 30000 h to IEC 60252-1 |
| Safety Class | S2 to IEC 60252-1 |
| Approvals | CQC, TÜV, UL, VDE |
| Max. Temperature | 85°C to IEC 60068-1 |
| Terminals | Fast-on |
| Construction | Aluminum can with bolt, UL 94 V2/V0 top |
| Environmental Compliance | RoHS, REACH SVHC-Free, Pb Free |
This motor run capacitor is typically used for general-purpose motor capacitor applications where capacitance, AC voltage rating, terminal style, construction, approvals, and dimensional fit must be checked against equipment requirements.
Apexon Supply provides B2B sourcing and replacement support for EPCOS B32332I6206J081, helping procurement teams review verified specifications and confirm technical alignment before RFQ submission.
Send the MPN, required quantity, and application requirements to request a B2B quote and confirm sourcing options for this motor run capacitor.
