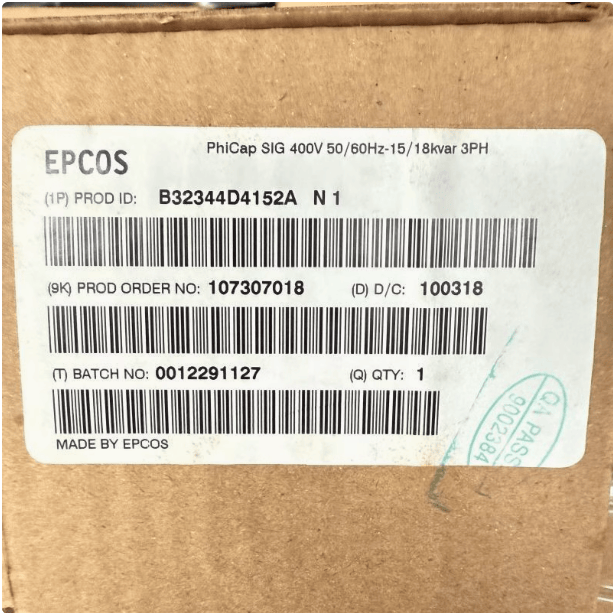

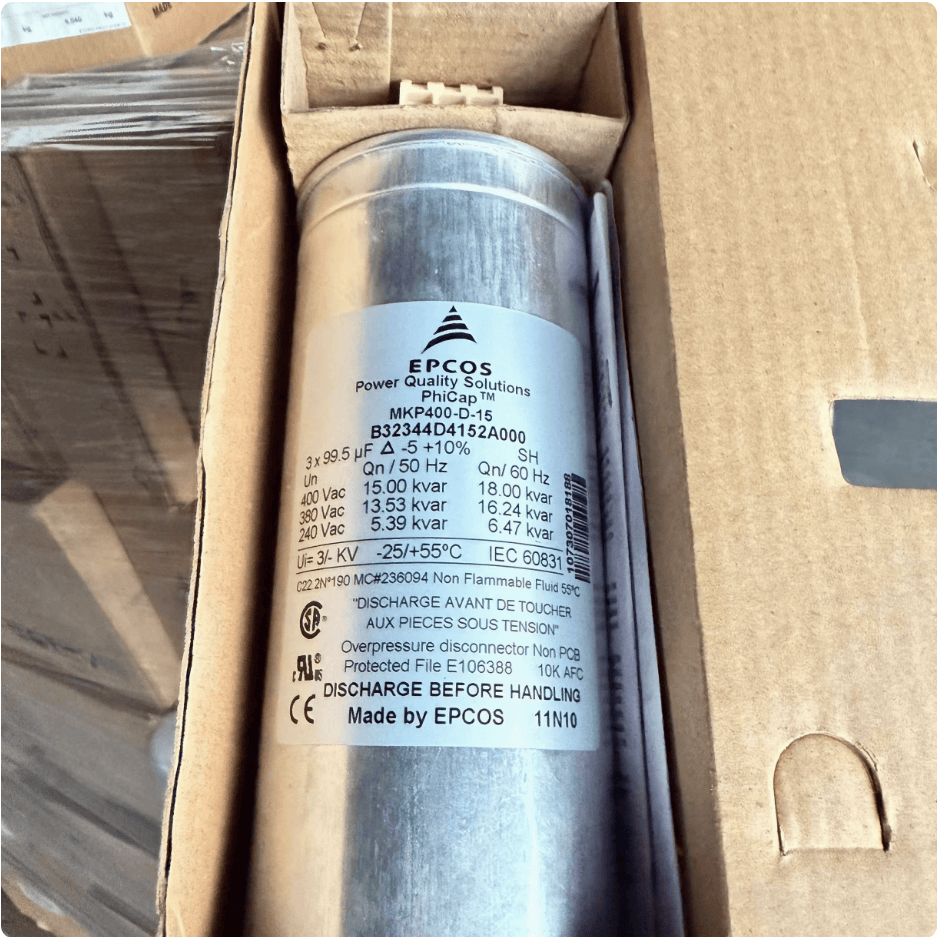

EPCOS B32344E4152A000 MKP400-D-15.0 PhiCap Three-Phase PFC Capacitor, 3x99.5µF, 400VAC, 15.0kvar
Regular price
$160.00 USD
Regular price
Sale price
$160.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The EPCOS B32344E4152A000 is a three-phase, delta-connected power factor correction (PFC) capacitor from the PhiCap MKP400-D series. It features a metallized polypropylene film dielectric, self-healing technology, and a triple safety system including an overpressure disconnector. Designed for industrial PFC applications, this capacitor provides 15.0 kvar at 50 Hz to improve power factor and reduce energy losses in electrical distribution systems.
- Three-phase, delta-connected capacitor bank in a single can.
- Self-healing metallized polypropylene film (MKP) dielectric.
- Triple safety system with overpressure disconnector.
- Pre-mounted ceramic discharge module for safe handling.
- Non-PCB, semi-dry biodegradable resin impregnation.
- Optimized safety terminals and IP20 protection degree.
| Product ID | B32344E4152A000 |
| Rated Capacitance (Total) | 3 x 99.5 µF (Delta) |
| Rated Voltage (VN) | 400 V AC |
| Rated Output (50 Hz) | 15.0 kvar |
| Rated Output (60 Hz) | 18.0 kvar |
| Rated Current (IR @ 50 Hz) | 21.7 A |
| Series / Type | MKP400-D-15.0 (PhiCap) |
| Connection | Delta (3-Phase) |
| Capacitance Tolerance | -5% / +10% |
| Maximum Current (Imax) | 1.4 x IR (incl. harmonics) |
| Surge Current (Is) | 200 x IR |
| Series Resistance (RS) | 3.2 mΩ |
| Dissipation Factor (tan δ0) | 0.2 W / kvar |
| Case Dimensions (d x h) | 85 x 198 mm |
| Weight | 0.8 kg |
| Operating Temperature Range | -40°C to +55°C (Tamb), Ths ≤ +85°C |
| Mounting / Fixing | Threaded stud M12 (bottom), Max torque 10 Nm |
| Standards | IEC 60831-1/2, UL 810 (cUL file 106388) |
