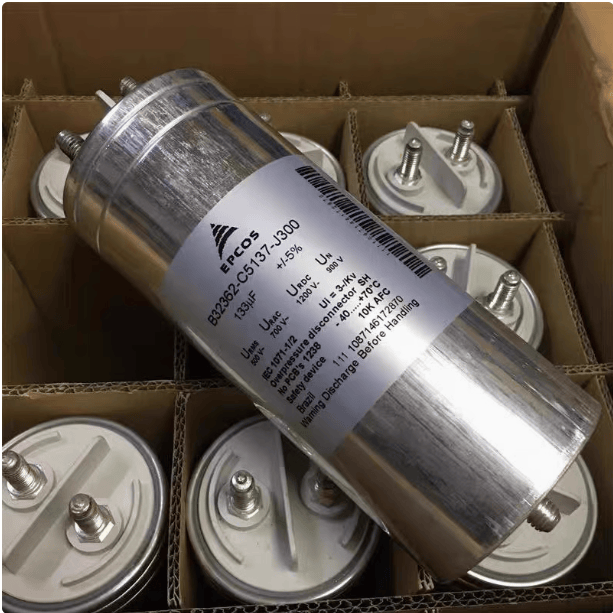

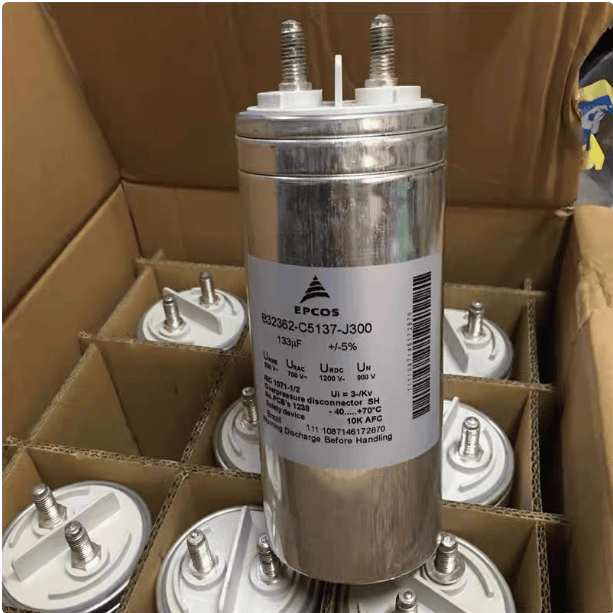

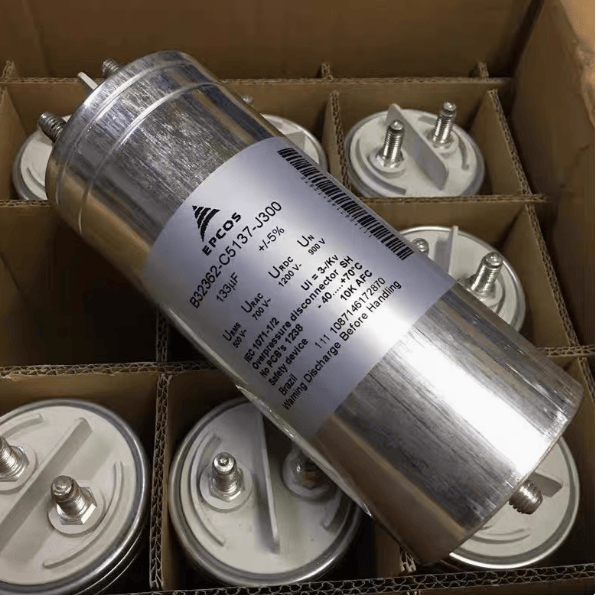

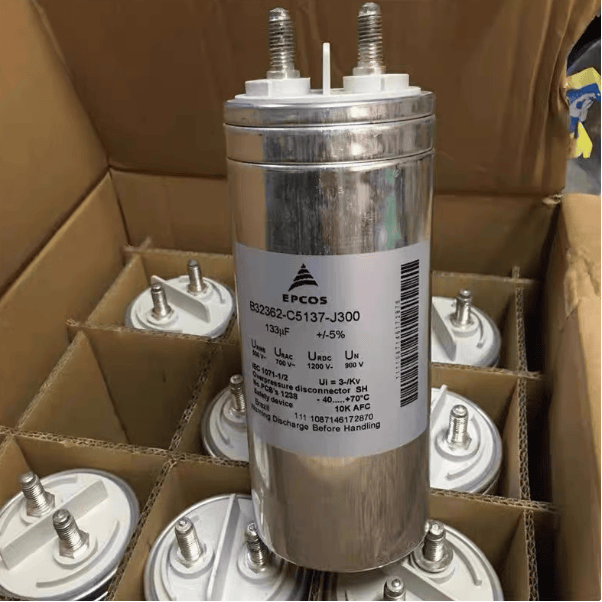

EPCOS B32362-C5137-J300 Power Electronic Capacitor, 133 µF, 500 VAC / 1200 VDC
Regular price
$70.00 USD
Regular price
Sale price
$70.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The EPCOS B32362-C5137-J300 is a robust power electronic capacitor engineered for demanding industrial AC/DC operations and inverter applications. Featuring a high capacitance of 133 µF and rated for up to 500 V AC and 1200 V DC, it ensures stable performance while handling maximum total RMS currents of up to 40 A. Built to IEC 61071 standard specifications with self-healing technology and an integrated overpressure disconnector, this unit delivers exceptional safety, longevity, and reliability in a durable aluminum casing with M10 screw terminals and an M12 bottom-mounting stud.
| Product ID (MPN) | B32362-C5137-J300 |
| Product Series | Power Electronic Capacitor |
| Rated Capacitance (CN) | 133 µF |
| Capacitance Tolerance | ± 5% |
| Rated AC Voltage (URAC) | 500 V (sinusoidal) |
| Rated DC Voltage (URDC) | 1200 V |
| Rated Frequency | 50 / 60 Hz |
| Max Total RMS Current | 40 A (with Harmonics) |
| Max Fundamental Frequency Current | 26 A |
| Reactive Power | 22 kvar @ 40°C |
| dv/dt Rating | 30 V / µs |
| Dissipation Factor (tan δ) | ≤ 6.0 x 10^-4 @ 50 Hz |
| Insulation Resistance (Ir) | > 1.5 GΩ |
| Safety Systems | Overpressure Disconnector, Self-healing Technology |
| Resin Filling | Non PCB, Soft Polyurethane |
| Terminals | M10 Screws (Nominal Torque: 8 Nm) |
| Mounting Base | M12 Stud |
| Dimensions (D × H) | 85 × 197 mm |
| Degree of Protection | Indoor Mounting |
| Reference Standards | IEC 61071 |
