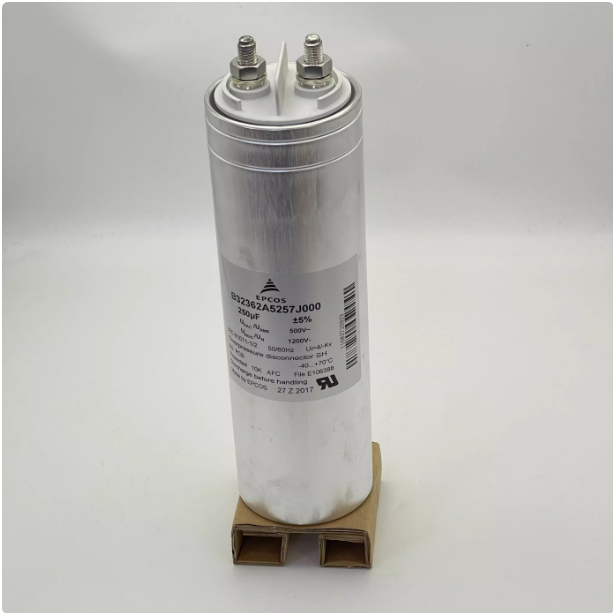

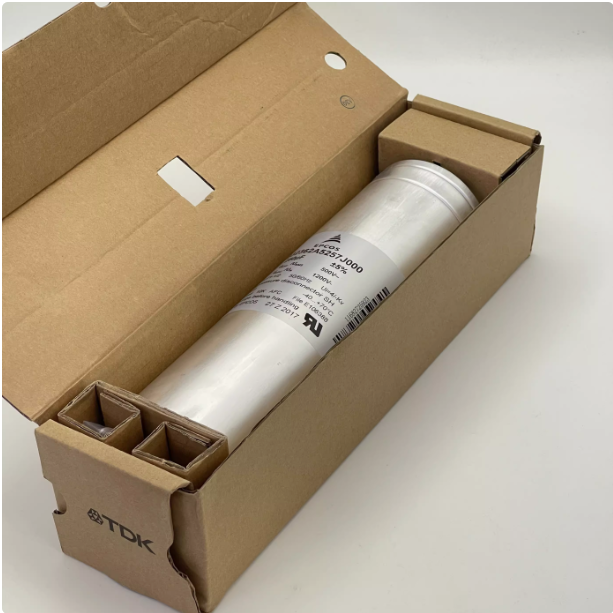

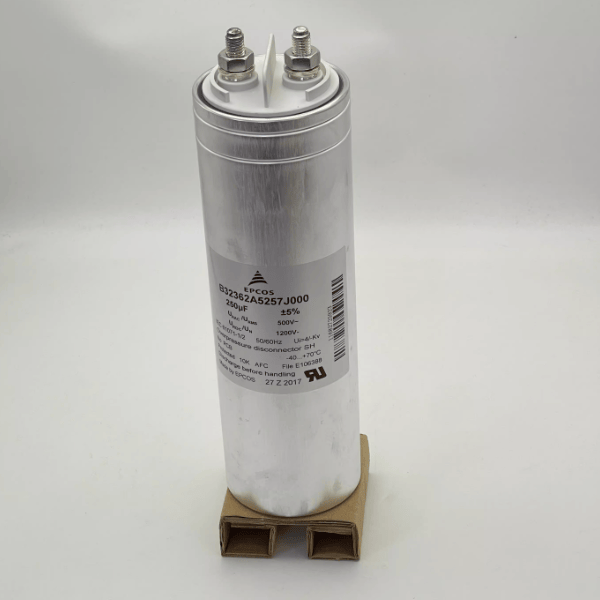

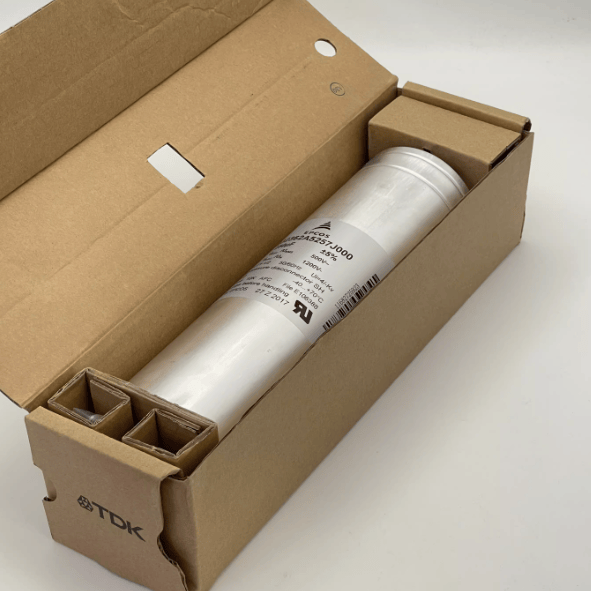

EPCOS (TDK) B32362A5257J000 MKP AC Power Capacitor, 250 µF, 500V AC (1200V DC), ±5% Tolerance, Aluminum Can
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
Product Overview
The EPCOS (TDK) B32362A5257J000 is a high-performance Metallized Polypropylene (MKP) AC capacitor designed for demanding power electronics applications. Part of the B32362 series, this component utilizes advanced self-healing film technology housed in a robust cylinder aluminum can with an integrated overpressure disconnector for enhanced safety. Engineered for AC filtering and power factor correction, it offers low dissipation and high surge current capability.
With a capacitance of 250 µF and a rated AC voltage of 500V (supporting DC applications up to 1200V), this capacitor is ideal for use in output AC filters, UPS systems, and renewable energy inverters (wind/solar). The unit features screw terminal connections for secure high-current mounting and is resin-filled (dry type / PCB-free) for environmental compliance and operational stability.
Technical Specifications
| Product ID / Ordering Code | B32362A5257J000 |
| Manufacturer Brand | EPCOS (TDK Electronics) |
| Series | B32362 (PEC MKP AC) |
| Dielectric Material | Metallized Polypropylene (MKP) |
| Capacitance (C) | 250 µF |
| Tolerance | ± 5% (J) |
| Rated Voltage (AC) | 500 V |
| Rated Voltage (DC) | 1200 V |
| Construction Type | Aluminum Can, Resin Filled (Soft Polyurethane) |
| Safety Features | Overpressure Disconnector (Self-healing) |
| Termination Style | Screw Terminals (M10 High Current) |
| Mounting | Bottom Threaded Stud (M12) |
| Diameter (D) | 85.0 mm |
| Height (H) | ~155 mm (Base to Terminal) |
| Operating Temperature | -40°C to +85°C |
| Life Expectancy | 100,000 Hours |
| RoHS Compliant | Yes |
