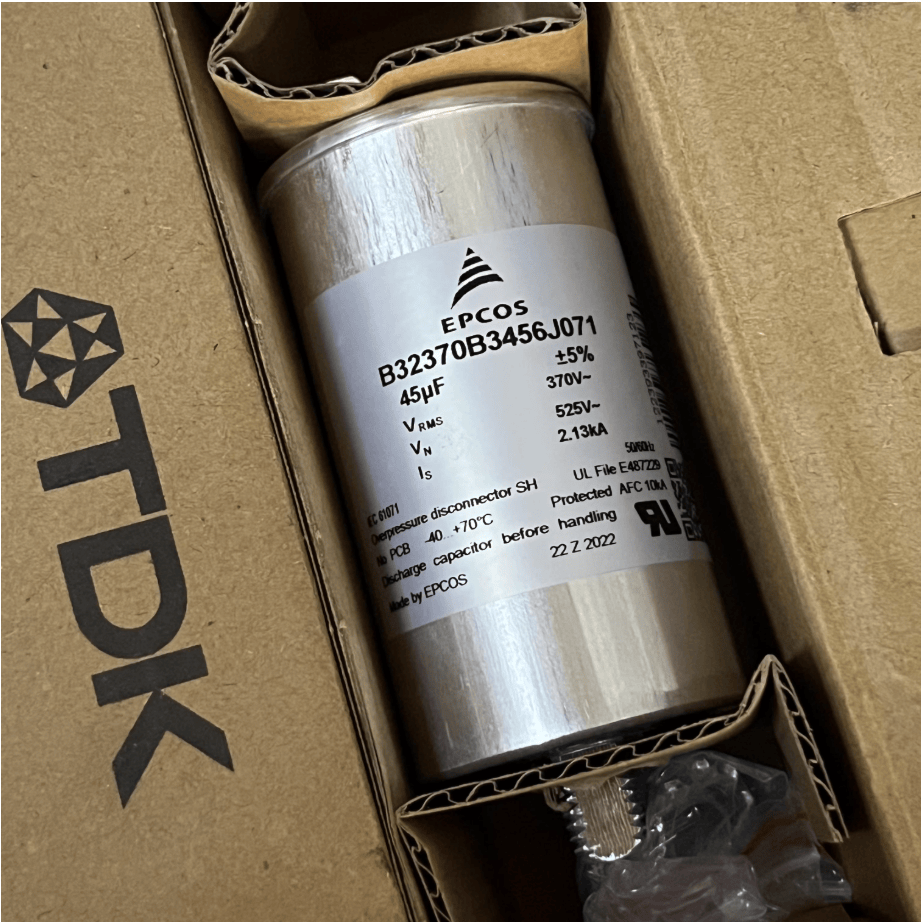

EPCOS B32370B3456J071 B32370 Series Motor Run Capacitor, 45µF, 525V AC
Regular price
$80.00 USD
Regular price
Sale price
$80.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The EPCOS B32370B3456J071 is a high-performance motor run capacitor from the B32370 series. It is designed with a self-healing polypropylene film dielectric and features a dry-type, soft polyurethane resin filling within a compact plastic case. This capacitor is engineered for safety and reliability, incorporating an overpressure safety device and meeting safety class P2 standards according to IEC 60252-1. With its low dissipation factor and dual fast-on terminals, it is an ideal choice for single-phase AC motors and other general AC applications requiring long operational life and stable performance.
| Product ID / Order Code | B32370B3456J071 |
| Manufacturer | EPCOS (TDK) |
| Series | B32370 |
| Rated Capacitance (C_R) | 45 µF |
| Capacitance Tolerance | ±5% (Code J) |
| Rated Voltage (V_R) | 525 V AC |
| Rated Frequency (f_R) | 50 / 60 Hz |
| Operating Life Class (IEC 60252-1) | Class C: 3,000 h (at 525V) |
| Safety Class | P2 |
| Technology | Film Capacitor |
| Dielectric | Polypropylene (PP) |
| Construction | Self-healing |
| Filling | Dry type, soft polyurethane resin |
| Climatic Category (IEC 60068-1) | 25/085/21 |
| Operating Temperature Range | -25 °C to +85 °C |
| Dissipation Factor tanδ (at 20°C) | ≤ 5 · 10⁻⁴ |
| Case | Plastic (PP) |
| Dimensions (Diameter x Length) | 50 mm x 125 mm |

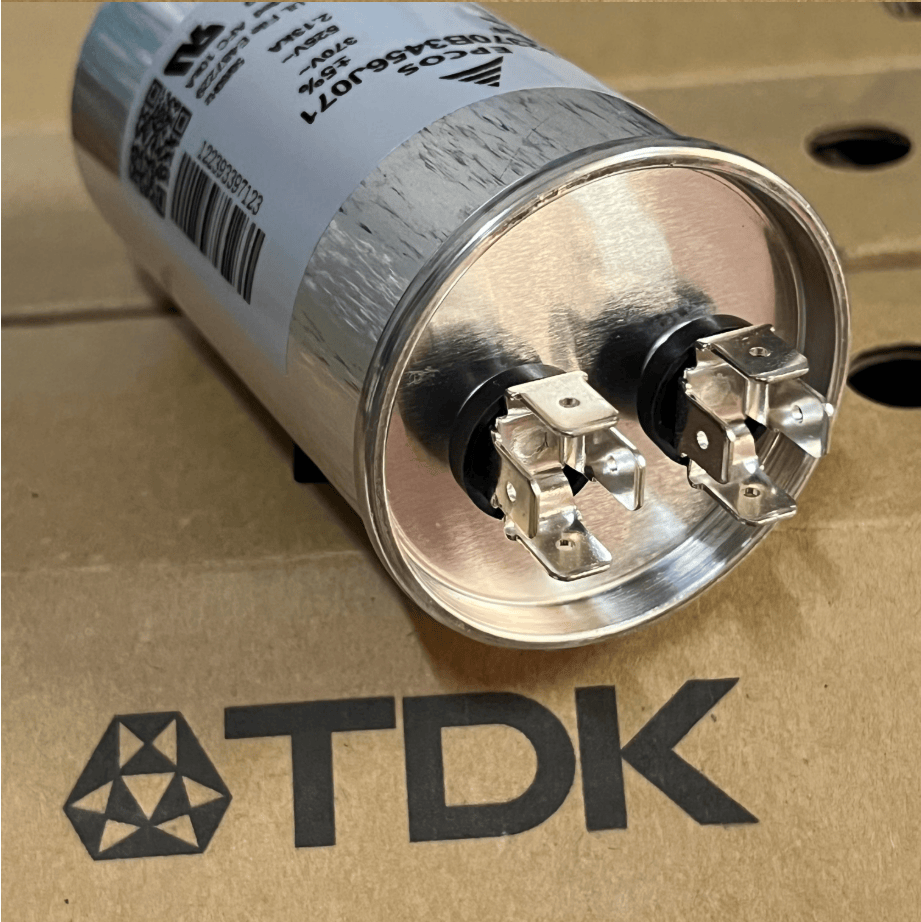

| Terminals | Fast-on terminals 6.3 mm (double) |
| Mounting | Threaded plastic stud M8 x 10 |
| Reference Standards | IEC 60252-1 |
