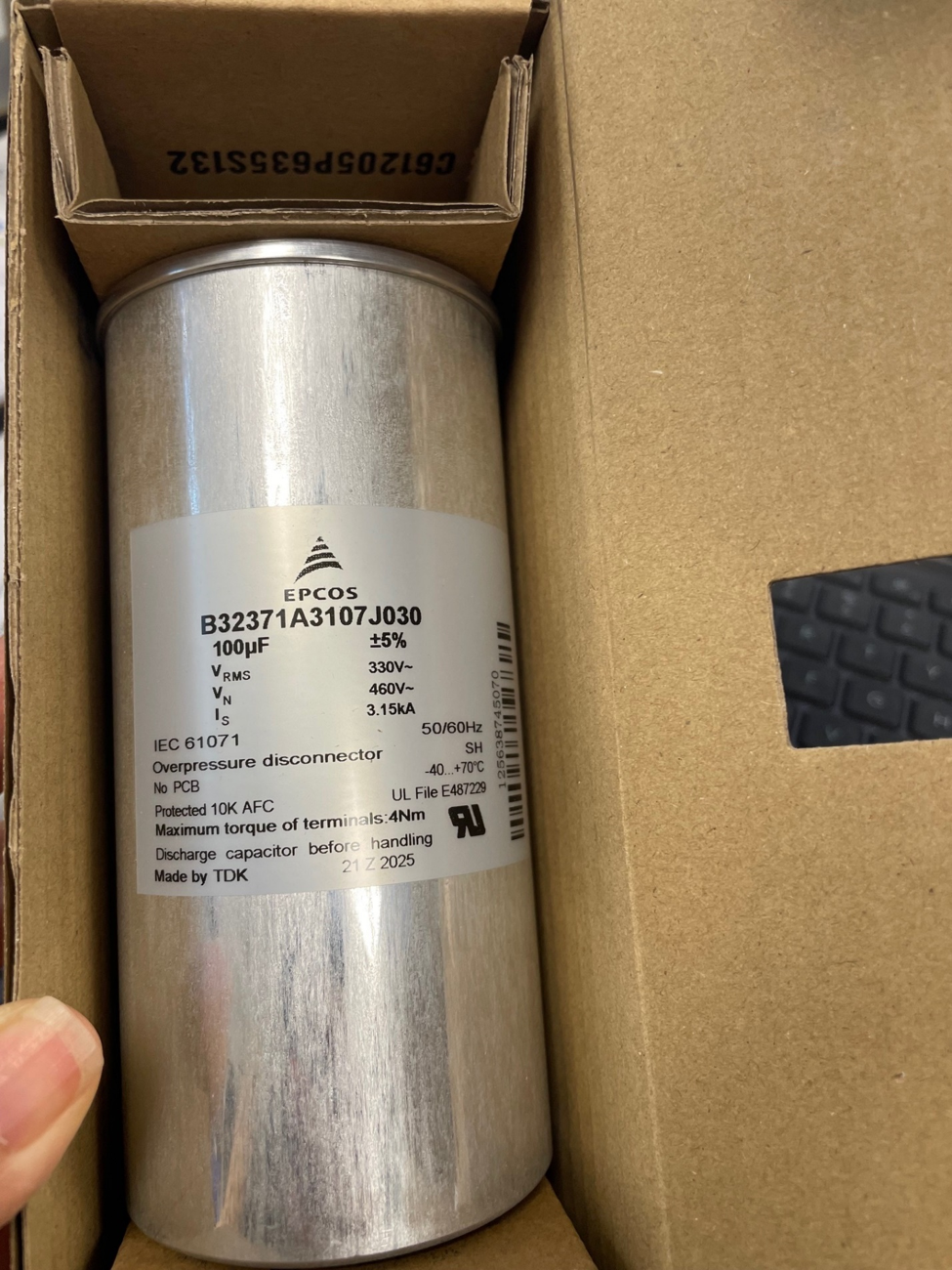

EPCOS B32371A3107J030 FilterCap MKD AC Film Capacitor, 100 µF, 330 V RMS
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
EPCOS B32371A3107J030 is a FilterCap MKD AC film capacitor manufactured by TDK, with 100 µF capacitance, ±5% tolerance, 330 V AC RMS operation, and 460 V AC nominal voltage.
| Brand | EPCOS |
| Manufacturer | TDK |
| Manufacturer Part Number | B32371A3107J030 |
| Product Type | FilterCap MKD AC film capacitor |
| Capacitance | 100 µF |
| Capacitance Tolerance | ±5% |
| RMS Voltage | 330 V AC |
| Nominal Voltage | 460 V AC |
| Surge Current (IS) | 3.15 kA |
| Frequency | 50/60 Hz |
| Standard | IEC 61071 |
| Safety Feature | Overpressure disconnector |
| PCB Marking | No PCB |
| Protection Marking | Protected 10K AFC |
| Marked Temperature Range | -40 to +70 °C |
| Maximum Terminal Torque | 4 Nm |
| UL File | E487229 |
The B32371A3107J030 is specified for general-purpose AC filtering applications. Electrical ratings, mounting, dimensions, and terminal configuration should be checked against the equipment requirements before replacement.
Apexon Supply supports B2B procurement review, replacement sourcing, and technical alignment for EPCOS B32371A3107J030 capacitors.
Send part number B32371A3107J030, required quantity, and application requirements for B2B RFQ support. Most qualified RFQs receive a response or quote within 12 hours.
