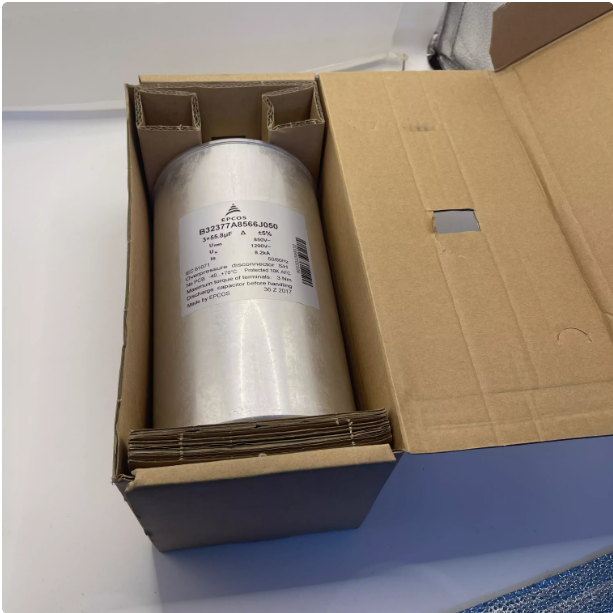

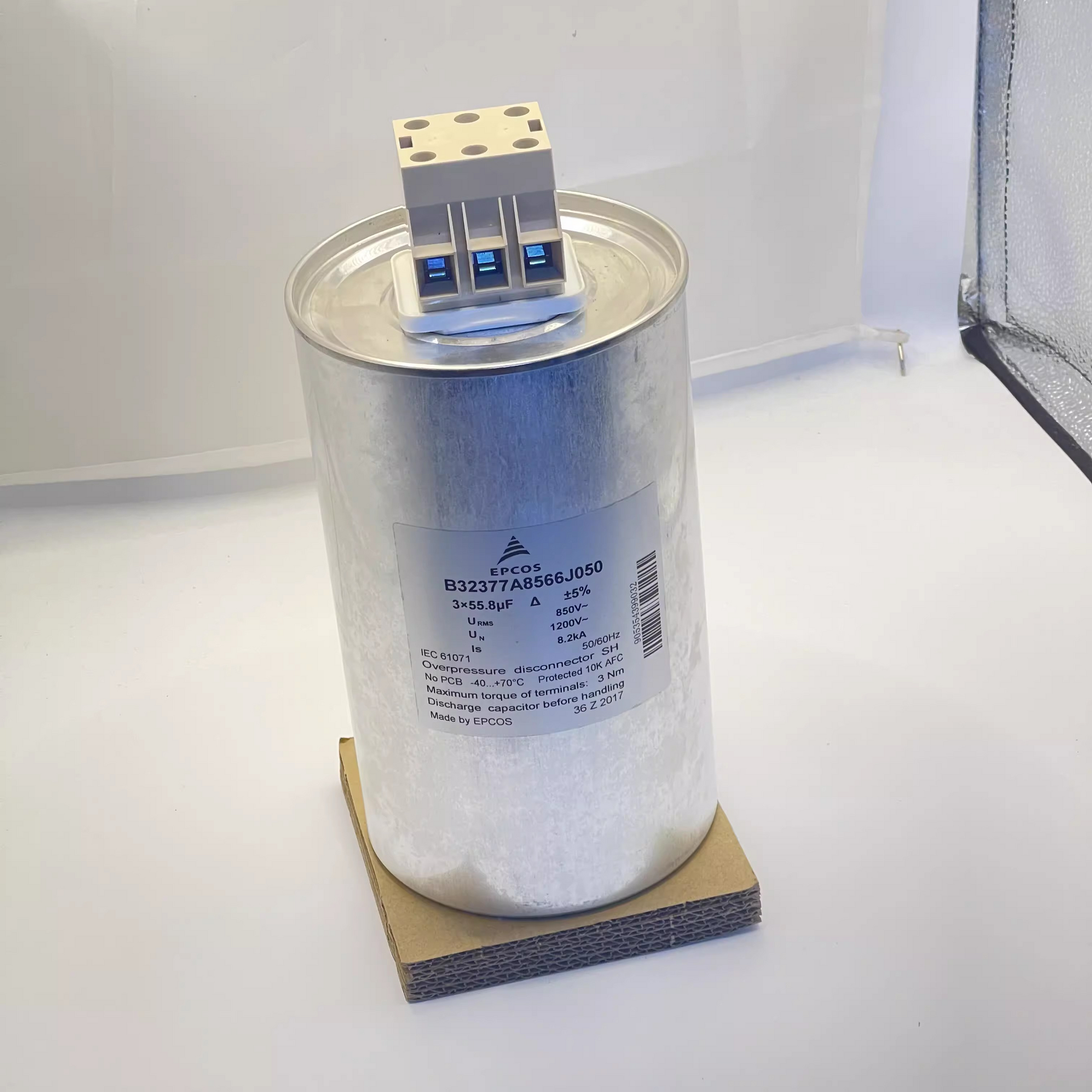

EPCOS B32377A8566J050 MKD AC Power Capacitor, 3 x 55.8 µF, 850V AC
Regular price
$400.00 USD
Regular price
Sale price
$400.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The EPCOS B32377A8566J050 is a professional-grade three-phase MKD AC power capacitor designed for demanding industrial power electronics and filtering applications. Engineered with advanced self-healing properties and an integrated overpressure disconnector, it provides exceptional operational safety and stability under heavy-duty electrical loads. The robust cylindrical aluminum housing features a secure terminal block designed for delta connection configurations.
| Product ID (MPN) | B32377A8566J050 |
| Capacitance | 3 x 55.8 µF |
| Internal Connection | Delta (Δ) |
| Tolerance | ±5% |
| RMS Voltage Rating (U_RMS) | 850 V AC |
| Nominal Voltage (U_N) | 1200 V AC |
| Peak Surge Current (I_s) | 8.2 kA |
| Frequency | 50/60 Hz |
| Safety Features | Overpressure disconnector, Self-healing (SH), Protected 10K AFC |
| Industry Standard | IEC 61071 |
| Maximum Terminal Torque | 3 Nm |
| Environmental Status | No PCB |
| Operating Temperature | -40 to +70 °C |
