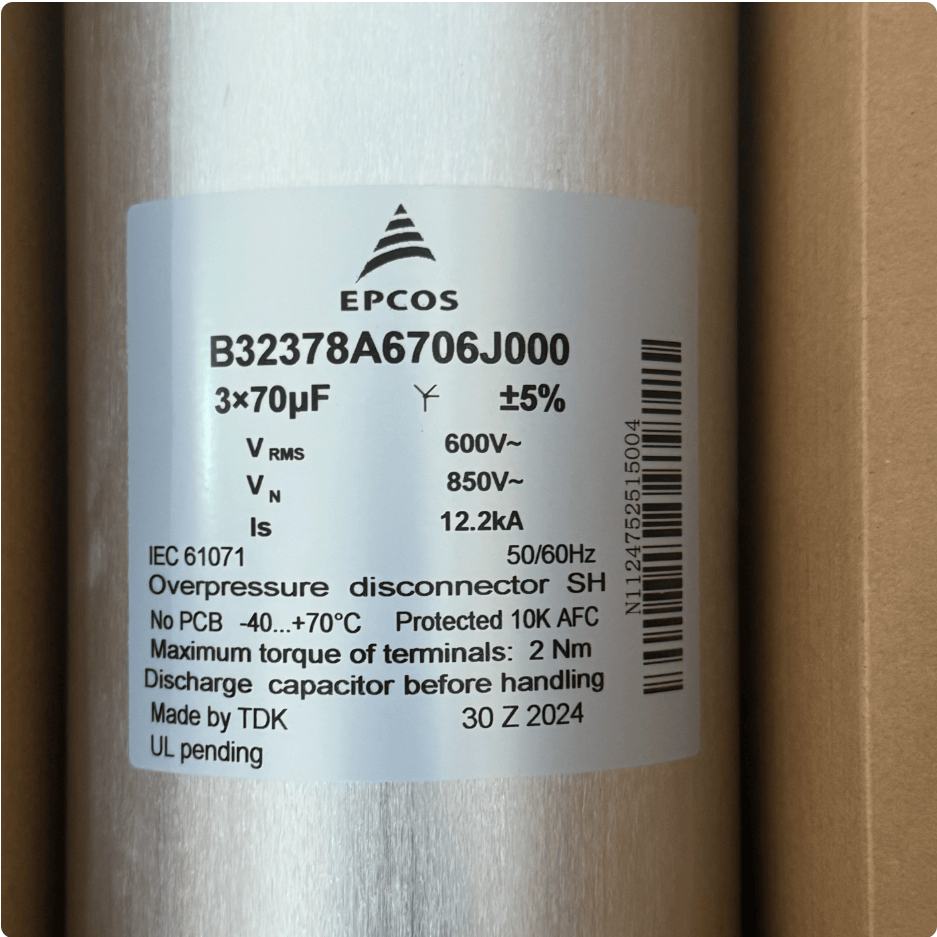

TDK B32378A6706J000 FilterCap MKD AC Three-Phase Capacitor, 3x70 µF, 600 VAC
Regular price
$250.00 USD
Regular price
Sale price
$250.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The TDK B32378A6706J000 is a three-phase AC filter capacitor from the FilterCap MKD AC series, designed for general-purpose power electronic applications such as harmonic filtering, power factor correction (PFC), and motor drive systems. It features a star connection with a neutral terminal, metallized polypropylene film dielectric, and a self-healing overpressure disconnector for safety. The capacitor is housed in a robust aluminum case with an M12 mounting stud and is UL/CSA certified for operation up to 600 VRMS line-to-line.
Key Features
- Three-Phase Star Connection: Four-terminal design (L1, L2, L3, N) for wye configurations.
- Self-Healing Technology: Metallized polypropylene film ensures reliability and long life.
- Safety Device: Integrated overpressure disconnector for fault protection.
- High Current Capability: Designed for high RMS and peak currents in AC applications.
- Low Loss: Very low dissipation factor (tan δ ≤ 1.0 x 10-3).
- Long Service Life: 100,000 hours life expectancy at rated voltage and +85°C hot-spot.
- Safety Certified: UL 810, CSA C22.2 No. 190 certified (File E487229).
- RoHS Compliant: Non-PCB, soft polyurethane resin filling.
Technical Specifications
| Product ID / Ordering Code | B32378A6706J000 |
| Brand | TDK |
| Series / Type | FilterCap MKD AC – Three phases, Type D (Star) |
| Rated Capacitance (CR) per Phase | 3 x 70 µF |
| Capacitance Tolerance | J (±5%) |
| Rated AC Voltage (VRMS Line-to-Line) | 600 VRMS |
| Rated DC Voltage (VRDC) | 850 VDC |
| Maximum RMS Current (Imax) | 40 A |
| Peak Current (Î) | 1300 A |
| Case Diameter (D) | 85 mm |
| Case Height (H) | 350 mm |
| Terminal Type | M5 Screw Clamp (4 terminals: L1, L2, L3, N) |
| Max. Terminal Current | 50 A |
| Weight (Approx.) | 2.2 kg |
| Operating Temperature Range | -40°C to +70°C (Tmax) |
| Maximum Hot-Spot Temperature (Ths) | +85°C |
| Dissipation Factor (tan δ) @ 100 Hz | ≤ 1.0 x 10-3 |
| Life Expectancy | 100,000 h at VRMS, |ΔC/C| ≤ 3% |
| Mounting Torque (Case Stud) | 12 Nm (M12) |
| Mounting Torque (Terminal) | 2 Nm (M5) |
| Safety Standard / File Number | UL 810, CSA C22.2 No. 190 (File E487229) |

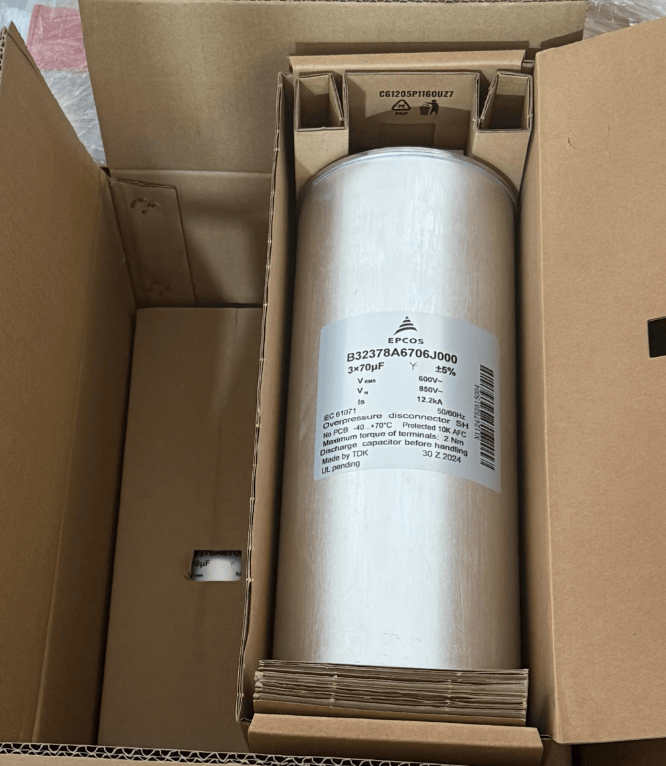

| Packing | 4 units per box |
