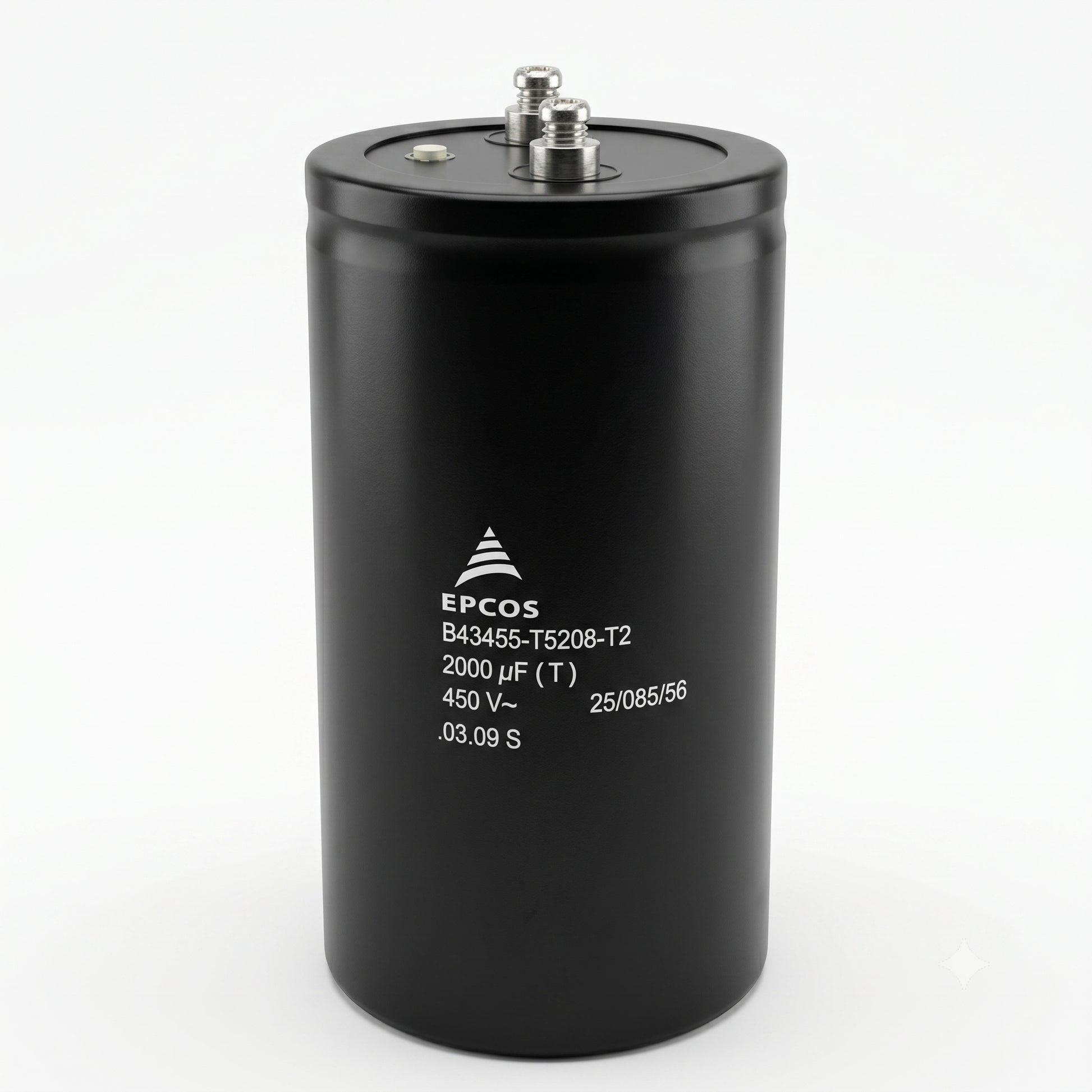

EPCOS B43455-T5208-T2 B43455 Series Aluminum Electrolytic Capacitor, 2000µF, 450VDC
Regular price
$60.00 USD
Regular price
Sale price
$60.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The EPCOS B43455-T5208-T2 is a high-performance aluminum electrolytic capacitor from the B43455 series, featuring robust M5 screw terminals. Engineered for professional power electronics, this capacitor offers a high C*V product in a compact design, making it ideal for applications such as frequency converters, professional power supplies, and uninterruptible power supplies (UPS). It is designed with an all-welded construction for high reliability and superior ripple current capability. The capacitor is housed in a fully insulated aluminum case equipped with a safety vent for overpressure protection.
| Product ID / Order Code | B43455-T5208-T2 |
| Manufacturer | EPCOS (TDK) |
| Series | B43455 |
| Rated Capacitance (C_R) | 2000 µF |
| Rated Voltage (V_R) | 450 V DC |
| Capacitance Tolerance | -10% / +30% (Code T) |
| Technology | Aluminum Electrolytic |
| ESR (max, at 100 Hz, 20°C) | 43 mΩ |
| Max. Ripple Current (I_AC,max at 100Hz, 85°C) | 11.2 A |
| Climatic Category (IEC 60068-1) | 40/085/56 |
| Operating Temperature Range | -40 °C to +85 °C |
| Useful Life | 10,000 h (at V_R; I_AC,max; 85 °C) |
| Dimensions (Diameter x Length) | 64.3 mm x 82.0 mm |
| Terminal Style | M5 Screw Terminals with Washers |
| Construction | All-welded, charge-discharge proof, polar |
| Case | Aluminum with insulating sleeve (PVC) |
| Safety Feature | Overpressure relief vent |
