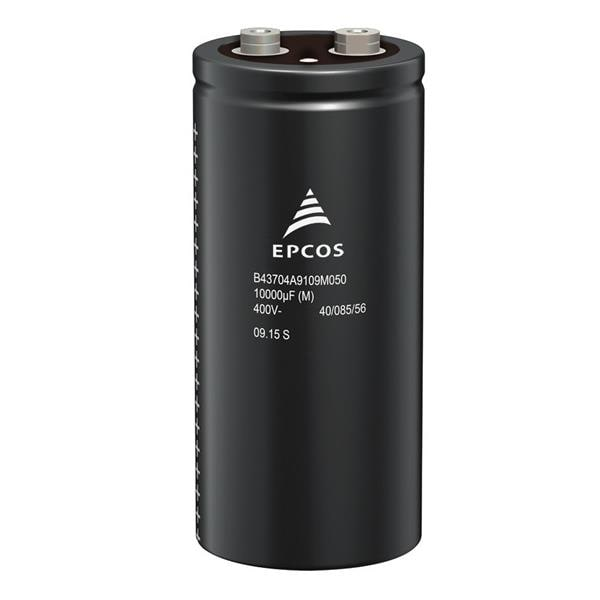

EPCOS B43456-A5109-M003 B43456 Series Aluminum Electrolytic Capacitor, 10000 µF, 450 V
Regular price
$100.00 USD
Regular price
Sale price
$100.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The EPCOS B43456-A5109-M003 by TDK is an industrial-grade aluminum electrolytic capacitor engineered for high-reliability energy storage and filtering applications. Featuring a massive 10000 µF capacity and a high 450 V rating, this chassis-mounted component is optimized for uninterruptible power supplies (UPS), frequency converters, and general-purpose inverter systems. Its robust radial can design with heavy-duty screw terminals ensures exceptional mechanical stability and reliable high-current performance in challenging power electronics environments.
| Product ID (MPN) | B43456-A5109-M003 |
| Manufacturer | TDK / EPCOS |
| Capacitance | 10000 µF |
| Voltage Rating | 450 V |
| Tolerance | ±20% |
| ESR (Equivalent Series Resistance) | 6 mOhm @ 100 Hz |
| Impedance | 7 mOhms |
| Ripple Current (@ Low Frequency) | 25 A @ 100 Hz |
| Polarization | Polar |
| Lifetime @ Temperature | 12000 Hrs @ 85°C |
| Operating Temperature Range | -40°C to +85°C |
| Applications | General Purpose |
| Mounting Type | Chassis Mount |
| Package / Case | Radial, Can - Screw Terminals |
| Size / Dimension | 3.583" (91.00 mm) Diameter |
| Height - Seated (Max) | 5.728" (145.50 mm) |
| Lead Spacing | 1.248" (31.70 mm) |
