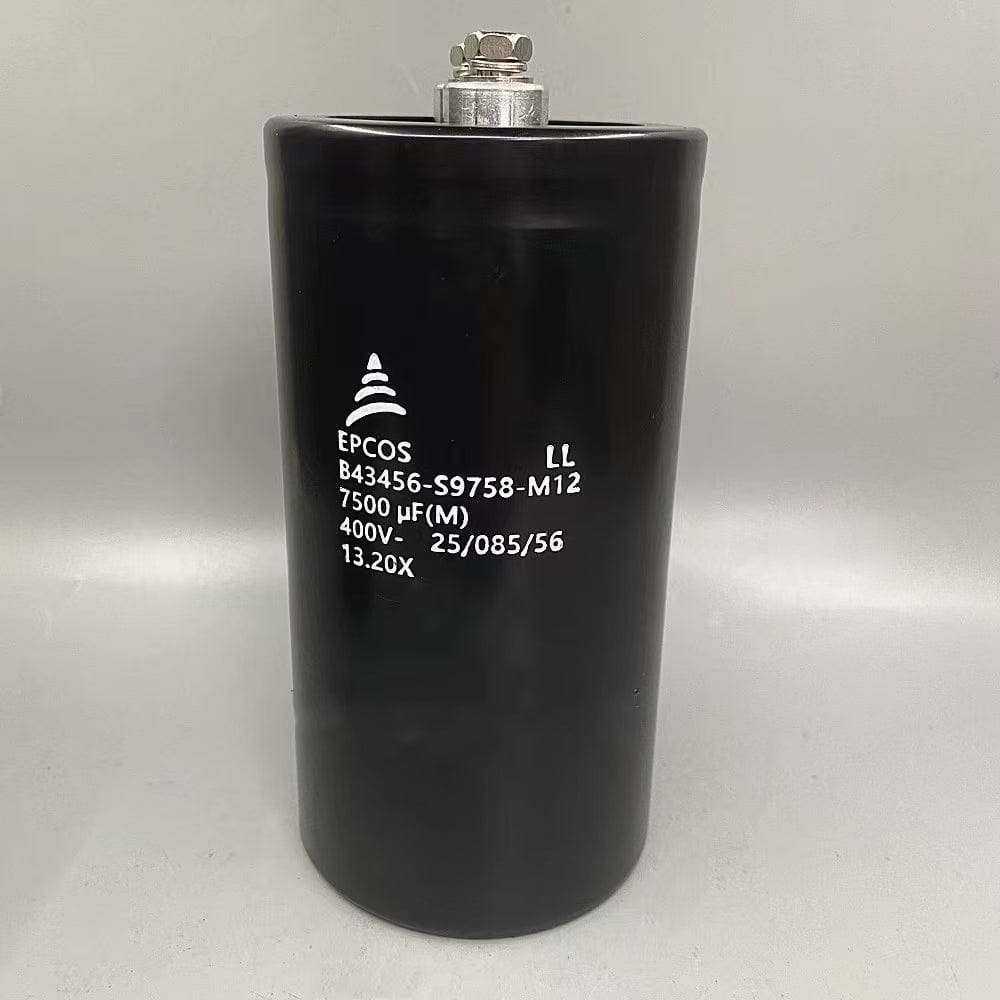

EPCOS B43456-S9758-M12 400V 7500uF Capacitor, Aluminum Electrolytic, High Ripple Current
Regular price
$60.00 USD
Regular price
Sale price
$60.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The EPCOS B43456-S9758-M12 is a high-performance, long-life (LL) aluminum electrolytic capacitor designed for professional power electronics. Part of the renowned B43456 series (now under TDK), this component features a screw terminal construction and is engineered for high ripple current capability. Its robust "all-welded" internal design ensures superior reliability and low contact resistance, making it ideal for industrial frequency converters, solar inverters, and uninterruptible power supplies (UPS).
| Product ID | B43456-S9758-M12 |
| Manufacturer | EPCOS / TDK |
| Series | B43456 (Long Life Grade) |
| Capacitance | 7500 µF |
| Rated Voltage (Vr) | 400 V DC |
| Capacitance Tolerance | ±20% (M) |
| Life Grade | LL (Long Life) |
| Climatic Category | 25/085/56 |
| Lower Category Temp. | -25 °C |
| Upper Category Temp. | +85 °C |
| Terminal Type | Screw Terminals (M5/M6) |
| Case Construction | Aluminum Can with insulating sleeve |
| Mounting Type | Chassis Mount (via clamps or threaded stud) |
| Application Highs | High Ripple Current, Low ESR, Heavy Duty |
| Damp Heat Test Duration | 56 Days |
| Charge-Discharge Proof | Yes |
