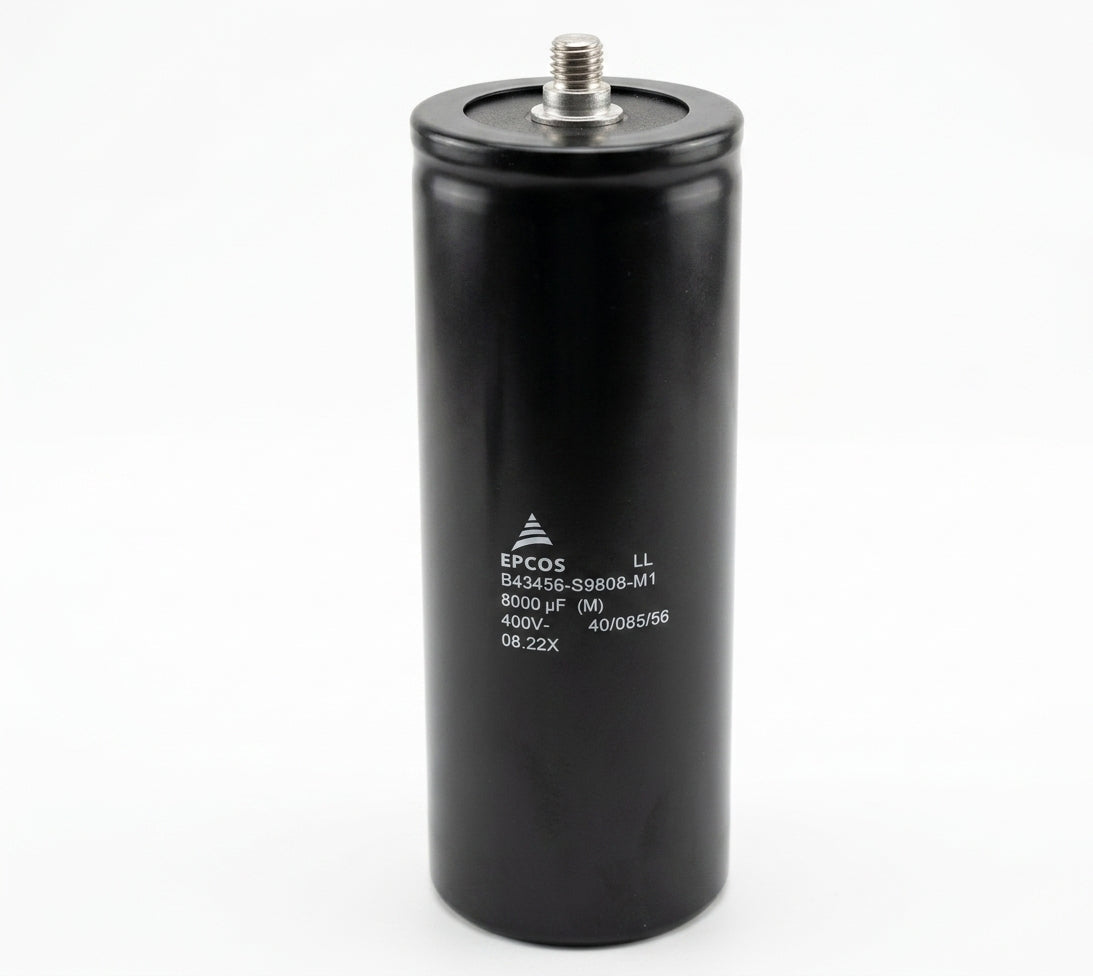

EPCOS B43456-S9808-M1 B43456 Series Aluminum Electrolytic Capacitor, 8000µF, 400VDC
Regular price
$70.00 USD
Regular price
Sale price
$70.00 USD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Secure checkout via Credit Cards, PayPal & Bank Wire (T/T)
The EPCOS B43456-S9808-M1 is a high-performance aluminum electrolytic capacitor from the B43456 series, specifically designed for applications requiring outstanding ripple current capability. Featuring rugged screw terminals, this component is ideal for professional power electronics such as frequency converters, professional power supplies, and uninterruptible power supplies (UPS). It boasts an all-welded construction for enhanced reliability and is housed in a compact, fully insulated aluminum case with an integrated safety vent for overpressure protection. This long-life capacitor ensures durable performance in demanding industrial environments.
| Product ID / Order Code | B43456-S9808-M1 |
| Manufacturer | EPCOS (TDK) |
| Series | B43456 |
| Rated Capacitance (C_R) | 8000 µF |
| Rated Voltage (V_R) | 400 V DC |
| Capacitance Tolerance | ±20% (Code M) |
| Technology | Aluminum Electrolytic |
| ESR (max, at 100 Hz, 20°C) | 14 mΩ |
| Max. Ripple Current (I_AC,max at 100Hz, 85°C) | 34.0 A |
| Climatic Category (IEC 60068-1) | 40/085/56 |
| Operating Temperature Range | -40 °C to +85 °C |
| Useful Life | 12,000 h (at V_R; I_AC,max; 85 °C) |
| Dimensions (Diameter x Length) | 76.9 mm x 195.7 mm |
| Terminal Style | M5 Screw Terminals |
| Construction | All-welded, charge-discharge proof, polar |
| Case | Aluminum with insulating sleeve (PVC) |
| Safety Feature | Overpressure relief vent |
